Description
Hydraulic fittings kit for plumbing a Simrad reversible autopilot pump into the power-steering system of a Mercury Verado outboard. Verado engines are supplied with a factory hydraulic steering circuit, and this kit provides the adapters and the low-pressure return line needed to tee an autopilot drive pump into that circuit correctly.

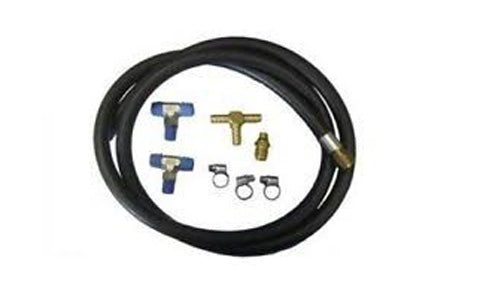

Supplied as Navico part 21116272 and specified for the Simrad PUMP-1 to PUMP-5 drive units. The kit contains a 1.9 m (6 ft) 3/8-inch return hose with SAE coupling, two ORFS tee fittings, a barbed tee, an SAE flare adapter for the pump return port, and three corrosion-resistant hose clamps.
The pressure hoses between pump and engine are not included and are ordered separately as a Verado hose kit in the length required for the run.
PRODUCT DETAILS
- Adapts a Simrad reversible autopilot pump to Mercury Verado power steering
- Specified for the Simrad PUMP-1 to PUMP-5 drive units
- Includes a 1.9 m (6 ft) 3/8-inch return hose with SAE coupling
- Two ORFS tee fittings, a barbed tee and an SAE flare return adapter
- Three corrosion-resistant hose clamps; pressure hoses ordered separately
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Application
| Application | Connects a Simrad reversible autopilot pump to Mercury Verado power steering |
Compatibility
| Compatible pumps | Simrad PUMP-1, PUMP-2, PUMP-3, PUMP-4 and PUMP-5 |
Kit contents
| Return hose | 1 x 1.9 m (6 ft), 3/8" ID, SAE 5/8" coupling |
| Fittings | 2 x tee ORFS 04 x ORFS 04 x SAE 7/16"-20 UNF; 1 x tee with 3/8" barbs; 1 x SAE 5/8"-18 to 7/16"-20 UNF flare adapter |
| Clamps | 3 x non-corrosive hose clamps, 5/16" - 9/16" |
