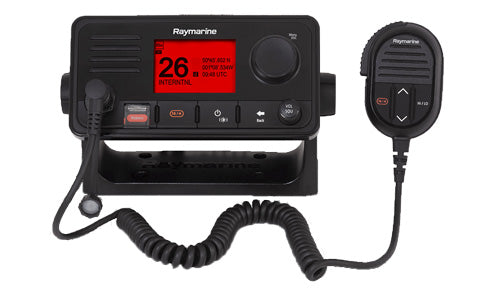

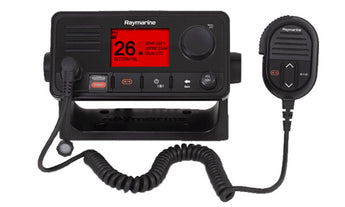

Raymarine Ray63 VHF Integrated GPS
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Ray63 combines a built-in 72-channel GPS receiver with the full-function features of Raymarine's VHF line, including a front Fistmic and a rear second-station connection. It transmits at a selectable 1W or 25W across all US, International and Canadian VHF marine bands, and the internal GNSS engine (GPS, GLONASS, Beidou with WAAS, EGNOS and MSAS SBAS) provides accurate position for DSC distress alerting without an external GPS source.
The Ray63 supports Raymarine's optional wireless handset, connected through the wireless hub (adaptor R70739), so you can take full radio control anywhere on board. Built to IPX6 and IPX7, it is at home at an exposed helm. An external passive GPS antenna can be added via the TNC port. Connect SeaTalkng / NMEA 2000 to a compatible Raymarine multifunction display to share DSC and position across the network, with NMEA 0183 and an audio (RCA) output for installation flexibility.
PRODUCT DETAILS
- Full-function Class D DSC VHF with 25W / 1W transmit power
- Built-in 72-channel GPS (GPS, GLONASS, Beidou) for DSC position
- Front Fistmic plus rear connection for a second station
- Optional wireless handset via wireless hub (adaptor R70739)
- IPX6 and IPX7 waterproof construction
- SeaTalkng / NMEA 2000 connectivity to Raymarine MFDs
- Ray63 base station
- Fistmic handset
- Sun cover
- Panel mount gasket
- Mounting bracket with knobs
- Panel mount fixings
- SeaTalkng spur cable and blanking plug
- Documentation
No compatible transducers listed for this product.
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 12 S
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Physical
| Operating temperature | -20C (-4F) to +60C (140F) |
| Storage temperature | -25C (-13F) to +70C (158F) |
| Relative humidity | 95% |
| Waterproofing | IPX6 & IPX7 |
| Dimensions (panel mount) | 199 mm (W) x 143 mm (H) x 98.5 mm (front) |
| Dimensions (bracket mount) | 226 mm (W) x 133 mm (H) x 204.6 mm (D) |
Power
| Nominal supply voltage | 12 V dc (Reverse polarity and over voltage protection) |
| Operating voltage range | 9 V dc to 16 V dc |
| Current consumption | Less than 6 A at high power (13.6 V); Standby 600 mA; Receive 2 A |
Transmitter
| TX channels | All available US, International and Canadian VHF marine bands |
| TX frequency range | 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| TX power output | Low power 1 W; High power 25 W |
| Channel spacing | 25 kHz |
| Frequency stability | +/- 1.5 ppm |
| Maximum deviation | +/- 5 kHz |
| Spurious emissions | Better than -36 dBm at 25 W (Less than 0.25 uW) |
| Antenna impedance | 50 Ohms (typical) |
Receiver
| Receiver type | Double conversion super heterodyne |
| RX frequency range | 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Sensitivity | Better than 1 microvolt EMF @ 20dB SINAD |
| Squelch sensitivity | Less than -2 dBuV EMF |
| Adjacent channel selectivity | More than 70 dB |
| Spurious response rejection | More than 70 dB |
| Intermodulation rejection | More than 68 dB |
| Audio distortion | Less than 10% |
| Receiver sensitivity | Distance 119dBm (0.25uV) @ 12dB SINAD; Local 110dBm (0.7uV) @ 12dB SINAD (typical) |
GPS
| GNSS channels | 72 |
| GNSS compatibility | GPS, GLONASS, Beidou |
| SBAS compatibility | WAAS, EGNOS, MSAS |
| Cold start | < 2 minutes |
| Position accuracy | Without SBAS <= 15 m 95% of the time; With SBAS <= 5 m 95% of the time |
General
| DSC class | Class D |
| Connections | 1 x NMEA 0183; 1 x SeaTalk NG / NMEA 2000; 1 x Front Fistmic connection; 1 x Rear connection for 2nd station; 1 x Audio (RCA); 1 x GNSS (GPS) antenna (TNC) |
| AIS receiver | No (Ray63) |
| Integrated GPS | Yes; internal ceramic chip antenna, external passive antenna via TNC supported |
Audio
| Base station speaker power output | 2.5 W (8 Ohm) |
| Fistmic speaker power output | 1 W (16 Ohm) |
| External speaker power output | 5 W (8 Ohm) |
| Handset speaker power output | 1 W (16 Ohm) |
