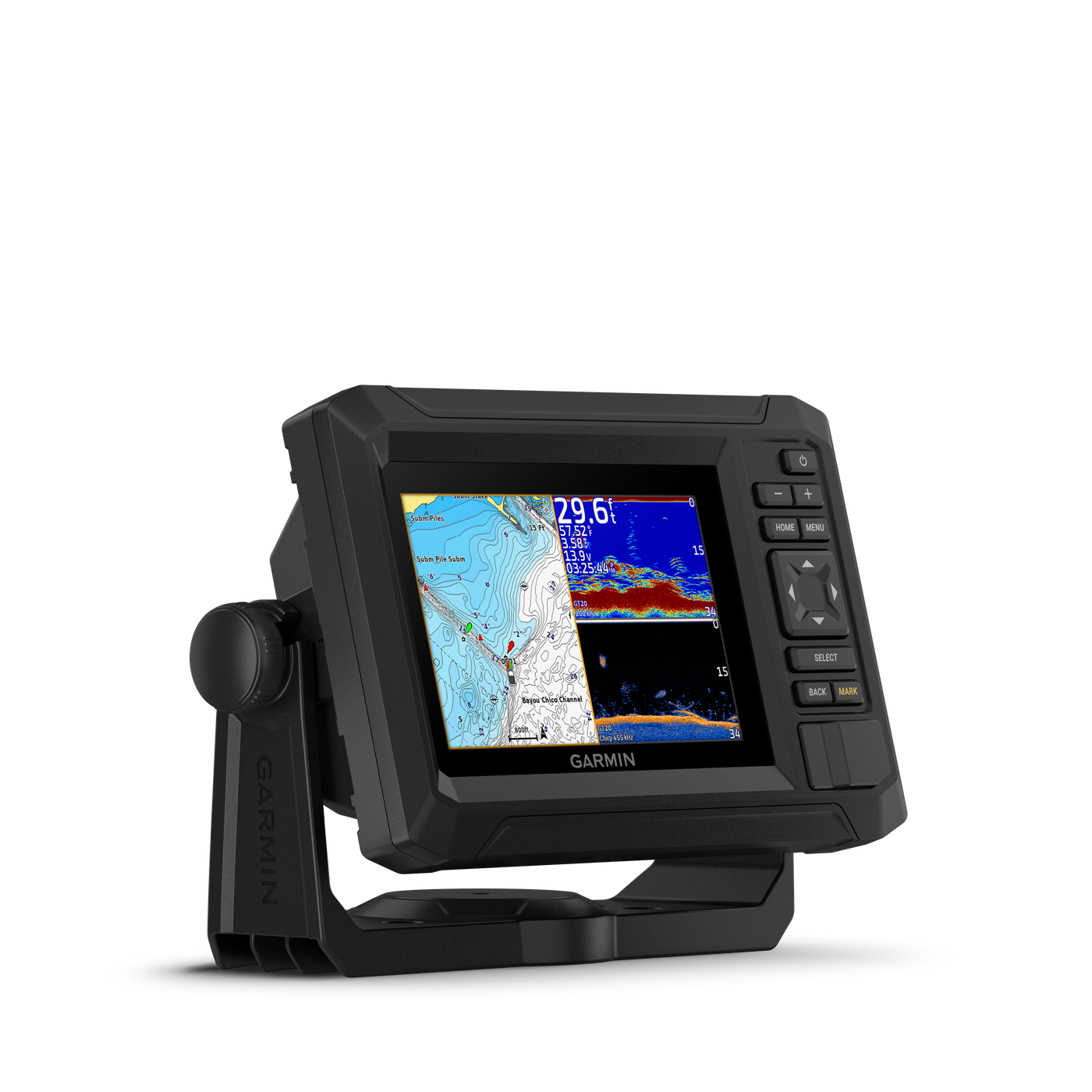

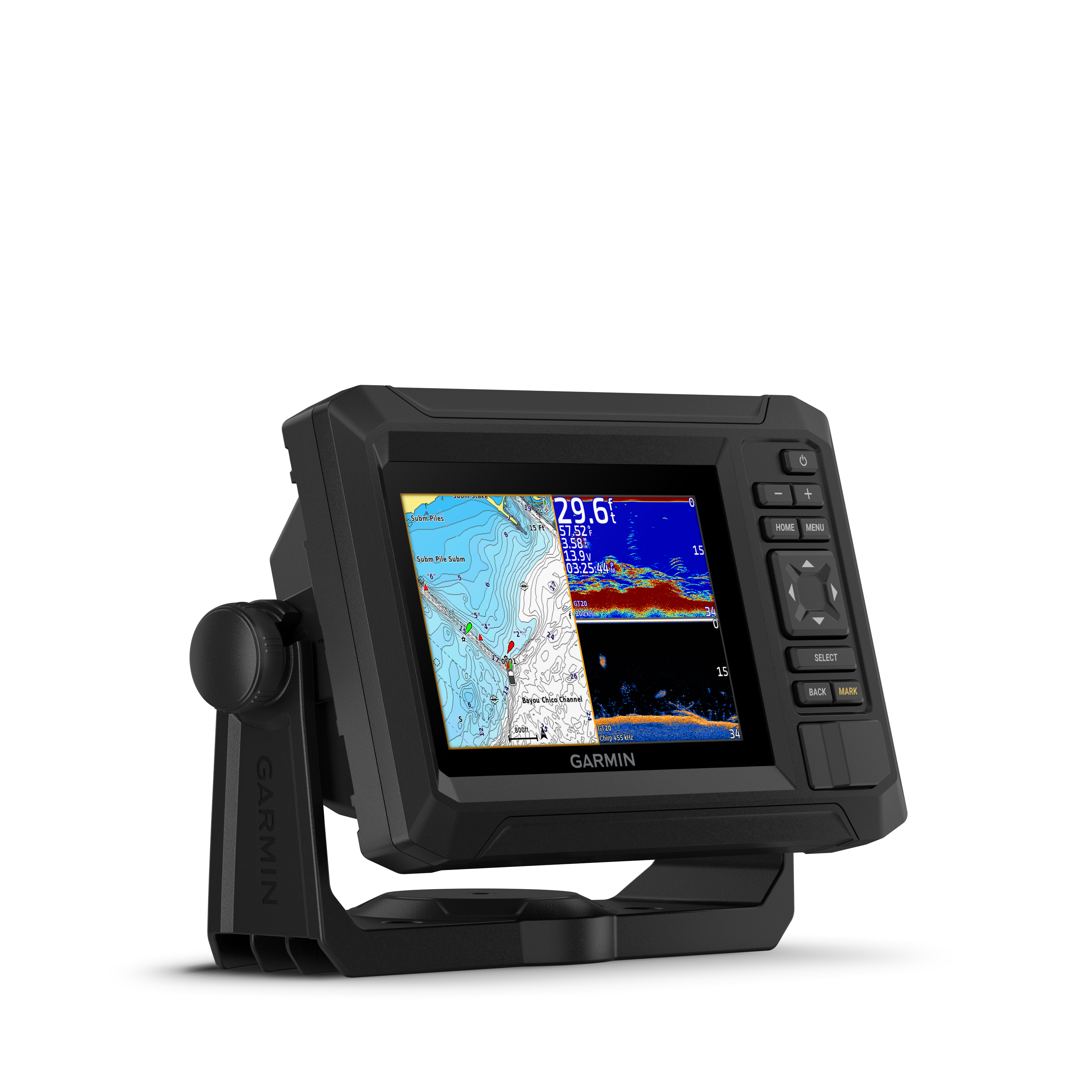

Garmin ECHOMAP™ UHD2 52cv with GT20-TM Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The ECHOMAP UHD2 52cv pairs a compact, sunlight-readable 5-inch keyed display with the included Garmin GT20-TM transom-mount transducer, so it is ready to fish straight from the box. Garmin ClearVu and traditional CHIRP sonar reveal near-photographic detail of structure and fish below the boat, while built-in high-sensitivity GPS keeps you precisely positioned. Quickdraw Contours lets you map your own waters in HD, and the unit is compatible with Garmin Navionics+ and Navionics Vision+ premium charts. Built-in Wi-Fi connects the chartplotter to the ActiveCaptain app for charts, smart notifications and software updates, while NMEA 2000 connectivity allows integration with sensors and engine data. The IPX7-rated housing withstands spray and rain, making this an ideal all-in-one package for small-boat anglers.
PRODUCT DETAILS
- 5-inch keyed (button) chartplotter with bright, sunlight-readable WVGA display
- Supplied with the Garmin GT20-TM transom-mount transducer, ready to fish out of the box
- Garmin ClearVu and traditional CHIRP sonar (50/77/83/200 kHz) at 500 W RMS
- Built-in high-sensitivity GPS plus Quickdraw Contours personal HD mapping
- Built-in Wi-Fi pairs with the ActiveCaptain app for charts, alerts and updates
- Compatible with Garmin Navionics+ and Navionics Vision+ premium charts
- NMEA 2000 connectivity and IPX7 waterproof rating
- ECHOMAP UHD2 52cv chartplotter
- Garmin GT20-TM transom-mount transducer
- Tilt/swivel bail mount with knobs
- Flush-mount kit and hardware
- Protective sun cover
- Power cable
- Documentation
No exploded diagram available for this product.
No compatible products found.
Display
| Display size | 127.3 mm (5 in.) diagonal; 109 x 65.8 mm viewable |
| Display resolution | WVGA, 800 x 480 pixels |
| Control type | Keyed (button) control |
Physical
| Dimensions (W x H x D), chartplotter only | 188 x 122 x 61.5 mm |
| Weight (chartplotter only) | 0.5 kg (1.1 lb.) |
| Material | Polycarbonate plastic |
Electrical
| Input voltage | 9 to 18 Vdc |
| Fuse | 3 A, 125 V fast-acting |
| Max. power draw | 8.4 W |
Sonar
| Sonar technology | Traditional CHIRP + Garmin ClearVu CHIRP (cv) |
| Sonar frequencies | Traditional: 50/200, 77/200, 83/200 kHz; Single Channel CHIRP: 40 to 250 kHz; Garmin ClearVu CHIRP: 260/455/800 kHz |
| Sonar transmit power (RMS) | 500 W (CHIRP and Garmin ClearVu CHIRP) |
| Sonar depth | 701 m (2,300 ft.) at 77 kHz |
| Included transducer | Garmin GT20-TM transom-mount (traditional CHIRP + ClearVu) |
Connectivity
| Wi-Fi | 2.4 GHz Wi-Fi (ActiveCaptain app connectivity) |
| NMEA 2000 | Yes |
| Memory card | 1 microSD card slot; up to 1 TB (exFAT) |
GPS/GNSS
| GPS | Built-in high-sensitivity GPS |
Environmental
| Water rating | IEC 60529 IPX7 |
| Temperature range | -15 to 55 C |
| Compass-safe distance | 7.62 cm (3 in.) |
General
| Mapping | Compatible with Garmin Navionics+ and Garmin Navionics Vision+ |
