Garmin

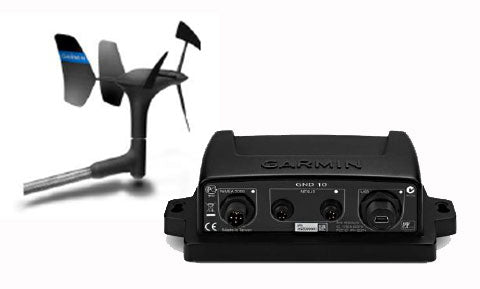

Garmin gWind Mast Head Transducer with GND10 Black Box and 25m mast cable
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
This gWind system supplies a Garmin masthead wind transducer together with a GND 10 black box bridge and a 25 m mast cable, giving sailors a complete wind-sensing package that links Nexus and Garmin equipment. The gWind uses optical sensor technology and a twin-fin body with a three-bladed propeller, providing accurate true wind speed in light airs and a stable wind angle.
It measures wind from 0.9 to 90 knots with angle accuracy better than two degrees and speed accuracy within five percent. The included GND 10 bridge lets the gWind share data with Garmin GMI and GNX marine instruments and compatible chartplotters over NMEA 2000, and allows Nexus sail instruments and Garmin gear to work together on the same network.
PRODUCT DETAILS
- gWind masthead wind transducer with optical twin-fin sensor
- Supplied with a GND 10 bridge and a 25 m mast cable
- Three-bladed propeller for accurate true wind speed in light airs
- Wind speed range 0.9 to 90 knots
- Angle accuracy better than two degrees, speed within five percent
- GND 10 bridges Nexus and Garmin instruments over NMEA 2000
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Garmin GMI 20 Marine Instrument Display with Colour LCD 4 inch
Garmin GNX 20 Marine Instrument with Standard Monochrome LCD 4 inch
Garmin GNX 21 Marine Instrument with Inverted Monochrome LCD 4 inch
Garmin GNX Wind Marine Instrument LCD 4 inch
Garmin GNX 120 7 inch Large Format Marine Instrument Display
Garmin GNX 130 10 inch Large Format Marine Instrument Display
General
| Product type | Masthead wind transducer system (gWind, Twin Fin) supplied with a GND 10 bridge and 25 m mast cable |
| Mounting | Masthead, horizontal surface |
| Included bridge | Garmin GND 10 black box bridge between the Nexus network and NMEA 2000 |
Wind
| Measurement method | Optical sensor with digital PWM output; twin-fin body and three-bladed propeller |
| Wind speed range | 0.9-90 knots (0.5-50 m/s) |
| Angle accuracy | Better than plus/minus 2 degrees |
| Speed accuracy | Plus/minus 5 percent |
Physical
| Mast cable length | 25 m |
| Power supply | 12 V DC (10-16 V), 0.24 W (transducer) |
| Operating temperature | -5 to +70 C |
Compatibility
| Compatible systems | The included GND 10 bridge lets the gWind transducer share data with Garmin GMI and GNX marine instruments and compatible Garmin chartplotters over NMEA 2000, and lets Nexus sail instruments and Garmin equipment work together. |
