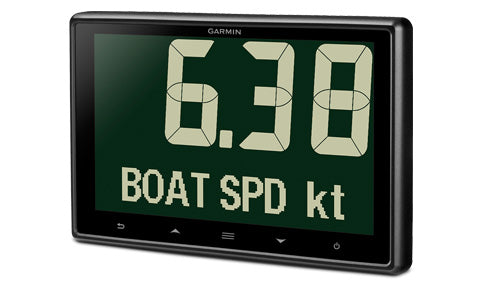

Garmin GNX 120 7 inch Large Format Marine Instrument Display
£820.00
/
Tax included.
Shipping calculated at checkout.
010-01395-00
The Garmin GNX 120 is a 7-inch large-format marine instrument for serious sailors. Its high-precision glass-bonded ultra-glow LCD displays more than 50 wind, sea and vessel parameters over NMEA 2000.
✓
Available for collection or delivery in ~2 days
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GNX 120 is a 7-inch large-format instrument built for serious sailors who need data they can read from anywhere in the cockpit. Its high-precision glass-bonded monochrome ultra-glow LCD overlays high-contrast white or colour digits on a black background, and the anti-fog display stays clear in changing conditions. The GNX 120 shows more than 50 marine and boat parameters covering wind, sea and vessel conditions, with five display configurations to choose from, including single, dual and triple function layouts plus Gauge and Graph modes. It is NMEA 2000 certified and shares sailing data seamlessly with other NMEA 2000-enabled Garmin devices. A slim 17 mm profile, simple 44 mm flush-mount cutout and rugged polycarbonate case rated to IPX7 make it a clean, durable addition to any sailing system.
PRODUCT DETAILS
- 7-inch large-format marine instrument designed for serious sailors
- High-precision glass-bonded monochrome ultra-glow LCD with high-contrast white or colour digits
- Anti-fog display with white or colour digits on a black background for clear visibility
- Displays more than 50 marine and boat parameters for wind, sea and vessel conditions
- Five display configurations including single, dual and triple function, plus Gauge and Graph mode
- NMEA 2000 certified for easy data sharing with other compatible Garmin devices
- Slim 17 mm profile with a 44 mm flush-mount cutout
- Rugged polycarbonate case rated to IPX7
- GNX 120 large-format marine instrument
- Flush-mount gasket
- Flush-mount template
- Threaded rods and thumb nuts
- NMEA 2000 drop cable
- Documentation
No exploded diagram available for this product.
Garmin gWind Race Transducer Only
Garmin gWind Transducer Only
Garmin gWind Wireless Transducer Only
Garmin gWind Mast Head Transducer with GND10 Black Box and 25m mast cable
Garmin gWind Race Transducer with Nexus Adapter
Garmin gWind Race Vertical Mast Head Transducer with GND10 Black Box and 25m mast cable
Garmin gWind Transducer with Nexus Adapter
No compatible products found.
Display
| Display Type | High-precision glass-bonded monochrome ultra-glow LCD; white or colour digits on black |
| Format | 7 in large format |
| Display Size (W x H) | 150 x 83 mm (5.9 x 3.27 in) |
| Display Configurations | Five configurations: single, dual and triple function, plus Gauge and Graph mode |
Connectivity
| Network | NMEA 2000 certified (powered and data via network) |
| NMEA 2000 LEN | 3 (at 9 Vdc) |
Physical
| Dimensions (W x H x D) | 181 x 115 x 17 mm (7.13 x 4.53 x 0.7 in) |
| Weight | 380 g (13.4 oz) |
| Cutout | 44 mm (1 3/4 in) hole saw |
| Case Material | Polycarbonate plastic |
| Compass-Safe Distance | 0 mm (0 in) |
Electrical
| NMEA 2000 Input Voltage | 9 to 16 Vdc |
| Power Usage | 1.1 W maximum |
Environmental
| Water Rating | IEC 60529 IPX7 (up to 1 m for 30 min) |
| Temperature Range | -15 to 70 C (5 to 158 F) |
No videos available for this product.
How big is the GNX 120 display?
The GNX 120 is a 7-inch large-format instrument. The active display area measures 150 x 83 mm (5.9 x 3.27 in), and the unit is 181 x 115 x 17 mm overall.
What display configurations does the GNX 120 offer?
Five: single, dual and triple function layouts, plus Gauge and Graph modes. It can show more than 50 marine and boat parameters.
How is the GNX 120 powered?
It is NMEA 2000 certified and draws both power and data from the network. It has a NMEA 2000 LEN of 3 and a maximum draw of 1.1 W.
What is the difference between the GNX 120 and GNX 130?
Both share the same ultra-glow LCD technology. The GNX 120 is the 7-inch model (display 150 x 83 mm); the GNX 130 is the larger 10-inch model (display 207 x 116 mm).
Is the GNX 120 waterproof?
Yes. It is rated to IEC 60529 IPX7 and withstands incidental immersion in up to 1 m of water for 30 minutes.
