Garmin
Garmin gWind Race Transducer Only
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

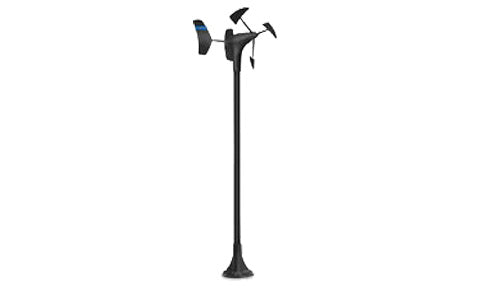

This is the Garmin gWind Race masthead wind transducer supplied on its own as a replacement head. Designed for racing sailboats, it adds a 1 m straight pole that raises the sensor above the mast to reduce turbulence errors. The twin-fin design with a 3-bladed propeller and optical sensor reading delivers accurate True Wind Speed in light air and a stable True Wind Angle.
It mounts on a horizontal surface at the mast head and includes a 25 m cable. A Garmin GND 10 black box bridge is required so the Nexus Network and compatible Garmin chartplotters and instruments can share the wind data over NMEA 2000.
Supplied as the transducer only, this configuration makes it straightforward to replace an existing gWind Race sensor.
PRODUCT DETAILS
- Replacement gWind Race masthead transducer (transducer only)
- 1 m straight pole raises the sensor above mast turbulence
- Twin-fin design with 3-bladed propeller and optical reading
- Accurate True Wind Speed in light air, stable True Wind Angle
- 25 m cable; requires a GND 10 bridge for NMEA 2000
No exploded diagram available for this product.
No compatible transducers listed for this product.
Garmin GND 10 Black Box Bridge between gWind and NMEA2000
Garmin GMI 20 Marine Instrument Display with Colour LCD 4 inch
Garmin GNX 20 Marine Instrument with Standard Monochrome LCD 4 inch
Garmin GNX 21 Marine Instrument with Inverted Monochrome LCD 4 inch
Garmin GNX Wind Marine Instrument LCD 4 inch
Garmin GNX 120 7 inch Large Format Marine Instrument Display
Garmin GNX 130 10 inch Large Format Marine Instrument Display
General
| Sensor type | Masthead wind transducer for racing sailboats (replacement head only) |
| Measurement | Apparent wind speed and angle via twin-fin design with 3-bladed propeller and optical sensor reading |
| Race pole | 1 m (3.3 ft) straight pole raises the transducer above the mast to reduce turbulence errors |
| Mounting | Mast head, horizontal surface |
Wind
| Wind speed range | 0.9 to 90 kn (0.5 to 50 m/s) |
| Angle accuracy | Better than +/- 2 degrees |
| Speed accuracy | +/- 5% |
Physical
| Cable length | 25 m |
Compatibility
| Compatible systems | Connects to the Nexus Network; a Garmin GND 10 black box bridge is required to share wind data with NMEA 2000 and compatible Garmin chartplotters and GMI/GNX instruments. |
