Garmin
AIRMAR® TM265LH - 010-12378-20
£2,069.99
/
Tax included.
Shipping calculated at checkout.
010-12378-20

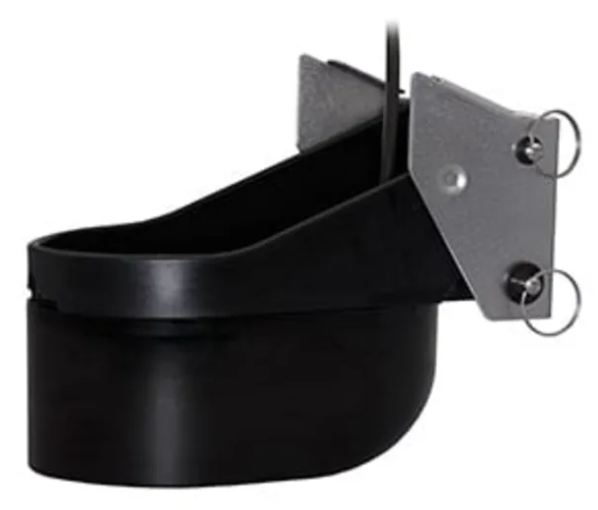

The Garmin TM265LH is a 1 kW transom-mount CHIRP transducer with dual 42-65 kHz and 130-210 kHz bands. It sounds to 3,000 ft, mounts on a stainless-steel bracket and works with a built-in 1 kW CHIRP sounder or a GSD 26 / GSD 25 module.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin TM265LH is the transom-mount member of the 265-element CHIRP family and the only 1 kW transom-mount CHIRP transducer in the range. It sweeps a 42 to 65 kHz low band and a 130 to 210 kHz high band, returning precise target separation and clean bottom definition across the whole range, rather than relying on two fixed frequencies.
With 1 kW of transmit power the low band sounds to 3,000 ft and the high band to 1,000 ft, while the narrow beam at both frequencies keeps image detail sharp. The transducer mounts easily on the transom using its stainless-steel bracket, suiting transom angles of 3 to 21 degrees on boats up to 10 m, and is compatible with all hull materials. An integral depth and fast-response temperature sensor is built in. The TM265LH runs on Garmin chartplotters with a built-in 1 kW CHIRP sounder, or through the Garmin GSD 26 or GSD 25 sonar module.
PRODUCT DETAILS
- Transom-mount broadband CHIRP transducer, dual 42-65 kHz (low) and 130-210 kHz (high) bands
- 1 kW of transmit power for the only 1 kW transom-mount CHIRP unit in the range
- Narrow beam at both frequencies (low 25-16 deg, high 10-6 deg) for crisp deep-water detail to 3,000 ft
- Easy transom installation on a stainless-steel bracket, for transom angles of 3 to 21 deg on boats up to 10 m (32 ft)
- Compatible with all hull materials
- Integral depth and fast-response water-temperature sensor
- Runs on Garmin units with a built-in 1 kW CHIRP sounder, or via the GSD 26 or GSD 25 sonar module
- TM265LH transom-mount transducer with 39 ft (12 m) cable
- Stainless-steel bracket and mounting hardware
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sonar
| Sonar type | Broadband CHIRP, dual-band Low and High |
| Frequency – Low band | 42 to 65 kHz |
| Frequency – High band | 130 to 210 kHz |
| Transmit power | 1 kW |
| Maximum depth | 3,000 ft (914 m). Low band to 914 m (3,000 ft); high band to 304 m (1,000 ft) |
Beam
| Beamwidth – Low band | 25 to 16 degrees |
| Beamwidth – High band | 10 to 6 degrees |
Mounting
| Mount type | Transom mount, with stainless-steel bracket |
| Transom angle | 3 to 21 degrees |
| Recommended boat size | Up to 10 m (32 ft) |
| Hull suitability | Compatible with all hull materials |
Physical
| Housing material | Urethane housing with stainless-steel transom bracket |
| Weight | 4 kg (8.9 lb) |
| Temperature sensor | Yes – depth and fast-response water-temperature sensor |
Connectivity
| Connector | 12-pin Garmin (Mix-and-Match) on this Garmin part number; legacy bare-wire versions also exist |
| Cable length | 39 ft (12 m) |
Compatibility
| Compatible sounders | Works with Garmin chartplotters that have a built-in 1 kW CHIRP sounder (GPSMAP xsv series), or via the Garmin GSD 26 or GSD 25 sonar module. Listed under Garmin GSD 26 CHIRP transducers. |
General
| In the box | TM265LH transom-mount transducer with 39 ft (12 m) cable, stainless-steel bracket, mounting hardware and installation instructions |
No videos available for this product.
What frequencies and power does the TM265LH use?
It is a dual-band CHIRP transducer covering 42 to 65 kHz (low) and 130 to 210 kHz (high), with 1 kW of transmit power. It is the only 1 kW transom-mount CHIRP transducer in the range.
Does the TM265LH need a separate sonar module?
Not necessarily. It runs directly on Garmin chartplotters that have a built-in 1 kW CHIRP sounder, such as the GPSMAP xsv series. Where there is no built-in 1 kW sounder it can be driven by the Garmin GSD 26 or GSD 25 sonar module.
How deep can the TM265LH sound?
The low band reaches approximately 3,000 ft and the high band approximately 1,000 ft, depending on water conditions.
How is the TM265LH mounted?
It mounts on the transom using its stainless-steel bracket, suiting transom angles of 3 to 21 degrees on boats up to 10 m (32 ft). It is compatible with all hull materials.
Does the TM265LH read water temperature?
Yes. It includes an integral depth reading and a fast-response water-temperature sensor.
