Balmar
Alternator, 60 Series, 100a, 12v, SaddleMT, 3.15in. SingPul, IsoGrd
£787.20
/
Tax included.
Shipping calculated at checkout.
60-100-SV

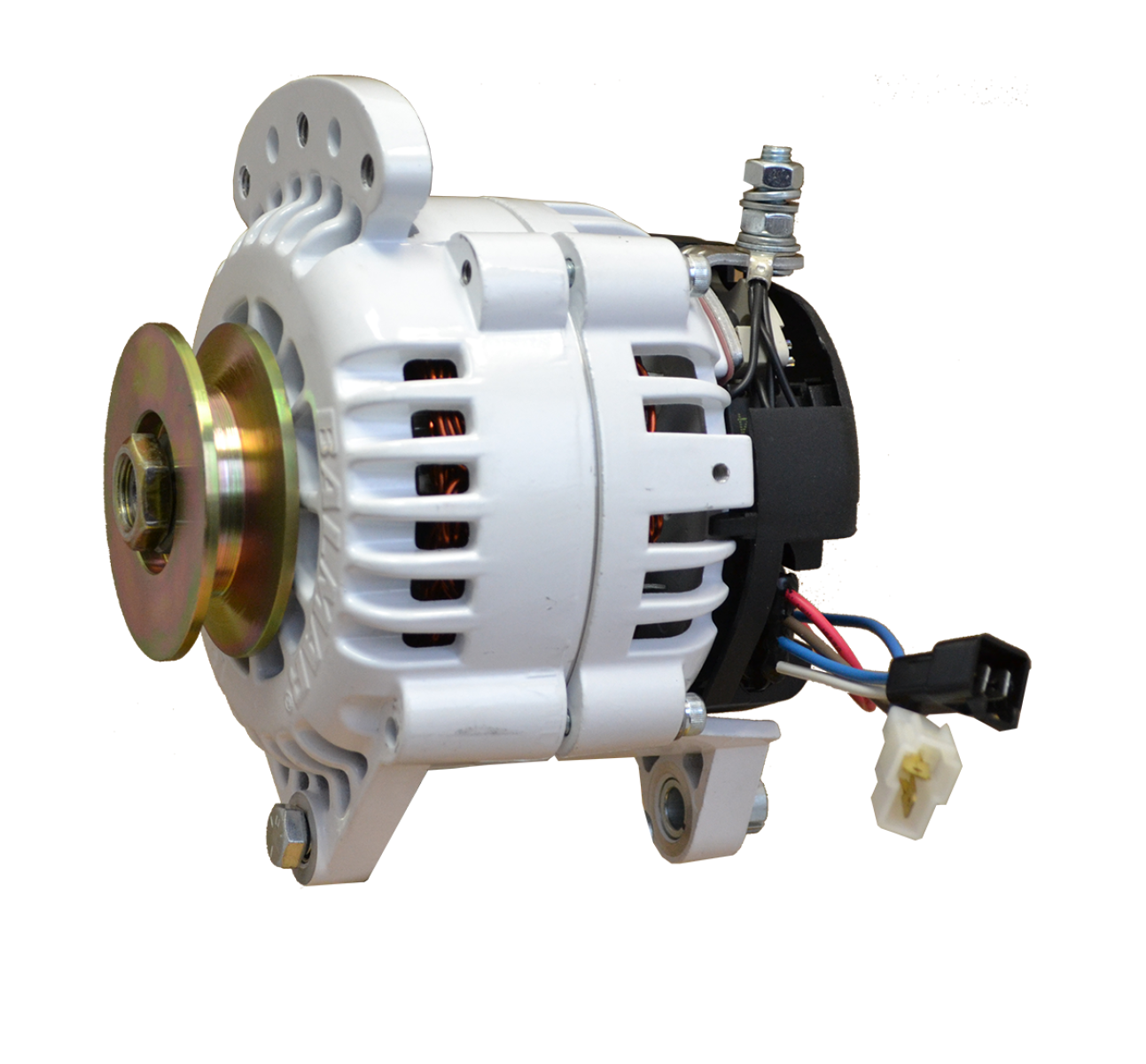

Balmar 6-Series 100A 12V marine alternator with 3.15 inch saddle mount, single vee pulley, isolated ground and Smart Ready internal regulation.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Balmar 60-100-SV is a 100-amp, 12-volt marine alternator from Balmar's top-selling 6-Series, engineered to deliver high-output charging performance in a compact, small-case package. It uses a 3.15 inch saddle (dual-foot) mount in the Hitachi style that suits many Yanmar, Westerbeke, Lehman and Perkins-Sabre diesels, and it is fitted with a single half-inch deep-vee pulley and an isolated-ground terminal for clean continuity to the vessel's system ground. Dual-fan cooling and a high-airflow frame help the alternator sustain output in the confined, warm spaces typical of an engine room.
The 60-100-SV features Balmar's patented Smart Ready internal regulator. Where battery loads are modest and the engine runs frequently, the internal regulator can support the electrical system on its own, while vessels with larger deep-cycle banks or a lighter engine duty cycle can add a Balmar ARS-5 or Max Charge multi-stage external regulator for fully programmable, battery-specific charging. Built to USCG Title 33, ISO, SAE and CE requirements, it draws roughly 4.0 horsepower at full 100-amp output and is rated for a maximum of 12,000 alternator RPM.
PRODUCT DETAILS
- 100A output at 12V from Balmar's compact, small-case 6-Series frame
- 3.15 inch saddle (dual-foot) Hitachi-style mount for Yanmar, Westerbeke, Lehman and Perkins-Sabre engines
- Single half-inch deep-vee pulley with isolated-ground terminal
- Patented Smart Ready internal regulator, runs standalone or with an ARS-5 or Max Charge external regulator
- Dual-fan cooling and high-airflow frame for sustained output
- Approximately 4.0 HP power take-off at rated output, maximum 12,000 alternator RPM
- USCG Title 33, ISO, SAE and CE compliant
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Electrical
| System voltage | 12 V |
| Rated output | 100 A |
| Regulation | Smart Ready internal regulator, external regulation ready (ARS-5 / Max Charge) |
| Power take-off at rated output | Approx. 4.0 HP |
Mechanical
| Case size | Small case, 5.35 in (136 mm) diameter |
| Mount | 3.15 in saddle, dual-foot (Hitachi style) |
| Pulley | Single half-inch deep-vee (SV) |
| Ground | Isolated ground |
| Cooling | Dual fan, high-airflow frame |
| Maximum alternator RPM | 12,000 rpm |
General
| Series | Balmar 6-Series (60 Series) |
| Compliance | USCG Title 33, ISO, SAE, CE |
| Manufacturer | Balmar |
No videos available for this product.
Does the 60-100-SV need an external regulator?
Not necessarily. The 6-Series uses Balmar's Smart Ready internal regulator, which can support the system on its own when battery loads are modest and the engine runs often. For larger deep-cycle banks or lighter engine duty cycles, add a Balmar ARS-5 or Max Charge external regulator for programmable, battery-specific multi-stage charging.
Which engines does the 3.15 inch saddle mount fit?
The 60 Series uses a 3.15 inch dual-foot saddle mount in the Hitachi style, which is typical for many Yanmar, Westerbeke, Lehman and Perkins-Sabre diesel engines. Confirm your engine's mounting foot and belt arrangement before ordering.
What pulley does the SV version use?
The SV designation means a single half-inch deep-vee pulley. Balmar also offers dual-vee and serpentine (K6, J10) pulley options across the 6-Series if your engine requires a different belt configuration.
