Balmar
Alternator, 621 Series, 120a, 12v, SingleFT, 1-2in, K6Pul, IsoGrd
£877.20
/
Tax included.
Shipping calculated at checkout.
621-120-K6

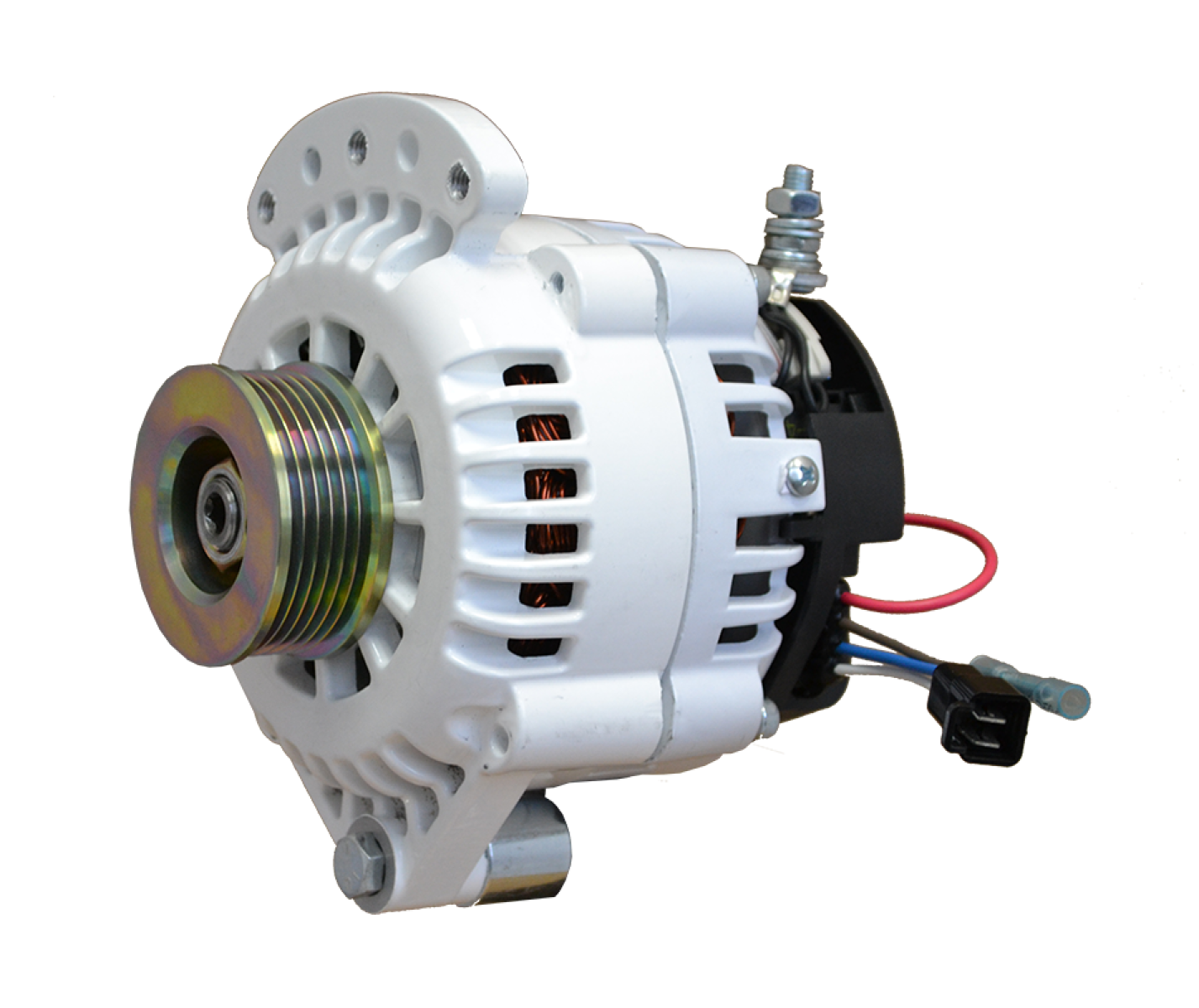

Balmar 6-Series 120A 12V marine alternator with 1 to 2 inch single-foot spindle mount, K6 serpentine pulley, isolated ground and Smart Ready internal regulation.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Balmar 621-120-K6 is a 120-amp, 12-volt marine alternator from Balmar's top-selling 6-Series. It combines the compact, small-case design of the range with a 1 to 2 inch single-foot spindle mount in the Motorola and Delco style, so it drops in as a high-output upgrade on engines fitted with a common single-foot alternator. It is supplied with a K6 serpentine pulley and an isolated-ground terminal, and dual-fan cooling with a high-airflow frame helps sustain output in a hot engine space.
The 621-120-K6 uses Balmar's patented Smart Ready internal regulator. Where battery loads are modest and the engine runs frequently, the internal regulator can carry the system alone, while larger deep-cycle banks or a lighter engine duty cycle can be served by adding a Balmar ARS-5 or Max Charge multi-stage external regulator to match charging to the battery chemistry. Built to USCG Title 33, ISO, SAE and CE standards, it draws roughly 4.8 horsepower at full 120-amp output and is rated for up to 12,000 alternator RPM.
PRODUCT DETAILS
- 120A output at 12V from Balmar's compact, small-case 6-Series frame
- 1 to 2 inch single-foot spindle mount (Motorola / Delco style)
- K6 serpentine pulley with isolated-ground terminal
- Patented Smart Ready internal regulator, runs standalone or with an ARS-5 or Max Charge external regulator
- Dual-fan cooling and high-airflow frame for sustained output
- Approximately 4.8 HP power take-off at rated output, maximum 12,000 alternator RPM
- USCG Title 33, ISO, SAE and CE compliant
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Electrical
| System voltage | 12 V |
| Rated output | 120 A |
| Regulation | Smart Ready internal regulator, external regulation ready (ARS-5 / Max Charge) |
| Power take-off at rated output | Approx. 4.8 HP |
Mechanical
| Case size | Small case, 5.35 in (136 mm) diameter |
| Mount | 1 to 2 in single-foot spindle (Motorola / Delco style) |
| Pulley | K6 serpentine |
| Ground | Isolated ground |
| Cooling | Dual fan, high-airflow frame |
| Maximum alternator RPM | 12,000 rpm |
General
| Series | Balmar 6-Series (621 Series) |
| Compliance | USCG Title 33, ISO, SAE, CE |
| Manufacturer | Balmar |
No videos available for this product.
What is the difference between the 621 Series and the 60 Series?
Both are 6-Series alternators with the same electrical output and Smart Ready regulator. The 621 Series uses a 1 to 2 inch single-foot spindle mount (Motorola / Delco style), while the 60 Series uses a 3.15 inch dual-foot saddle mount (Hitachi style). Pick the version that matches your engine's mounting foot.
What is a K6 serpentine pulley?
K6 is a 6-groove serpentine (poly-V) pulley. A serpentine belt spreads load across more grooves than a single vee belt, helping transmit the higher power take-off of a 120-amp alternator without slip. Single-vee, dual-vee and J10 options are also available.
Does the 621-120-K6 need an external regulator?
Not always. The Smart Ready internal regulator can support modest loads when the engine runs often. For larger deep-cycle banks or lighter engine duty cycles, add a Balmar ARS-5 or Max Charge external regulator for programmable, battery-specific multi-stage charging that makes the most of the 120-amp output.
