Balmar
Alternator, AT Series, 165a, 12v, SingleFT, 1-2in, K6Pul, IsoGrd
£1,765.20
/
Tax included.
Shipping calculated at checkout.
AT-SF-165-K6

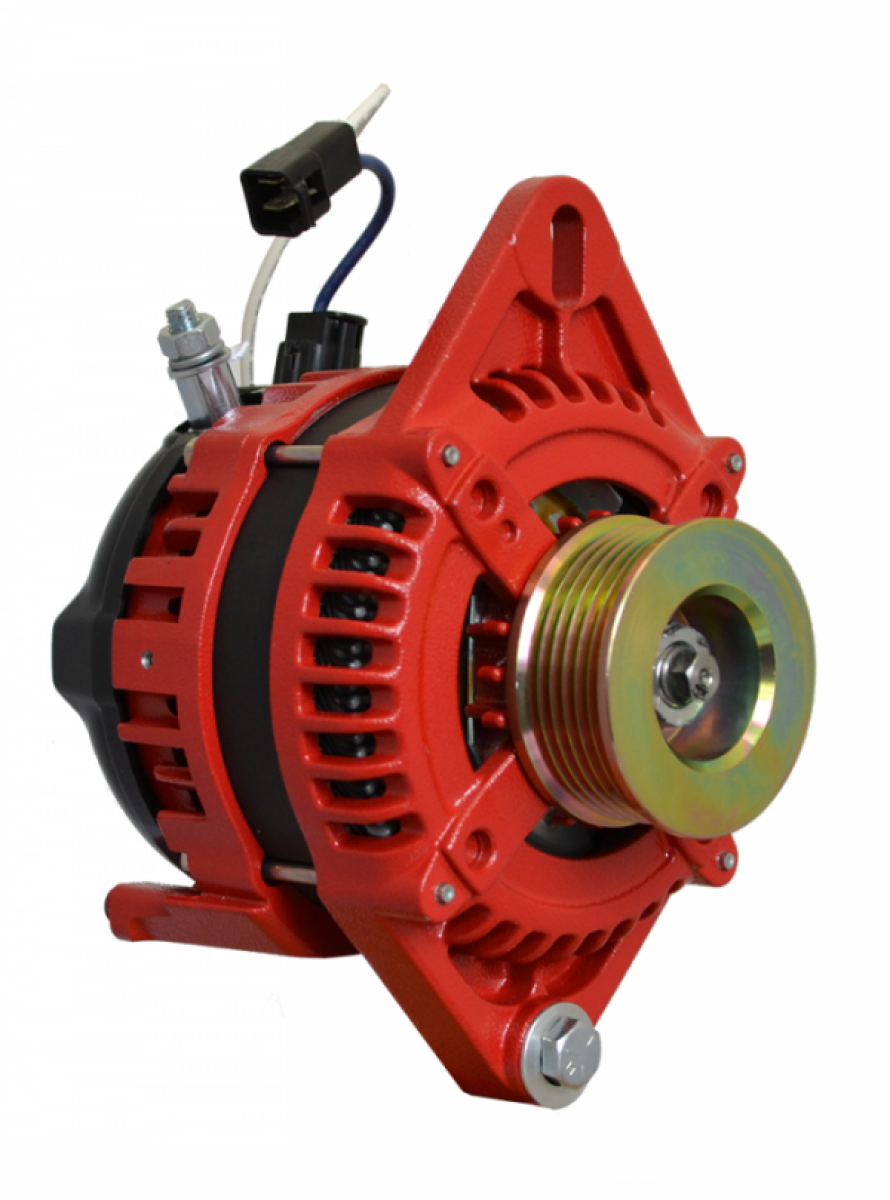

Compact 165A, 12V marine alternator with hairpin-wound stator, 1 to 2 inch single foot mount, K6 serpentine pulley and isolated ground.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Balmar AT-SF-165-K6 is a compact, high-output marine alternator rated at 165 amps on a 12 volt system. Part of Balmar's AT (Advanced Technology) Series, it uses a hairpin-wound stator with densely packed square copper wire to generate exceptional output from a small case, delivering up to around 125 amps even at idle speeds. The design runs efficiently and stays cool thanks to dual internal fans, a high airflow frame and generous heat sinking, making it a strong charging solution for cruising vessels with large battery banks.
The AT-SF-165-K6 fits a 1 inch or 2 inch single foot (spindle) mount and comes with a K6 serpentine pulley. It uses a dedicated grounding terminal (isolated ground) and is designed for external multi-stage regulation with a Balmar regulator such as the MC-614. Certified to USCG Title 33, ISO and SAE ignition-protection standards, it should be run only in Dual Vee or multi-groove serpentine belt configurations.
PRODUCT DETAILS
- 165A rated output on a 12V system
- Hairpin-wound stator delivers high output from a small case
- Up to about 125A at idle speed
- Dual internal fans and high airflow frame for cool running
- 1 to 2 inch single foot (spindle) mount with K6 serpentine pulley
- Isolated ground via a dedicated grounding terminal
- Designed for external Balmar multi-stage regulation (MC-614)
- USCG Title 33, ISO and SAE ignition-protection certified
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Electrical
| System Voltage | 12V |
| Rated Output | 165A |
| Output at Idle | Up to 125A |
| Regulation | External P-type (MC-614) |
| Low RPM Cut-In | 1,320 rpm |
| Maximum RPM | 12,000 rpm |
| Diodes | 6 positive, 6 negative; 40A rated |
Mechanical
| Case Size | Small case |
| Mount / Foot Type | 1 to 2 inch single foot (spindle) |
| Pulley Type | K6 serpentine |
| Cooling | Dual internal fans |
| Ground | Isolated ground (dedicated terminal) |
| Positive Output Stud | M8 x 1.25 |
| Normal Operating Temperature | 82 C (180 F) |
General
| Series | AT Series |
| Belt Type | Dual Vee or multi-groove serpentine |
| Ignition Protection | USCG Title 33, ISO, SAE 8846, CE |
| Manufacturer | Balmar |
No videos available for this product.
How much power does the AT-SF-165-K6 make at idle?
The AT-Series 165A design produces up to around 125 amps at idle speed, well above the 30 to 40 amps typical of a standard alternator, so it keeps charging your bank even when the engine is barely off idle.
Does this alternator have a built-in regulator?
No. The AT-SF-165-K6 is externally regulated and is designed to run with a Balmar multi-stage regulator such as the MC-614, which lets you set the correct charge program for your battery chemistry.
What belt setup does it require?
AT-Series alternators should only be run in Dual Vee or multi-groove serpentine belt configurations. If your engine does not already have a suitable pulley, a Balmar AltMount conversion kit may be required to handle the alternator load.
