B&G, Simrad ForwardScan Long Stem Housing Only
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

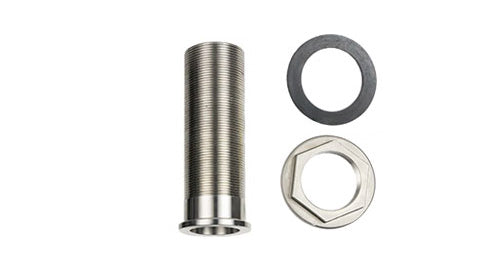

This is the extended stainless steel through-hull housing used by the long-stem version of ForwardScan, supplied on its own without the transducer. The longer stem is what allows ForwardScan to be fitted to thicker or more steeply angled hulls - up to 47.6 mm (1 7/8 inch) of hull thickness and up to 28 degrees of deadrise - where the standard housing would not protrude far enough.
It uses the standard 2-inch stainless through-hull fitting, so the transducer plug can be withdrawn with the boat afloat. Order this part when replacing a corroded or damaged housing on an existing installation, or when the complete long-stem transducer kit is not required.
PRODUCT DETAILS
- Long-stem stainless steel through-hull housing only
- Suits hulls up to 47.6 mm (1 7/8 inch) thick
- Suits deadrise angles up to 28 degrees
- Standard 2-inch through-hull fitting - plug removable afloat
- ForwardScan transducer is NOT included
No exploded diagram available for this product.
No compatible transducers listed for this product.
Physical
| Material | Stainless steel |
| Maximum Hull Thickness | 47.6 mm (1 7/8 in) |
| Maximum Deadrise | 28 degrees |
| Through-Hull Fitting | 2 in standard |
General
| Transducer Included | No - housing only |
