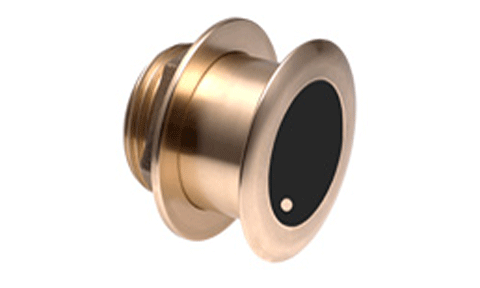

Garmin Airmar B175HW 12 Degree Tilt Transducer
£1,799.99
/
Tax included.
Shipping calculated at checkout.
010-12181-21
The Garmin B175HW (12 degree tilt) is a 1 kW bronze thru-hull CHIRP transducer on a 150-250 kHz high band with a fixed 25 deg wide beam to 600 ft. This variant suits 8-15 degree deadrise and uses an 8-pin connector.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin B175HW is a 1 kW bronze thru-hull CHIRP wide-beam transducer working on a single high band of 150 to 250 kHz. Where a standard high-frequency transducer narrows its beam, the B175HW holds a fixed 25 degree beam across the whole band, giving roughly twice the coverage beneath the boat and revealing more fish in the upper water column. The flush bronze housing protrudes less than a quarter inch outside the hull and can sit on trailer rollers or bunks without damage.
With 1 kW of power and 100 kHz of bandwidth it sounds to 600 ft. This part number is the 12 degree tilt version, suited to hulls of 8 to 15 degrees deadrise; the tilted element built into the transducer accommodates the hull angle and removes the need for a fairing block. An integral depth and water-temperature sensor is included, and the transducer uses an 8-pin Garmin connector. It runs on Garmin chartplotters with a built-in 1 kW CHIRP sounder, or through the Garmin GSD 26 or GSD 25 sonar module.
PRODUCT DETAILS
- Bronze thru-hull broadband CHIRP wide-beam transducer on a single 150-250 kHz high band
- Holds a fixed 25 deg beam across the whole band for roughly twice the coverage of a narrow high-frequency transducer
- 1 kW of transmit power with 100 kHz of bandwidth, sounding to 600 ft
- Flush bronze housing protrudes less than 1/4 in outside the hull and sits on trailer rollers without damage
- This 12 degree tilt variant suits 8 to 15 degree hull deadrise; the tilted element removes the need for a fairing block
- Integral depth and water-temperature sensor with an 8-pin Garmin connector
- Runs on Garmin units with a built-in 1 kW CHIRP sounder, or via the GSD 26 or GSD 25 sonar module
- B175HW bronze thru-hull transducer (12 degree tilt) with 8-pin cable
- Installation instructions
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Sonar
| Sonar type | Broadband CHIRP, single-band High Wide-Beam |
| Frequency – High Wide band | 150 to 250 kHz |
| Total bandwidth | 100 kHz from one transducer |
| Transmit power | 1 kW |
| Maximum depth | 600 ft (183 m) |
Beam
| Beamwidth – High Wide band | 25 degrees constant across the band (wide beam for maximum coverage) |
Mounting
| Mount type | Bronze thru-hull, flush-mounted. The housing protrudes less than 1/4 in outside the hull and can sit on trailer rollers or bunks without damage |
| Element tilt (this variant) | 12 degree tilted element |
| Supported deadrise (this variant) | 8 to 15 degree hull deadrise |
| Fairing | The tilted element accommodates hull deadrise and eliminates the need for a fairing block |
| Hull suitability | Fibreglass or wood hulls |
Physical
| Housing material | Bronze |
| Temperature sensor | Yes – depth and water-temperature sensor |
Connectivity
| Connector | 8-pin Garmin |
| Cable length | Approximately 8 m (26 ft) on the Garmin 8-pin version (not stated on a Garmin-official spec page) |
Compatibility
| Compatible sounders | Works with Garmin chartplotters that have a built-in 1 kW CHIRP sounder (GPSMAP xsv series), or via the Garmin GSD 26 or GSD 25 sonar module. |
General
| In the box | B175HW bronze thru-hull transducer (12 degree tilt) with 8-pin cable and installation instructions |
No videos available for this product.
What does the 12 degree tilt mean on this B175HW?
The three B175HW part numbers differ only by element tilt. This 12 degree version suits hulls of 8 to 15 degrees deadrise. The 0 degree version (010-12181-20) suits 0 to 7 degrees and the 20 degree version (010-12181-22) suits 16 to 24 degrees.
What makes the B175HW a wide-beam transducer?
It works on a single 150 to 250 kHz high band and holds a fixed 25 degree beam across the whole range, giving roughly twice the coverage of a narrow high-frequency transducer and revealing more fish in the upper water column.
Does the B175HW need a fairing block?
No. The tilted element built into the transducer accommodates the hull deadrise, so no separate fairing block is required. The flush bronze housing protrudes less than a quarter inch outside the hull.
Does the B175HW need a separate sonar module?
Not necessarily. It runs on Garmin chartplotters with a built-in 1 kW CHIRP sounder, such as the GPSMAP xsv series. Where there is no built-in 1 kW sounder it can be driven by the Garmin GSD 26 or GSD 25 sonar module.
Does the B175HW read water temperature?
Yes. It includes an integral depth reading and a water-temperature sensor, and uses an 8-pin Garmin connector.
