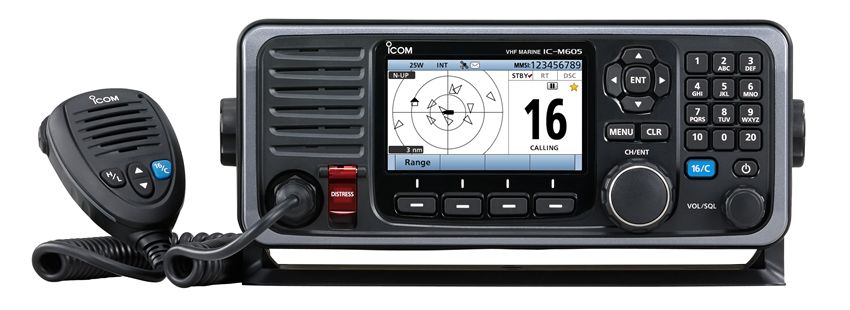

Icom IC-M605EURO Multi Station VHF/DSC Radio with AIS Receiver

IC-M605EURO
The Icom IC-M605EURO is a flagship Class D VHF/DSC marine radio with an integrated AIS receiver and a 4.3-inch colour TFT display. It supports multi-station control with up to three COMMAND HEAD/COMMANDMIC units, and adds NMEA 2000, last-call voice recording, a 30 W two-way hailer and IPX8 waterproofing.

Description

The Icom IC-M605EURO is the brand's flagship Class D VHF/DSC marine radio, combining commercial-grade performance with system flexibility for larger yachts and motor cruisers. An integrated AIS receiver displays real-time vessel traffic on the wide-viewing-angle 4.3-inch colour TFT LCD, and an AIS combo screen lets you monitor the plotter during normal operation and place an individual DSC call directly to a selected target.

The radio can be expanded into a multi-station system with up to three controllers, using RC-M600 COMMAND HEAD units and/or HM-229B/W COMMANDMICs with intercom between the main set and each station, for operating flexibility anywhere on board. Class-leading receiver performance (selectivity and IMD greater than 75 dB), Active Noise Cancelling and a last-call voice recording function that stores up to two minutes of audio keep communication clear and dependable. NMEA 2000 and NMEA 0183-HS connectivity, an integrated GNSS receiver with supplied UX-241 antenna, a 30 W two-way hailer with automatic foghorn, an optional UT-112 voice scrambler and rugged IPX8 waterproofing complete a comprehensive, award-winning communication system.

PRODUCT DETAILS

  • Multi-station system: up to three COMMAND HEAD/COMMANDMIC controllers with intercom
  • Integrated AIS receiver with AIS combo plotter screen
  • Wide viewing angle 4.3-inch colour TFT LCD with night mode
  • Class-leading receiver performance (selectivity and IMD more than 75 dB)
  • Active Noise Cancelling technology
  • Last call voice recording (up to two minutes)
  • Integrated GNSS receiver with supplied UX-241 antenna
  • 30 W two-way hailer and automatic foghorn
  • NMEA 2000 and NMEA 0183/-HS connectivity; IPX8 waterproof (1 m for 60 minutes)
  • HM-205RB speaker-microphone
  • UX-241 GNSS antenna (5 m cable)
  • Microphone hanger
  • DC power cable
  • Mounting bracket kit

No exploded diagram available for this product.

No compatible transducers listed for this product.

No compatible products found.

General

Frequency range TX156.025-161.425 MHz (differs by version)
Frequency range RX156.025-162.000 MHz (differs by version)
Frequency CH70156.525 MHz
Frequency AIS161.975, 162.025 MHz
Usable channelsINT, USA channels (available depending on version)
Type of emission16K0G3E (FM), 16K0G2B (DSC)
Power supply requirement13.8 V DC (10.8-15.6 V DC)
Current drain (TX 25 W output)6.0 A
Current drain (RX max. audio)8.0 A
Operating temperature range-20 C to +60 C
Antenna impedance50 ohm (SO-239)
Dimensions (W x H x D)250 x 114 x 93.5 mm (from leaflet dimension drawing)
Weight (approx.)1510 g
Multi-station controlUp to 3 controllers (RC-M600 COMMAND HEAD and/or HM-229B/W COMMANDMIC)

Transmitter

Output power (at 13.8 V DC)25 W, 1 W
Max. frequency deviation+/-5.0 kHz
Frequency stabilityLess than +/-0.5 kHz
Spurious emissionsLess than 0.25 uW
Residual modulationMore than 40 dB
Adjacent channel powerMore than 70 dB

Receiver

Intermediate frequency30.15 MHz, 450 kHz (1st/2nd)
Sensitivity (20 dB SINAD)-5 dBu emf typ.
Sensitivity CH70 (1% BER)-3 dBu emf typ.
Adjacent channel selectivityMore than 75 dB
Spurious responseMore than 75 dB
IntermodulationMore than 75 dB
Hum and noiseMore than 40 dB
Audio output power (10% distortion)More than 15 W with a 4 ohm external speaker

Environmental

Ingress protectionIPX8 (1 m depth of water for 60 minutes)
MIL-STDMIL-STD-810G (and equivalent C, D, E, F)
