Raymarine

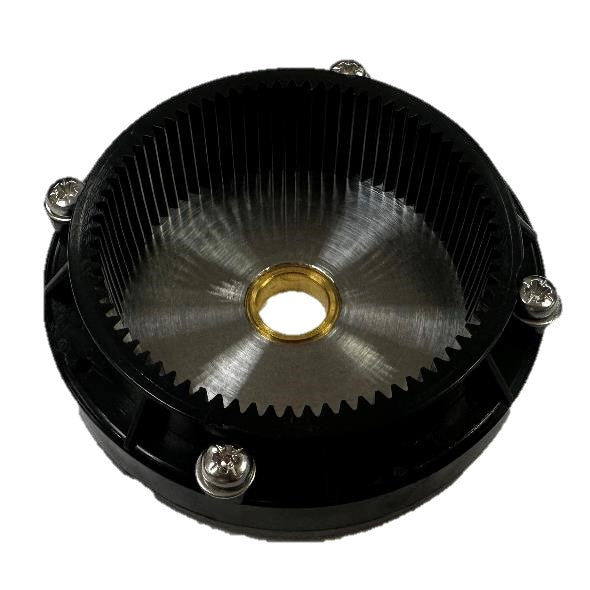

Raymarine Linear Drive Clutch Plate Assembly
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine Linear Drive Clutch Plate Assembly is a genuine service replacement for the mechanical clutch plate within Raymarine linear autopilot drive units. The clutch plate is a wear component that transfers drive torque when the autopilot is engaged and releases to allow free manual steering when disengaged. Replacing a worn clutch plate restores positive drive engagement and smooth manual override capability.
PRODUCT DETAILS
- Genuine Raymarine clutch plate assembly for linear drives
- Transfers drive torque when autopilot is engaged
- Releases for smooth manual steering when disengaged
- Replaces worn clutch plate to restore drive engagement
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Type 1 12 Volt Autopilot Short Shaft Linear Drive (up to 11,000kg)
Raymarine Type 2 12 Volt Autopilot Short Shaft Linear Drive (up to 15,000kg)
Raymarine Type 2 12 Volt Autopilot Long Shaft Linear Drive (up to 20,000kg)
Raymarine Type 2 24 Volt Autopilot Short Shaft Linear Drive (up to 15,000kg)
Raymarine Type 2 24 Volt Autopilot Long Shaft Linear Drive (up to 20,000kg)
Raymarine Short Stroke Linear Drive Module
Raymarine Long Stroke Linear Drive Module
No compatible products found.
Compatibility
| Fits | Raymarine linear autopilot drive units |
| Part Type | Clutch Plate Assembly |
| Function | Transfers drive torque during engagement; releases for manual steering |
