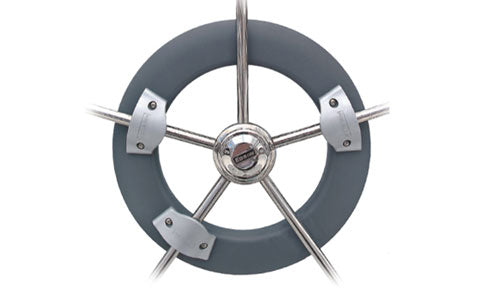

Raymarine Cockpit Mk II Autopilot Wheel Drive and Fitting Kit (up to 7,500kg)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine Cockpit Mk II Wheel Drive is an autopilot wheel-drive system for wheel-steered sailboats. It clamps directly to the boat's steering wheel for a simple installation and strong autopilot performance, and includes an adjustable clutch lever so you can switch instantly between autopilot control and hand-steering.
The drive fits wheels with 3, 4, 5, 6, 7 or 8 spokes and is designed to work with steering systems of between 1 and 3.5 turns lock to lock. It is recommended for wheel-steered sailboats up to a maximum laden displacement of 7,500kg (16,500 lbs), runs on 12-volt DC power and works with the Evolution ACU-100 actuator control unit. This package includes the wheel drive and its installation kit.
PRODUCT DETAILS
- Autopilot wheel-drive system for wheel-steered sailboats
- Clamps directly to the steering wheel for simple installation
- Adjustable clutch lever switches instantly between autopilot and hand-steering
- Fits wheels with 3, 4, 5, 6, 7 or 8 spokes
- Suits steering systems of 1 to 3.5 turns lock to lock
- For wheel-steered sailboats up to 7,500kg (16,500 lbs) laden displacement
- For 12-volt DC electrical systems; works with the ACU-100
- Supplied with installation/fitting kit
- Wheel
- Template
- 3 Spoke Clamps
- Torque Restraint
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Wheel Pilot Mk2 Gearbox
Raymarine Wheel Pilot Mk2 Back Cover
Raymarine Wheel Pilot Mk2 Motor Assembly
Raymarine Wheel Pilot Mk2 Front Cover
Raymarine Wheel Pilot Mk2 Bearing Kit
Raymarine Wheel Pilot Mk2 Spare Drive Belt
Raymarine Wheel Pilot Mk2 Torque Restraint
Raymarine Wheel Pilot Mk2 Drive Ring
Raymarine Wheel Pilot Mk2 Drive Power Cable
Raymarine Wheel Pilot Mk2 Clutch Lever
Raymarine Wheel Pilot Mk2 Clutch Kit
Raymarine Wheel Pilot Mk2 Spoke Clamp (x1)
Raymarine Wheel Pilot Mk2 Drive Assembly
Raymarine Wheel Pilot Mk2 Motor Loom & Seal Assembly
Raymarine Wheel Pilot Mk2 Belt Cog / Pulley
Drive
| Drive type | Cockpit wheel drive (Mk II) |
| Steering type | Wheel steering |
| Wheel compatibility | 3, 4, 5, 6, 7 or 8 spoke wheels |
| Steering turns | 1 to 3.5 turns lock to lock |
| Clutch | Adjustable clutch lever |
General
| Maximum vessel displacement | 7,500 kg (16,500 lb) laden |
Power
| Supply voltage | 12 V dc |
Compatibility
| Actuator Control Unit | ACU-100 |
| Autopilot system | Evolution / SmartPilot |
