Raymarine Evolution EV-400 Power Autopilot Pack

Raymarine

Raymarine Evolution EV-400 Power Autopilot Pack

Name: Raymarine Evolution EV-400 Power Autopilot Pack
Brand: Raymarine
SKU: T70162
Price: 2995.00 GBP
Availability: InStock

£2,995.00

Tax included. Shipping calculated at checkout.

T70162

Evolution autopilot pack for large powerboats with hydraulic steering. Combines the EV-1 Sensor Core, the 30 amp ACU-400, p70Rs rotary head, rotary rudder reference sensor and cabling kit; complete with any Type 2 or Type 3 hydraulic drive.

Quantity

✓ Collection or delivery in 1-2 weeks

Pickup available at Mercury Yacht Harbour

Usually ready in 2-4 days

Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.

No extended cover
+1 year (up to 4 years total) £269.55
+2 years (up to 5 years total) £539.10

Extended cover is added to your order and confirmed with your warranty documentation.

Description

The Raymarine Evolution EV-400 Power Pilot (T70162) heads the Evolution range for large powerboats with hydraulic steering. The ACU-400 actuator control unit provides up to 30 A of continuous drive current, enough for the Type 2 and Type 3 hydraulic pumps and hydraulic linear drives used on substantial hulls, and accepts 12 or 24 volt supplies while powering the SeaTalkng bus. A rotary rudder feedback unit is included, with the 9-axis EV-1 Sensor Core, the p70Rs rotary control head and the Evolution cabling kit completing the pack.

Add any compatible Type 2 or Type 3 hydraulic autopilot drive to finish the installation. Commissioning requires no calibration, Hydro-Balance tuning keeps hydraulic course keeping precise, and pilot control is also available from a compatible Axiom chartplotter. Raymarine has issued a recall notice affecting certain ACU-400 units; contact us with your serial number for guidance.

PRODUCT DETAILS

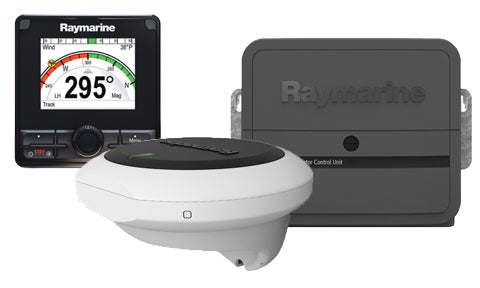

EV-1, ACU-400, p70Rs head, rotary rudder reference and cabling kit
For large powerboats with hydraulic steering systems
Complete with any Type 2 or Type 3 hydraulic pump or hydraulic linear drive
ACU-400 delivers up to 30 A continuous drive current, 12 / 24 V dc
Rotary rudder feedback sensor kit included
Pilot control also available from compatible Axiom chartplotters

EV-1 Sensor Core (E70096)
ACU-400 actuator control unit (E70100)
p70Rs control head (E70329)
Rudder angle reference transducer (M81105)
Evolution cabling kit (R70160)

No exploded diagram available for this product.

No compatible transducers listed for this product.

No spares or accessories listed for this product.

Raymarine Axiom 2 Pro 9 S

Raymarine Axiom 2 Pro 9 RVM

Raymarine Axiom 2 Pro 12 S

Raymarine Axiom 2 Pro 12 RVM

Raymarine Axiom 2 Pro 16 S

Raymarine Axiom 2 Pro 16 RVM

Raymarine Axiom 2 XL 16 Chartplotter

Raymarine Axiom 2 XL 19 Chartplotter

Raymarine Axiom 2 XL 22 Chartplotter

Raymarine Axiom 2 XL 24 Chartplotter

Raymarine Type 2 12 Volt Autopilot Hydraulic Pump (230-350cc)

Raymarine Type 2 24 Volt Autopilot Hydraulic Pump (230-350cc)

Raymarine Type 3 12 Volt Autopilot Hydraulic Pump (350-500cc)

Raymarine Type 3 24 Volt Autopilot Hydraulic Pump (350-500cc)

Raymarine Type 2 12 Volt Autopilot Hydraulic Linear Drive (up to 22,000kg)

Raymarine Type 2 24 Volt Autopilot Hydraulic Linear Drive (up to 22,000kg)

Raymarine Type 3 12 Volt Autopilot Hydraulic Linear Drive (up to 35,000kg)

Raymarine Type 3 24 Volt Autopilot Hydraulic Linear Drive (up to 35,000kg)

System

Autopilot type	Evolution EV-400 Power Autopilot
Suitable steering system	Hydraulic steering (Type 2 or Type 3 hydraulic drive, sold separately)
Vessel rating	Large powerboats with hydraulic steering
Control head	p70Rs control head (E70329)
Heading sensor	EV-1 Sensor Core (E70096)
Actuator control unit	ACU-400 actuator control unit (E70100)
Drive unit	Not included (choose a compatible drive for your steering system)
Cabling	Evolution cabling kit (R70160)
Controller alternatives	Compatible Raymarine Axiom family chartplotter (LightHouse 4 v4.4.70 or later for Axiom 2 Pro / Axiom 2 XL)

Which Evolution pack suits my boat?

Match the pack to your steering system: EV-100 Wheel or Tiller for cockpit-drive sailboats, EV-100, EV-150 or EV-200 Power for hydraulic steering depending on cylinder capacity, EV-200 Sail for below-decks mechanical steering, EV-300 for solenoid-controlled systems, EV-400 for Type 2 and Type 3 drives on larger vessels, and EV-DBW for drive-by-wire steering.

Does an Evolution autopilot need calibration?

No. Set-up is automatic: the rudder gain, rudder damping, counter rudder and compass calibration routines required by earlier autopilots are no longer necessary, and the system keeps refining itself as you use the boat. This is documented in the EV-1 installation instructions (87472).

Do I need a rudder angle reference sensor?

Raymarine highly recommends the rudder angle reference transducer (M81105) on every Evolution system for optimum performance, and it is essential on ACU-300 solenoid installations. The EV-400 Sail and Power packs include a rotary rudder feedback unit, and the ACU-300 ships with one.

How do I check the displacement ratings?

Use the vessel's fully laden displacement, which Raymarine notes is often around 20 percent above the designed displacement, when comparing your boat against a drive or pack rating.

Can I control the autopilot from my chartplotter?

Yes. Compatible controllers include the Axiom, Axiom+, Axiom Pro, Axiom 2 Pro, Axiom XL and Axiom 2 XL chartplotter families as well as the p70s and p70Rs pilot heads. Axiom 2 Pro and Axiom 2 XL need LightHouse 4 v4.4.70 or later; earlier families are supported per the compatibility tables in document 87472.
