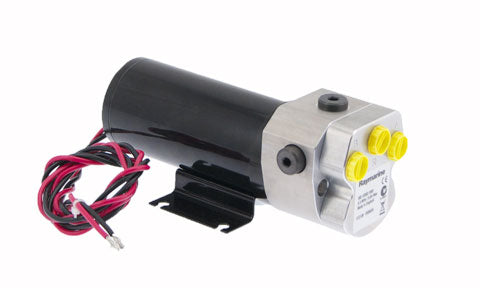

Raymarine Type 2 12 Volt Autopilot Hydraulic Pump (230-350cc)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine Type 2 hydraulic pump is a reversing pump drive for boats with traditional hydraulic steering. Working under the control of the Evolution autopilot Actuator Control Unit (ACU-400), it manages the flow of fluid through the boat's existing steering system so the autopilot can steer the boat accurately and smoothly.
Raymarine offers pumps of different flow rates so the drive can be matched to the volume of the hydraulic steering ram. This Type 2 pump is sized for steering cylinders of 230 to 350cc (14 to 21 cubic inches). Selecting the pump that covers your ram volume ensures the boat responds to steering commands at the right rate, rather than too quickly or too slowly. Raymarine advises against moving up or down the range, as this offers no performance gain and can make the boat steer poorly.
This 12-volt model is intended for 12-volt DC electrical systems and pairs with the ACU-400. The pump forms the muscle of the autopilot system, connecting to the EV-1 sensor core and control head through the actuator control unit.
PRODUCT DETAILS
- Reversing hydraulic pump drive for boats with traditional hydraulic steering
- Type 2 pump sized for steering rams of 230-350cc (14-21 cubic inches)
- Controls the flow of fluid through the boat's existing hydraulic steering system
- For 12-volt DC electrical systems
- Works with the Evolution ACU-400 actuator control unit
- Flow rate matched to ram volume for confident, well-damped autopilot steering
- Forms the drive (muscle) of an Evolution or SmartPilot autopilot system
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Drive
| Drive type | Reversing hydraulic pump |
| Drive classification | Type 2 |
| Hydraulic ram capacity | 230 to 350cc (14 to 21 cubic inches) |
| Steering type | Hydraulic steering |
Power
| Supply voltage | 12 V dc |
| Drive clutch | 12 V (electromagnetic clutch) |
| Fuse rating | 40 A |
| Thermal circuit breaker | 30 A |
Compatibility
| Actuator Control Unit | ACU-400 |
| Autopilot system | Evolution / SmartPilot |
