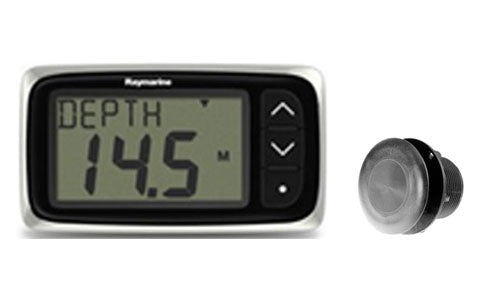

Raymarine i40 Depth Display with P7D Through Hull Depth Transducer
Manufacturer Part Number:
E70142
Manufacturer Part Number:
E70142
The i40 Depth display shows depth. Has shallow and deep anchor alarms extra large 28mm max digits and razor sharp LCDs outstanding visibility in all lighting conditions. Red backlighting for improved visibility at night. Large controls make it easy to use at sea. SeaTalk 1 compatible with built in transducer interface. Boxed with P7 D Shorty Low Profile Plastic Through Hull Depth Transducer
Home or Marina Delivery
Pick up at Hamble
More Information
Raymarine i40 Speed Display with P371 Through Hull Speed and Temperature Transducer
Raymarine i40 Speed Display with ST69 Transom Mount Speed and Temperature Transducer
Raymarine i40 Depth Display with P7D Through Hull Depth Transducer
Raymarine i40 Depth Display with P66 Transom Mount Depth Transducer
Raymarine i40 Wind Display with RotaVecta Wind Transducer
Raymarine i40 Bidata Display with P371 and P7D Through Hull Transducers
Raymarine i40 Bidata Display with P65 Speed,Temp and Depth Transom Mount Transducer
Dimensions
A 128 mm (5.04 in)
B 72 mm (2.83 in)
C 55 mm (2.17 in)
D 18 mm (0.7 in)
E 17 mm (0.67 in)
F 30 mm (1.18 in)
In the Box
1. i40 Instrument
2. i40 Sun cover
3. Mounting gasket
4. Clamping bracket
5. Fixing stud and thumb nut
6. SeaTalk power cable
7. Document pack
i40 Navigation
Specifications
- Weight: 0.5 kg (1.1 lb)
- Acoustic Window: Urethane
- Hull Deadrise: 0° to 12° optimum and 20° maximum
- Hole Diameter: 51 mm (2”)
- Sensor Cable Length: 10 m (33’) standard
