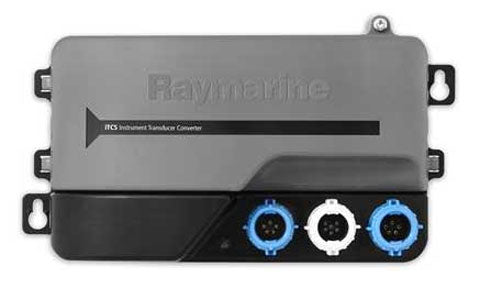

Raymarine iTC-5 Instrument Transducer Converter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine iTC-5 instrument transducer converter digitises your existing analogue transducers, converting depth, speed, temperature, wind and rudder angle signals onto the SeaTalkng backbone. Five transducer inputs with spade terminals replace a stack of separate instrument pods with one tidy bulkhead unit, drawing a typical 1.5 W from the network.
Pair the iTC-5 with an i70 or i70s display for full transducer calibration; ST70 and ST70+ can calibrate depth, wind and speed inputs, while i50, i60, i40 and ST60+ displays must keep their transducers connected directly. Extended SeaTalkng systems can carry multiple iTC-5 units for larger sensor fits, and a DST800 triducer can be wired in following Raymarine technical note 82299.
The converter connects into the backbone with the supplied 400 mm spur cable and powers the upgrade path from legacy ST60 era sensors to a modern digital network shared with chartplotters and autopilots.
PRODUCT DETAILS
- Converts analogue transducer signals to SeaTalkng
- Five inputs: speed/temperature, depth, wind, rudder angle and compass capable terminals
- Replaces multiple ST70 era instrument pods with one unit
- Full transducer calibration with an i70 or i70s display
- Multiple iTC-5 units supported on extended SeaTalkng systems
- Backbone connection plus 1x spur, supplied 400 mm spur cable
- 1.5 W typical consumption, LEN 3
- DST800 connection supported per Raymarine technical note 82299
- iTC-5 instrument transducer converter
- 400 mm SeaTalkng spur cable (A06038)
- 2x Fixing screws
- Documentation
No exploded diagram available for this product.
Raymarine P319 Low Profile Through Hull Plastic Depth Transducer
Raymarine P7 D Shorty Low Profile Plastic Through Hull Depth Transducer
Raymarine B45 Through Hull Bronze Stem Depth Transducer, includes Fairing Block
Raymarine B17 D Through Hull Retractable Bronze Depth Transducer
Raymarine P17 D Through Hull Retractable Plastic Depth Transducer
Raymarine P79 In Hull Depth Transducer with Fitting Kit
Raymarine P79S Smart Depth In Hull Depth Transducer with Fitting Kit, NMEA2000
Raymarine P79S Smart Depth In Hull Depth Transducer with Fitting Kit, SeaTalk ng
Raymarine P66 Transom Mount Depth Transducer
Raymarine P120 Speed/Temperature Low-Profile Plastic Through-Hull Transducer (Retractable)
ST900/P120 Speed/Temperature Low Profile Retractable Through Hull Analog Transducer - 20.0m Cable
Raymarine ST900/B120 Speed/Temp Thru-Hull Transducer Cable, 13.7 m
Raymarine ST950/P17 Speed/Temp Thru-Hull Transducer Cable, 10 m
Raymarine P371 Speed Temperature Shorty Plastic Through Hull Transducer
Raymarine ST69 Speed Temperature Transom Mount Transducer
Raymarine P120 L Speed/Temperature Low-Profile Plastic Through-Hull Transducer (Retractable)
Raymarine DST800 Plastic Depth, Speed, Temperature Through Hull Transducer
Raymarine P66 Depth, Speed, Temperature Transom Mount Transducer
Raymarine B744V Bronze Depth, Speed, Temperature Through Hull Transducer
Raymarine B744VL Bronze Depth, Speed, Temperature Through Hull Transducer
Raymarine Short Arm Wind Vane Transducer with 30m Cable
Raymarine Long Arm Wind Vane Transducer with 50m Cable
Raymarine RotaVecta Wind Transducer with 20m Cable
Raymarine Autopilot Rudder Angle Transducer
Raymarine P48 Depth, Temp 200 kHz Transom Mount Transducer
Raymarine P66 600W 50-200 kHz Speed, Depth and Temperature Transom Mount Transducer
Raymarine i40 Depth Display with P7D Through Hull Depth Transducer
Raymarine i40 Bidata Display with P371 and P7D Through Hull Transducers
Raymarine B120 Speed Temperature Low Profile Bronze Through Hull Retractable Transducer
Raymarine Short Arm Wind Transducer (NO Cable)
Raymarine Long Arm Wind Transducer (NO Cable)
Raymarine Depth Transducer
Raymarine Depth Transducer (Depth, Retractable - 80m Range)
Raymarine Active Depth Temp Transducer
Connections
| Connections | SeaTalkng backbone; 1x SeaTalkng spur; 5x transducer connections with spade terminals |
| Transducer inputs | Speed/Temperature, Depth, Wind and Rudder Angle analogue transducers |
Power
| Power consumption | 1.5 W typical |
| Operating voltage range | 9 V dc to 16 V dc |
| Nominal supply voltage | 12 V dc |
| Current | < 150 mA peak operating current |
| LEN (NMEA 2000 Load Equivalency Number) | 3 |
Environmental
| Ingress protection | IPx2 (splash proof) |
| Relative humidity | Max. 95% |
| Storage temperature | -25°C to +70°C |
| Operating temperature | -15°C to +55°C |
Conformance
| Standards | Europe 2004/108/EC; Australia and New Zealand C-Tick, Compliance Level 2 |
