Raymarine P120 Speed Temperature Low Profile Plastic Through Hull Retractable Trans
Manufacturer Part Number:
E70673
Manufacturer Part Number:
E70673

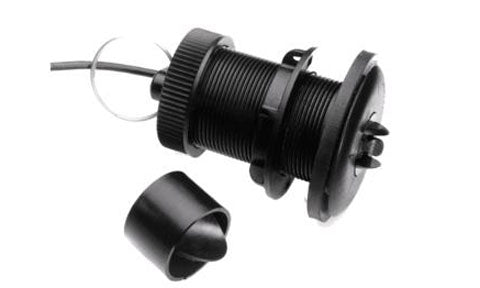

The P120 Speed Temperature Low Profile Plastic Through Hull Retractable Transducer. Compatible hull material: metal and fiberglass. 13.7 meter cable with spade connectors. Hole diameter for installation: 2 inch. Compatible with iTC-5, i50 ST50, ST60, ST40 and i40 instruments.
Replaces old part number E26031.
Home or Marina Delivery
Pick up at Hamble
More Information
Raymarine P120 Speed Temperature Low Profile Plastic Through Hull Retractable Trans
Raymarine P120 L Speed Temperature Low Profile Plastic Through Hull Retractable Trans
Raymarine ST69 Speed Temperature Transom Mount Transducer
Raymarine P371 Speed Temperature Shorty Plastic Through Hull Transducer
Raymarine B120 Speed Temperature Low Profile Bronze Through Hull Retractable Transducer
Specifications
- Weight:
- 0.7 kg (1.4 lb)—Plastic
- 1.3 kg (2.8 lb)—Bronze
- 1.6 kg (3.5 lb)—Stainless Steel
- Speed Range: 2 knots to 45 knots (2 MPH to 52 MPH)
- Acoustic Window: Urethane
- Hull Deadrise: Up to 22°
- Data Update Rate: 1 per second
- Pressure Rating: 3 m (10’)
- Pulse Rate: 17,000 p/nm* (4.8 Hz per knot)—*p/nm = pulses per nautical mile
- Supply Voltage: 9 VDC to 16 VDC
- Supply Current: <200 mA
- Standard Cable Length: 6 m (20’) NMEA 2000 cable, 9 m (30’) Analog
- Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
- Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
- CE Regulation: Complies to IERC60945
