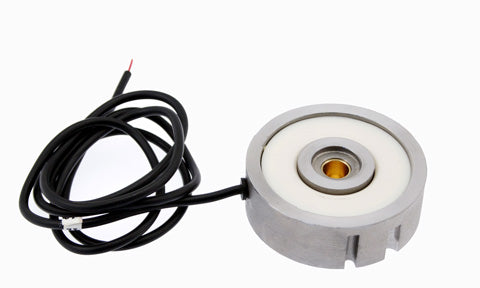

Raymarine Linear Drive Clutch Coil Assembly
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine Linear Drive Clutch Coil Assembly is a genuine replacement electromagnetic clutch coil for linear autopilot drive units. The clutch coil generates the magnetic field that engages the clutch mechanism when the autopilot is active, and releases it to allow unobstructed manual steering when disengaged. A failed coil results in loss of clutch engagement. Replacing the coil assembly restores reliable autopilot engagement and free manual steering on disengagement.
PRODUCT DETAILS
- Genuine Raymarine clutch coil assembly for linear drives
- Generates electromagnetic field to engage/disengage autopilot clutch
- Restores reliable autopilot engagement and manual steering release
- Replaces failed clutch coil on Raymarine linear drive units
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Type 1 12 Volt Autopilot Short Shaft Linear Drive (up to 11,000kg)
Raymarine Type 2 12 Volt Autopilot Short Shaft Linear Drive (up to 15,000kg)
Raymarine Type 2 12 Volt Autopilot Long Shaft Linear Drive (up to 20,000kg)
Raymarine Type 2 24 Volt Autopilot Short Shaft Linear Drive (up to 15,000kg)
Raymarine Type 2 24 Volt Autopilot Long Shaft Linear Drive (up to 20,000kg)
Raymarine Short Stroke Linear Drive Module
Raymarine Long Stroke Linear Drive Module
No compatible products found.
Compatibility
| Fits | Raymarine linear autopilot drive units |
| Part Type | Clutch Coil Assembly (electro-magnetic) |
| Function | Engages and releases autopilot clutch via electromagnetic field |
