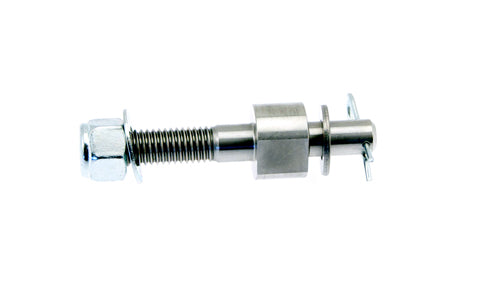

Raymarine Linear Drive Front Anchorage Pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine Linear Drive Front Anchorage Pin is a genuine hardware component that provides the fixed-end attachment point for the linear autopilot drive unit. Correctly securing the anchorage pin to the boat's structural members is essential for safe and effective autopilot operation, as it bears the reaction forces generated when the drive pushes the tiller arm or rudder quadrant. Replacing a worn or damaged pin ensures the drive remains securely and accurately located.
PRODUCT DETAILS
- Genuine Raymarine anchorage pin for linear drive fixed end
- Secures linear drive unit to boat structural members
- Bears reaction forces during autopilot steering
- Replaces worn or damaged anchorage pin
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Type 1 12 Volt Autopilot Short Shaft Linear Drive (up to 11,000kg)
Raymarine Type 2 12 Volt Autopilot Short Shaft Linear Drive (up to 15,000kg)
Raymarine Type 2 12 Volt Autopilot Long Shaft Linear Drive (up to 20,000kg)
Raymarine Type 2 24 Volt Autopilot Short Shaft Linear Drive (up to 15,000kg)
Raymarine Type 2 24 Volt Autopilot Long Shaft Linear Drive (up to 20,000kg)
Raymarine Short Stroke Linear Drive Module
Raymarine Long Stroke Linear Drive Module
No compatible products found.
Compatibility
| Fits | Raymarine linear autopilot drive units |
| Part Type | Front Anchorage Pin |
| Function | Fixed-end mounting pin bearing drive reaction forces |
