Raymarine Metal Trunnion Mounting Kit for Axiom 12
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

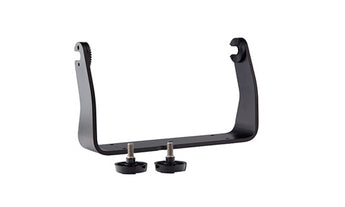

Metal trunnion mounting kit for the Raymarine Axiom 12 multifunction display, and also suitable for the Axiom+ 12. It provides a metal trunnion yoke and hand knobs in place of the standard bracket, so the display can be surface-mounted on a dash, pod, pedestal or overhead bracket and tilted to the best viewing angle.
The kit supplies the trunnion bracket assembly, two tightening knobs and the rear bracket cover for the display. Angle is set by hand with the knobs, and the display can be lifted out of the yoke for storage without tools.
The trunnion suncover is a separate item - use R70533 for a trunnion or surface-mounted Axiom 12. If the display is instead to be fitted through the console from behind, use rear mounting kit R70534.
PRODUCT DETAILS
- Metal trunnion mounting kit for the Axiom 12 and Axiom+ 12 display
- Surface mounting on a dash, pod, pedestal or overhead bracket
- Hand knobs set the viewing angle; display lifts out for storage
- Includes trunnion bracket assembly, two knobs and rear bracket cover
- Suncover R70533 and rear mounting kit R70534 available separately
- 2 knobs
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Physical
| Compatible display | Axiom 12 / Axiom+ 12 |
| Mounting type | Trunnion |
| Material | Metal |
