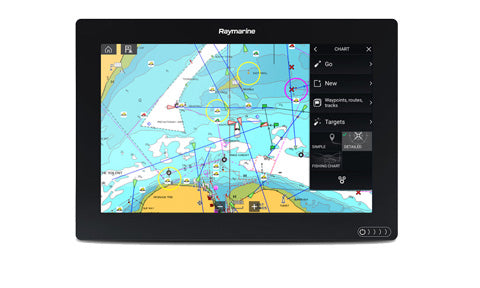

Raymarine Axiom 12, 12 inch Multifunction Display
Description
The Axiom 12 delivers fast and fluid all-in-one navigation thanks to a quad-core processor and Raymarine's powerful LightHouse operating system. The 12 inch optically bonded IPS multi-touch display is easy to read and easy to personalise for your navigation style.
The Axiom 12 is supplied as a chartplotter only display. When you are ready to fish, connect a Raymarine CHIRP sonar module or a compatible transducer to add high-performance fishfinding, and expand further with Quantum radar, FLIR thermal cameras, instruments and Evolution autopilot.
A built-in GPS / GLONASS receiver gets you underway quickly, while standard Wi-Fi and Bluetooth connect the latest Raymarine apps for tablets and smartphones. RayNet Ethernet and NMEA 2000 networking let you grow the system with Quantum radar, CHIRP and RealVision 3D sonar modules, FLIR thermal cameras, audio, instruments and Evolution autopilot.
PRODUCT DETAILS
- Fast and fluid 12 inch multi-touch multifunction display with a quad-core processor
- Powered by the intuitive Raymarine LightHouse operating system
- Chartplotter only display, ready to expand with a Raymarine CHIRP sonar module or transducer
- Built-in GPS / GLONASS receiver tracks up to 28 satellites for a quick, accurate fix
- Standard Wi-Fi and Bluetooth for Raymarine mobile apps on tablets and smartphones
- RayNet Ethernet and NMEA 2000 networking for radar, sonar modules, cameras, instruments and autopilot
- Supports LightHouse, Navionics and C-MAP charts via the MicroSDXC card slot
- MFD (chartplotter)
- Trunnion bracket
- Trunnion knobs x 2
- Trunnion mount suncover
- Panel mount gasket
- Threaded studs (M5x58) x 4
- Thumb nuts (M5) x 4
- Documentation
- Power / NMEA 2000 cable (1.5 m (4.92 ft) power lead, 0.5 m (1.64 ft) NMEA 2000 lead)
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
RNS-5 Gigabit Raynet Network Switch
Raymarine i70s Multifunction Instrument Display
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Raymarine AIS700 Class B Transceiver With Integrated Splitter
Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables
Raymarine Ray73 VHF Radio Integrated GPS and AIS
Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Raymarine FLIR M300C Pan and Tilt Visible Light IP Camera
Raymarine Cyclone Radar Pedestal 55 Watts
Raymarine Cyclone Pro Radar Pedestal 110 Watts
Yachtsense Link Marine Cloud Router
Raymarine CAM300 Eyeball CCTV Day and Night Video Camera
Raymarine LightHouse Chart (preloaded with UK & Ireland charts) on 32Gb micro SD card
Raymarine Lighthouse Chart: R70794-MED - Mediterranean - SD-Card
Raymarine LightHouse Chart (preloaded with Northern Europe charts) on 32Gb micro SD card
RAYMARINE LIGHTHOUSE CHART (PRELOADED WITH WESTERN EUROPE CHARTS) ON 32GB MICRO SD CARD
Raymarine Evolution EV-100 Wheel Autopilot Pack
Raymarine Evolution EV-100 Tiller Autopilot Pack
Raymarine Evolution EV-200 Power Autopilot Pack with Type 1 Hydraulic Pump
Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power and Data Cable
Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)
Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power and Data Cables
Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables
Raymarine CAM300 ClearCruise Augmented Reality Pack with AR200 Sensor
Raymarine CP570 Professional CHIRP Sonar Module
Raymarine CP370 Digital Sonar Module
Raymarine CP470 CHIRP Sonar Module
Raymarine RVX1000 RealVision Black Box 1kW, DownVision, SideVision and RealVision 3D Sonar
Display
| Screen size | 12.1 inch (diagonal) |
| Resolution | WXGA 1280 x 800 |
| Type | IPS (In-Plane Switching) |
| Illumination | 1200 nits / 1200 cd/m2 |
| Colour depth | 24-bit |
| Simultaneous touches | 2 |
Connections
| Network | 1 x RayNet (Ethernet) connector (10 / 100 Mbits/s) |
| NMEA 2000 | 1 x DeviceNet male connector (built into power cable) |
| Accessory | 1 x USB Micro B |
| Wi-Fi | 1 x 802.11 b/g/n |
| Bluetooth | 1 x Bluetooth V4.0 |
| External storage | 1 x MicroSDXC card slot |
Networking
| Internal storage | 4 GB solid state (2 GB usable) |
| LEN (NMEA 2000 Load Equivalency Number) | 1 |
GNSS receiver
| Channels | Track up to 28 satellites simultaneously |
| GNSS compatibility | GPS, GLONASS, BeiDou |
| SBAS compatibility | WAAS, EGNOS, MSAS, GAGAN, QZSS |
| Position accuracy | Without SBAS: 15 m or better 95% of the time; with SBAS: 5 m or better 95% of the time |
| Geodetic datum | WGS-84 (alternatives can be selected on the MFD) |
| Operating frequency | 1574 MHz to 1605 MHz |
| Antenna | Internal, ceramic chip mounted near the top of the unit |
| Time to first fix from cold start | Less than 2 minutes |
Physical
| Dimensions (trunnion mounted) | Width 314 mm (12.36 in), Height 226.72 mm (8.93 in), Depth including cables 178 mm (7.01 in) |
Power
| Power consumption (maximum) | 15.48 W |
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 8 V dc to 16 V dc |
| Fuse rating | 7 A |
Environmental
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Up to 93% at 40 C (104 F) |
| Waterproof rating | IPx6 and IPx7 |
