Raymarine

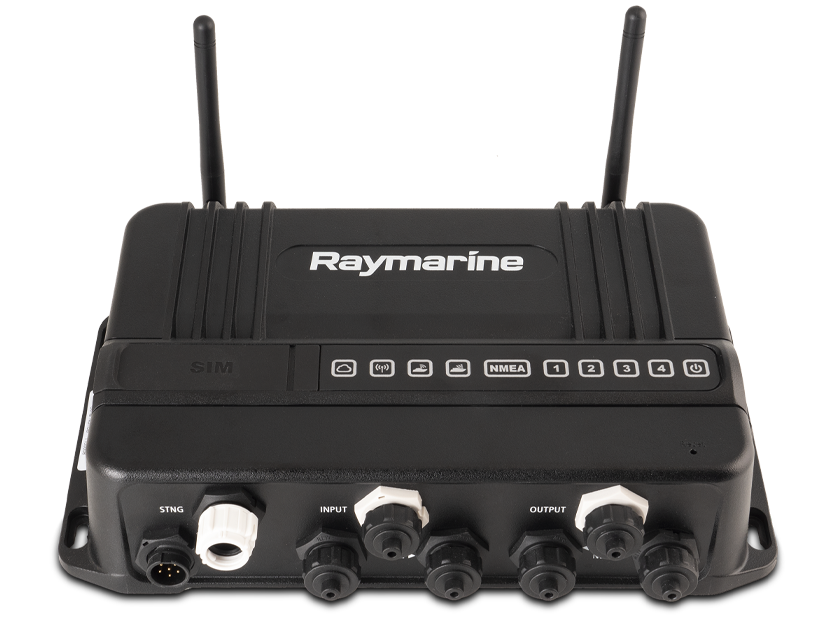

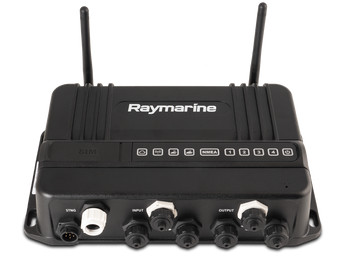

Yachtsense Link Marine Cloud Router
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Raymarine YachtSense Link keeps a vessel and everyone aboard connected, wherever the cruising takes you. This rugged marine mobile router combines 4G (LTE) mobile broadband, onboard Wi-Fi and four RayNet Ethernet ports, automatically switching between marina Wi-Fi and mobile networks so devices stay online. Crew and family can connect Axiom displays, phones, tablets, smart TVs and PCs to a single unified network.
Paired with the Raymarine app, YachtSense Link delivers remote access to the Raymarine network and the reassurance of GeoFence vessel monitoring, alerting you if the boat moves in or out of a safety zone. An integrated GPS, dual-SIM support for international roaming and a 5-in-1 antenna keep positioning and connectivity solid, while four low-voltage digital switching channels let you monitor sensors and alarms or control onboard equipment. The IPX6 enclosure is shock and vibration resistant for life on the water.
PRODUCT DETAILS
- Multi-purpose 4G (LTE) marine router with onboard Wi-Fi and integrated GPS
- Automatically switches between marina Wi-Fi and mobile networks
- 4 x RayNet Ethernet ports plus a SeaTalkng / NMEA 2000 connection
- Dual-SIM support and a 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN)
- Remote GeoFence vessel monitoring with the Raymarine app (subscription required)
- 4 low-voltage digital input and 4 output channels; rugged IPX6 enclosure
- YachtSense Link Marine Cloud Router (supplied with grounding-point fixings and protective caps fitted)
- 4 x mounting fixings (PA 4 x 25 mm self-tapping screws)
- Documentation
- 5-in-1 antenna (GNSS, Cellular, Diversity, DOCK WLAN) with 5 m cables, M20 nut and mounting gasket
- 2 x dipole antenna (BOAT Wi-Fi)
- RayNet to RJ45 cable 1 m
- SeaTalkng spur cable 1 m
- Power cable with 8 A fitted fuse 1.5 m
- Input cable (5-wire) 0.5 m
- Output cable (8-wire) 0.5 m
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Axiom 2 Pro 9 RVM
Image coming soonRaymarine Axiom 2 XL 16 Chartplotter Kit
Image coming soonRaymarine Axiom 2 XL 19 Chartplotter Kit
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Image coming soonRaymarine Axiom 2 XL 22 Chartplotter Kit
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Image coming soonRaymarine Axiom 2 XL 24 Chartplotter Kit
Raymarine Axiom 2 Pro 12 S
Power
| Nominal supply voltage | 12 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
Connectivity
| Ethernet | 4 x RayNet Ethernet ports |
| Marine network | SeaTalkng / NMEA 2000 port |
| Digital switching channels | 4 x input and 4 x output low-voltage digital channels |
| GNSS | Integrated GPS with 5-in-1 antenna |
| SIM | Dual SIM card support |
Cellular
| Mobile broadband | 4G (LTE) - LTE category 4 |
| LTE-FDD bands | B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 |
| LTE-TDD bands | B38/B39/B40/B41 |
| WCDMA bands | B1/B2/B4/B5/B6/B8/B19 |
| GSM bands | B2/B3/B5/B8 |
Network
| Maximum download speed | 150 Mbps |
| Maximum upload speed | 50 Mbps |
Wi-Fi
| BOAT Wi-Fi (access point) | 2.4 GHz: 13.28 dBm |
| DOCK WLAN (station) | 2.4 GHz, 5 GHz and 5.8 GHz |
Environmental
| Waterproof rating | IPx6, IPx7 |
| Operating temperature | -25 C to +55 C |
| Storage temperature | -30 C to +70 C |
| Relative humidity | Max. 93% |
Standards
| Certification | NMEA 2000 certified; Radio Equipment Directive 2014/53/EU; FCC Part 15C and 15E; PTCRB 4G/3G/2G; EN 60945:2002 |
Physical
| Dimensions (L x H x D) | 242.00 mm x 162.20 mm x 63.00 mm |
| Weight | 1.03 kg (2.26 lb) |
