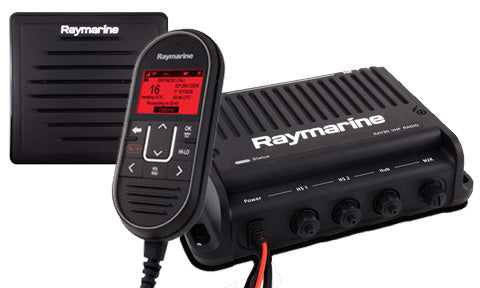

Raymarine Ray90 Black Box VHF inc Wired Handset and Passive Speaker
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Ray90 is Raymarine's modular black-box VHF system, supplied here as a complete kit with a wired handset and passive speaker. The base station hides away out of sight and drives up to two wired handsets via its HS1 and HS2 connectors, plus a wireless hub for cordless handsets, making it ideal for multi-station vessels.
It transmits Class D DSC at a selectable 1W or 25W across all US, International and Canadian VHF marine bands, with a 25W / 12W loud hailer output and fog-horn function. A passive GPS antenna connects via the TNC port (external antenna required), and the VHF antenna or passive splitter connects via the SO239. Networking is via NMEA 2000 / SeaTalk NG (LEN 1), with NMEA 0183 input and output on the data cable. Built to IPX6 and IPX7, the Ray90 is engineered for demanding installations. The base station, passive speaker, wired handset and full mounting hardware are all included.
PRODUCT DETAILS
- Modular black-box Class D DSC VHF, 25W / 1W transmit power
- Supplied with wired handset and passive speaker
- Drives up to two wired handsets plus a wireless hub for cordless handsets
- 25W / 12W loud hailer and fog-horn output
- NMEA 2000 / SeaTalk NG networking (LEN 1) with NMEA 0183 in and out
- IPX6 and IPX7 waterproof construction
- Ray90 VHF DSC radio base station (with fitted power and data cable)
- Wired handset
- Passive speaker with bezel and mounting gasket
- Wired handset holster and hook plate
- Through-panel cable mounting kit (plate, gasket, nut, screws, dust cap)
- Wired handset adaptor cable with RCA audio, 400 mm (1.3 ft)
- DeviceNet to SeaTalk NG adaptor cable, 1 m (3.28 ft)
- Mounting screws
- Documentation
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Wireless Handset Ray63-73-90-91
Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 15m Extension Cable
Raymarine Ray90 Ray91 Passive Speaker
Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 10m Extension Cable
Image coming soonBezel Passive / Active speaker Ray90-91
Raymarine RayMic for Ray60, Ray70, Ray90 and Ray91 VHF Radio
Raymarine Ray60, Ray70, Ray90 and Ray91 Raymic 5m Extension Cable
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 12 S
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Physical
| Operating temperature | -20C (-4F) to +60C (140F) |
| Storage temperature | -25C (-13F) to +70C (158F) |
| Relative humidity | 95% |
| Waterproofing | IPX6 & IPX7 |
| Base station dimensions | 217 mm x 235.95 mm x 30 mm (panel-mount body); fitted power cable 1.2 m, data cable 420 mm |
Power
| Nominal supply voltage | 12 V dc (with over-voltage protection) |
| Operating voltage range | 10.2 V dc to 16 V dc |
| Fuse requirements | Inline fuse 10 A; Thermal breaker 7 A |
| Current consumption | Less than 6 A at high power (13.6 V); Standby 600 mA; Receive 2 A; Loud hailer 3 A (8 Ohm) / 6 A (4 Ohm) |
| NMEA 2000 LEN | 1 |
Transmitter
| TX channels | All available US, International and Canadian VHF marine bands |
| TX frequency range | 156.025 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| TX power output | Low power 1 W; High power 25 W |
| Channel spacing | 25 kHz |
| Frequency stability | +/- 1.5 ppm |
| Maximum deviation | +/- 5 KHz |
| Spurious emissions | Better than -36 dBm at 25 W (Less than 0.25 uW) |
| Antenna impedance | 50 Ohms (typical) |
Receiver
| Receiver type | Double conversion super heterodyne |
| RX frequency range | 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels) |
| Sensitivity | Better than 1 microvolt EMF @ 20dB SINAD |
| Squelch sensitivity | Less than -2 dBuV EMF |
| Adjacent channel selectivity | More than 70 dB |
| Spurious response rejection | More than 70 dB |
| Intermodulation rejection | More than 68 dB |
| Audio distortion | Less than 10% |
| Receiver sensitivity | Distance 119dBm (0.25uV) @ 12dB SINAD; Local 110dBm (0.7uV) @ 12dB SINAD (typical) |
General
| Wired handsets | x 2 via HS1 and HS2 connectors |
| Wireless hub | x 1 via Hub connector |
| GNSS (GPS) antenna | x 1 via GPS connector (TNC) |
| VHF antenna / splitter | x 1 via VHF connector (50 Ohm SO239) |
| NMEA 0183 | 1 x input and 1 x output via bare-ended wires on data cable |
| NMEA 2000 / SeaTalk NG | x 1 via N2K (DeviceNet) connector |
| Loud hailer | x 1 via bare-ended wires on data cable |
| DSC class | Class D |
GPS
| GNSS channels | 72 |
| GNSS compatibility | GPS, GLONASS, Beidou |
| SBAS compatibility | QZSS, WAAS, EGNOS, MSAS, GAGAN |
| Cold start | 29 seconds |
| Refresh rate | 20 Hz (Concurrent GNSS) |
| GNSS antenna | External passive antenna required (A80288 available as accessory) |
| Horizontal position accuracy | Autonomous 2.5 m (8.2 ft); SBAS 2 m (6.56 ft) |
AIS
| AIS receiver | No (Ray90) |
