Raymarine RS150 10Hz GPS-Antenna Seatalk ng
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

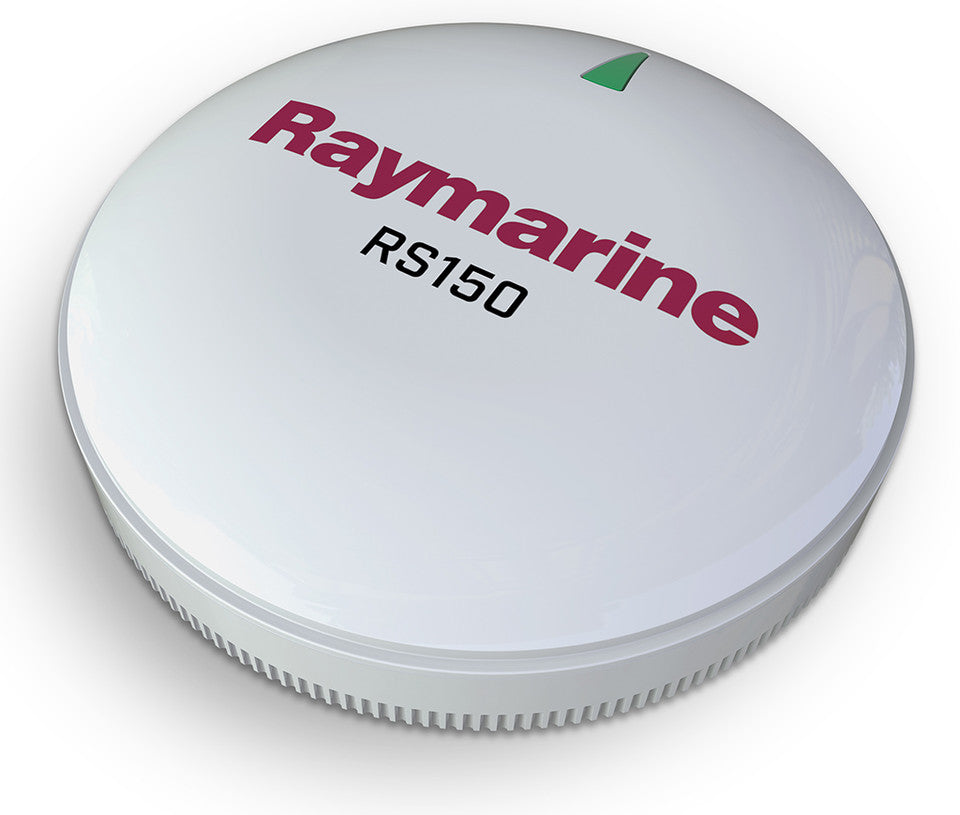

The Raymarine RS150 is a high-performance, remotely mounted GPS sensor for SeaTalkng navigation systems. Its 72-channel receiver delivers fast 10 Hz position updates and supports both GPS and GLONASS satellite constellations, with SBAS augmentation (WAAS, EGNOS, MSAS and GAGAN) for improved accuracy of better than 5 metres.
The rugged, waterproof housing is designed for simple surface mounting and draws just 30 mA from the SeaTalkng network. It is supplied with a 3 m SeaTalkng spur cable and can be pole mounted using the optional A80370 pole-mount kit.
PRODUCT DETAILS
- 72-channel GPS with 10 Hz position updates
- GNSS receiver with GPS and GLONASS support
- SBAS enabled (WAAS, EGNOS, MSAS, GAGAN)
- Position accuracy better than 5 m (95%)
- Low power draw of 30 mA (1 LEN), powered by SeaTalkng
- IPX6 waterproof; surface mountable
No exploded diagram available for this product.
No compatible transducers listed for this product.
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 Pro 12 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Performance
| Channels | 72 |
| Update rate | 10 Hz |
| Positioning | GPS and GLONASS (GNSS) |
| Differential / SBAS | WAAS, EGNOS, MSAS, GAGAN |
| Position accuracy | < 5 m, 95% |
Electrical
| Supply voltage | 9-16 V dc (SeaTalkng powered) |
| Current draw | 30 mA (1 LEN) |
Environmental
| Waterproof rating | IPX6 |
| Operating temperature | -25 C to +55 C |
General
| Network | SeaTalkng / NMEA 2000 (via adaptor) |
| Supplied cable | 3 m SeaTalkng spur cable |
