Raymarine Raystar 150 10Hz GPS-Antenna Seatalk ng and Pole Mount
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

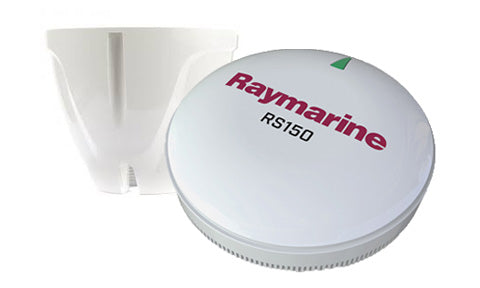

The Raymarine Raystar 150 is the RS150 GPS sensor supplied complete with its dedicated pole-mount adaptor. The 72-channel receiver provides fast 10 Hz position updates with GPS and GLONASS support and SBAS augmentation (WAAS, EGNOS, MSAS, GAGAN) for accuracy better than 5 metres.
The pole mount raises the sensor clear of obstructions for the best satellite view, and can also be used to rail mount the unit with a third-party rail clamp (1 inch, 14 TPI thread). The sensor draws 30 mA from the SeaTalkng network and is supplied with a 3 m SeaTalkng spur cable.
PRODUCT DETAILS
- 72-channel GPS with 10 Hz position updates
- GNSS receiver with GPS and GLONASS support
- SBAS enabled (WAAS, EGNOS, MSAS, GAGAN)
- Position accuracy better than 5 m (95%)
- Low power draw of 30 mA (1 LEN), powered by SeaTalkng
- IPX6 waterproof; surface mountable
- Supplied with the dedicated RS150 pole-mount adaptor
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 12 S
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Performance
| Channels | 72 |
| Update rate | 10 Hz |
| Positioning | GPS and GLONASS (GNSS) |
| Differential / SBAS | WAAS, EGNOS, MSAS, GAGAN |
| Position accuracy | < 5 m, 95% |
Electrical
| Supply voltage | 9-16 V dc (SeaTalkng powered) |
| Current draw | 30 mA (1 LEN) |
Environmental
| Waterproof rating | IPX6 |
| Operating temperature | -25 C to +55 C |
General
| Network | SeaTalkng / NMEA 2000 (via adaptor) |
| Supplied cable | 3 m SeaTalkng spur cable |
| Mounting | Pole mount adaptor included; rail mount via 1 inch 14 TPI clamp |
