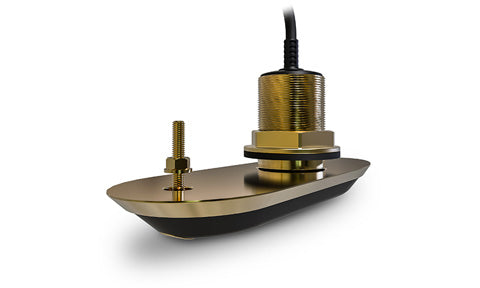

Raymarine RV-200 RealVision 3D Bronze Through Hull Transducer 0 Degree
Manufacturer Part Number:
A80465
Manufacturer Part Number:
A80465
The RV-200 RealVision 3D transducers combine CHIRP DownVision, CHIRP SideVision, High Frequency CHIRP, and RealVision 3D into a single transducer housing. Through hull bronze transducer for boats with 0 degree hull dead rise, 25 Pin direct connect to Axiom RealVision multifunction display 8 meter cable.
Home or Marina Delivery
Pick up at Hamble
More Information
Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 8 pin Y-Cable
Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin and 7 pin Y-Cable
Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 8 pin Y-Cable
Raymarine Axiom RV Adaptor Cable 25 pin to 25 pin and 7 pin Y-Cable
Raymarine Axiom RV Adaptor Cable 25 pin to 9 pin
Raymarine Axiom RV Adaptor Cable 25 pin to 8 pin
Raymarine Axiom RV Adaptor Cable 25 pin to 7 pin
Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers
Raymarine Axiom RV 45mm Right Angle Connector for Axiom Transducers
Raymarine Axiom 0.3m Y-Cable for RealVision 3D Transducers
Raymarine Axiom 3m RealVision 3D Transducer Extension Cable 25 pin
Raymarine Axiom 5m RealVision 3D Transducer Extension Cable 25 pin
Raymarine Axiom 8m RealVision 3D Transducer Extension Cable 25 pin
Axiom 3D Transducer Navigation
Raymarine Axiom 9 Pro-S 9 Inch MFD
Raymarine Axiom 12 Pro-S 12 Inch MFD
Raymarine Axiom 16 Pro-S 16 Inch MFD
Raymarine Axiom 9 Pro-RVX 9 Inch MFD DV SV Real Vision 3D Sonar
Raymarine Axiom 12 Pro-RVX 12 Inch MFD DV SV RealVision 3D Sonar
Raymarine Axiom 16 Pro-RVX 16 Inch MFD DV SV RealVision 3D Sonar
RV-420 Stainless Steel Through Hull Transducer Pack (with 20° deadrise compensation)
Designed for inboard or outboard boats, the RV-420 stainless steel through hull transducer system lets you easily identify structures and locate fish with the life-like clarity of RealVision 3D™ sonar.
The RV-420 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVision™, SideVision™, high frequency CHIRP fish targeting and RealVision 3D™ sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You’ll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-420 system also has a built-in fast response water temperature sensor for quick, accurate readings.
Raymarine’s RV-420 Plastic Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal tilt to accommodate hull deadrise angles from 13° to 20°. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-420 system works even works great on trailered boats.
The RV-420 system features rugged stainless steel through hull bodies suitable for fiberglass, wood or metal hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180° of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail and the overall cable length when fully assembled is 10 meters (33 feet.)
- RV-420P stainless steel port transducer array with 2-meter cable
- RV-420S plastic starboard transducer array with 2-meter cable
- RealVision 3D Transducer Y-Cable
- RealVision 3D 8-meter (26-feet) Transducer Extension Cable
- Anti-rotation bolt kit
- Installation instructions
