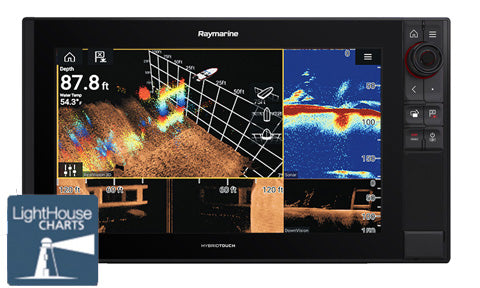

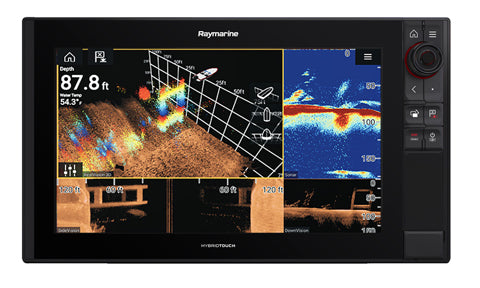

Raymarine Axiom Pro 16 RVX Multifunction Display with RealVision 3D and 1kW CHIRP Sonar
Description
The Raymarine Axiom Pro 16" RVX is a premium all-in-one HybridTouch multifunction display that brings together a chartplotter, RealVision 3D sonar and a 1 kW CHIRP sonar in a single super bright IPS screen. A blazing fast quad core processor runs the smart LightHouse operating system, delivering a fluid and intuitive navigation experience whether you control the display by touch or with its dedicated physical keypad.
Built-in RealVision 3D combines CHIRP DownVision, SideVision and RealVision 3D imaging with a High CHIRP conical channel, while the separate 1 kW CHIRP channel reaches depths of up to 914.4 m (3,000 ft) for serious offshore fishing. An internal 10 Hz GNSS receiver, dual RayNet Ethernet, NMEA 2000, NMEA 0183, Wi-Fi and Bluetooth let you expand the Axiom Pro RVX into an advanced navigation network of displays, CHIRP radar, cameras and instruments.
PRODUCT DETAILS
- 9, 12 and 16 inch all-in-one HybridTouch multifunction display with touchscreen and physical keypad control
- Blazing fast quad core processor running the smart LightHouse operating system for fluid, intuitive navigation
- Super bright IPS display for clear viewing across wide angles and in bright sunlight
- Built-in RealVision 3D sonar with CHIRP DownVision, SideVision and a High CHIRP conical channel
- Integrated 1 kW CHIRP sonar for deep-water target detection down to 914.4 m (3,000 ft)
- Internal 10 Hz GNSS receiver supporting GPS, Galileo, GLONASS and BeiDou
- Dual RayNet Ethernet, NMEA 2000 (SeaTalkng), NMEA 0183, Wi-Fi and Bluetooth connectivity
- Expandable into an advanced navigation network with multiple displays, CHIRP radar and more
- Multifunction display
- Front bezel pieces and upper keypad
- Panel mount gasket
- Sun cover
- Trunnion bracket
- Trunnion knobs x 2
- Fixings (M4x40 pan head bolt x 4, M4 Nylock nut x 4, M4 washer x 4)
- Optional grounding connection (M3x5 screw, M3 spring washer, M3 crimp terminal)
- Power/Video/NMEA 0183 cable 1.5 m (4.92 ft)
- Documentation
- RayNet (Female) to RayNet (Female) network cable 2 m (6.56 ft)
- DeviceNet to SeaTalkng adaptor cable 120 mm (4.7 in)
No exploded diagram available for this product.
Raymarine CPT-110 DownVision Through Hull Transducer
Raymarine CPT-S 0° Bronze Through Hull Transducer
Raymarine CPT-S 20° Urethane Through Hull Transducer
Raymarine CPT-S 12° Urethane Through Hull Transducer
Raymarine RV-100 RealVision 3D Transom Mount Transducer
Raymarine RV-200 RealVision 3D Through Hull Transducer
Raymarine RV-212P RealVision 3D Through Hull Transducer
Raymarine RV-212S RealVision 3D Through Hull Transducer
Raymarine RV-220P RealVision 3D Through Hull Transducer
Raymarine RV-220S RealVision 3D Through Hull Transducer
Raymarine RV-300 RealVision 3D Through Hull Transducer
Raymarine RV-312P RealVision 3D Through Hull Transducer
Raymarine RV-312S RealVision 3D Through Hull Transducer
Raymarine RV-320P RealVision 3D Through Hull Transducer
Raymarine RV-320S RealVision 3D Through Hull Transducer
Raymarine RV-400 RealVision 3D Through Hull Transducer
Raymarine RV-412P RealVision 3D Through Hull Transducer
Raymarine RV-412S RealVision 3D Through Hull Transducer
Raymarine RV-420P RealVision 3D Through Hull Transducer
Raymarine RV-420S RealVision 3D Through Hull Transducer
Raymarine CPT-S In-Hull Transducer
Raymarine CPT-S 0° Urethane Through Hull Transducer
Raymarine CPT-S 12° Bronze Through Hull Transducer
Raymarine CPT-S 20° Bronze Through Hull Transducer
Raymarine RV-212 RealVision 3D Through Hull Transducer
Raymarine RV-220 RealVision 3D Through Hull Transducer
Raymarine RV-312 RealVision 3D Through Hull Transducer
Raymarine RV-320 RealVision 3D Through Hull Transducer
Raymarine RV-412 RealVision 3D Through Hull Transducer
Raymarine RV-420 RealVision 3D Through Hull Transducer
RNS-5 Gigabit Raynet Network Switch
Raymarine i70s Multifunction Instrument Display
Raymarine p70s Autopilot Control Head
Raymarine p70Rs Autopilot Control Head
Raymarine AIS700 Class B Transceiver With Integrated Splitter
Raymarine Quantum 2 Q24D Wireless CHIRP Radar no Cables
Raymarine Ray73 VHF Radio Integrated GPS and AIS
Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Raymarine FLIR M300C Pan and Tilt Visible Light IP Camera
Raymarine Cyclone Radar Pedestal 55 Watts
Raymarine Cyclone Pro Radar Pedestal 110 Watts
Yachtsense Link Marine Cloud Router
Raymarine CAM300 Eyeball CCTV Day and Night Video Camera
Raymarine LightHouse Chart (preloaded with UK & Ireland charts) on 32Gb micro SD card
Raymarine Lighthouse Chart: R70794-MED - Mediterranean - SD-Card
Raymarine LightHouse Chart (preloaded with Northern Europe charts) on 32Gb micro SD card
RAYMARINE LIGHTHOUSE CHART (PRELOADED WITH WESTERN EUROPE CHARTS) ON 32GB MICRO SD CARD
Raymarine Evolution EV-100 Wheel Autopilot Pack
Raymarine Evolution EV-100 Tiller Autopilot Pack
Raymarine Evolution EV-200 Power Autopilot Pack with Type 1 Hydraulic Pump
Raymarine Quantum Q24C Wireless CHIRP Radar with 10m Power and Data Cable
Raymarine Evolution EV-150 Power Autopilot Pack (No Drive)
Raymarine Quantum 2 Q24D Wireless CHIRP Radar with 10m Power and Data Cables
Raymarine Cyclone 55 Watts 3ft Open Array Radar with 15m Cables
Raymarine CAM300 ClearCruise Augmented Reality Pack with AR200 Sensor
Raymarine AR200 ClearCruise Augmented Reality GPS and Heading Sensor
Raymarine CP570 Professional CHIRP Sonar Module
Raymarine CP470 CHIRP Sonar Module
Display
| LCD size (diagonal) | 15.6" |
| Aspect ratio | 16:10 |
| Touchscreen | HybridTouch (touchscreen plus physical keypad). 1 to 16 simultaneous touches |
Sonar
| Sonar channels | RealVision 3D (CHIRP DownVision, SideVision, RealVision 3D and High CHIRP conical) plus 1 kW CHIRP |
| Transducer connections | 25 pin RealVision connector (CPT-S transducers require the A80490 adaptor cable) and 11 pin 1 kW connector |
| RealVision depth range | High CHIRP conical: 0.6 m (2 ft) to 274 m (900 ft); DownVision: 0.6 m (2 ft) to 183 m (600 ft); SideVision: 0.6 m (2 ft) to 91 m (300 ft); RealVision 3D: 0.6 m (2 ft) to 91 m (300 ft) |
| 1 kW depth range | 0.9 m (3 ft) to 914.4 m (3,000 ft) (in optimum conditions using a 1 kW transducer) |
Connections
| Accessory connection | USB Micro B |
| Ethernet connection | 2 x RayNet (10/100/1,000 Mbits/s) ports |
| NMEA 0183 connection | Port 1: input and output (4,800 or 38,400 baud), Port 2: input only (4,800 or 38,400 baud) |
| NMEA 2000 connection | DeviceNet connector |
| External storage | 2 front-mounted MicroSDXC card slots |
| Internal storage | 16 GB solid state |
| Wireless connections | Bluetooth V4.0, Wi-Fi 802.11 b/g/n |
GNSS receiver
| Position accuracy | Without SBAS: 15 m or better 95% of the time; with SBAS: 5 m or better 95% of the time |
| GNSS compatibility | GPS, Galileo, GLONASS, BeiDou |
| Satellite differential (SBAS) | WAAS (US), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan) |
| Channels | Tracks up to 28 satellites simultaneously |
| Antenna | Internal ceramic chip |
| Geodetic datum | WGS-84 (alternatives selectable on the MFD) |
| Refresh rate | 10 Hz |
| Time to first fix | Less than 2 minutes from cold start |
Physical
| Dimensions (surface/flush mounted) | Height: 258 mm (10.16 in), Width: 452.02 mm (17.8 in), Depth incl. cables: 240.4 mm (9.46 in) |
Power
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating voltage range | 8 V dc to 32 V dc |
| Power consumption at 12 V dc | 42.36 W |
| Power consumption at 24 V dc | 40.8 W |
| Off current at 12 V dc | 11 mA (0.13 W) |
| Off current at 24 V dc | 18 mA (0.43 W) |
| Current | 5 A |
| LEN (NMEA 2000 load equivalency number) | 1 |
| Fuse rating | 15 A |
Environmental
| Operating temperature | -25 C to +55 C (-13 F to 131 F) |
| Storage temperature | -30 C to +70 C (-22 F to 158 F) |
| Relative humidity | Up to 93% at 40 C (104 F) |
| Waterproof rating | IPx6 and IPx7 |
