Raymarine

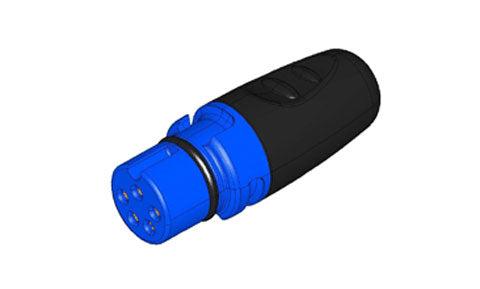

Raymarine SeaTalk ng Backbone Terminator
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
SeaTalkng backbone terminators are installed at each physical end of the overall backbone. They set the correct line impedance, which improves signal quality and prevents reflections and interference on the network. Two terminators are required per system, one at each end of the backbone.
The blue terminator plugs into a blue backbone port. It should not be confused with the black blanking plug, which protects an unused white spur port and is not interchangeable.
PRODUCT DETAILS
- Sets line impedance at the end of the backbone
- Improves signal quality, prevents interference
- Two required per network (one each end)
- Blue, for backbone ports only
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 16 S
Raymarine Axiom 2 Pro 12 RVM
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Axiom 2 Pro 9 S
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 12 S
Raymarine Element 12 S Chartplotter with CHIRP Sonar
General
| Type | Backbone terminator (blue) |
| Quantity required | 2 per network |
| Port | Blue backbone |
