Raymarine SeaTalk ng to SeaTalk 1 Converter
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Raymarine cover is 2 years (3 with 90-day registration). Add 1 or 2 more years with HME Care Plus.
Extended cover is added to your order and confirmed with your warranty documentation.
Description

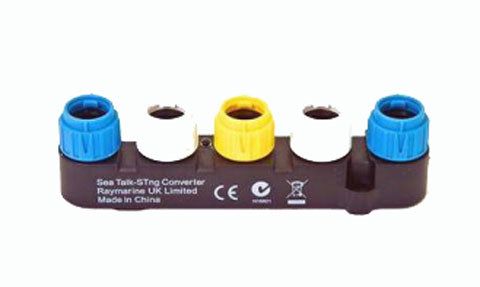

The Raymarine SeaTalk 1 to SeaTalk NG Converter bridges the legacy 3-wire SeaTalk 1 bus to a modern SeaTalk NG backbone, letting older SeaTalk 1 instruments, autopilots, GPS receivers and accessories communicate on a SeaTalk NG (NMEA 2000) network.
This is the converter only, with no cables supplied. It suits installations where the SeaTalk NG backbone, spur and power cabling is already in place, or where you wish to specify the cable lengths yourself. Where a complete solution is needed, the E22158 adaptor kit includes the same converter together with cables, terminators and blanking plugs.
Each converter allows connection of one SeaTalk 1 device and up to two SeaTalk NG devices. It is rated IPx6 and operates from 9 to 16 V DC.
PRODUCT DETAILS
- Connects legacy SeaTalk 1 devices to a SeaTalk NG (NMEA 2000) network
- Converter only, no cables supplied
- One SeaTalk 1 device and up to two SeaTalk NG devices per converter
- IPx6 waterproof rating; 9 to 16 V DC operation
- Same converter as supplied in the E22158 adaptor kit
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Raymarine p70s Autopilot Control Head
Raymarine Element 9 HV Chartplotter with HyperVision Sonar
Raymarine Element 12 HV Chartplotter with HyperVision Sonar
Raymarine Axiom 2 Pro 9 RVM
Raymarine Axiom 2 XL 24 Chartplotter
Raymarine Axiom 2 Pro 12 RVM
Raymarine Element 9 S Chartplotter with CHIRP Sonar
Raymarine Axiom 2 Pro 16 RVM
Raymarine Axiom 2 XL 16 Chartplotter
Raymarine Axiom 2 XL 22 Chartplotter
Raymarine Axiom 2 XL 19 Chartplotter
Raymarine Element 7 S Chartplotter with CHIRP Sonar
Raymarine Element 7 HV Chartplotter with HyperVision Sonar
Raymarine i70s Multifunction Instrument Display
Raymarine Element 12 S Chartplotter with CHIRP Sonar
Physical
| Connections | SeaTalk NG backbone x 2, SeaTalk NG spur x 2, SeaTalk spur x 1 |
| Dimensions | Height 30.2 mm (1.19 in), Width 109.45 mm (4.3 in), Depth 21.45 mm (0.84 in) |
Power
| LEN (NMEA 2000 Load Equivalency Number) | 1 (plus LEN 3 for each powered device) |
| Peak operating current | 50 mA |
| Peak supply current | 950 mA |
| Operating voltage range | 9 V DC to 16 V DC |
| Nominal supply voltage | 12 V DC |
Environmental
| Relative humidity | Up to 95% |
| Waterproof rating | IPx6 |
| Storage temperature | -20 C to +65 C (-4 F to 149 F) |
| Operating temperature | -10 C to +50 C (14 F to 122 F) |
Conformance
| Standards | EMC Directive 2014/30/EU; Australia and New Zealand C-Tick, Compliance Level 2 |
