Simrad

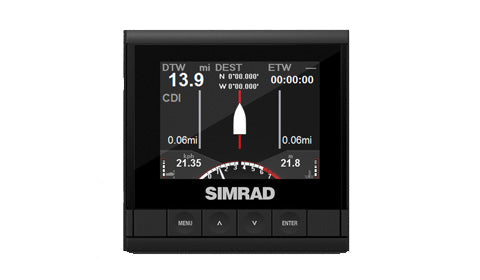

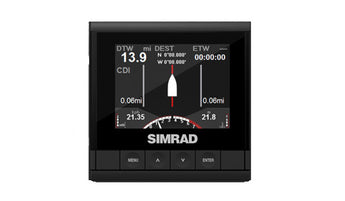

Simrad IS35 Digital Gauge NMEA 2000
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad IS35 is a 3.5-inch digital gauge designed for NMEA 2000 networks. Optically bonded for zero internal condensation and a clear view in any light, it automatically detects the data available on the network and presents the most relevant readings across a series of pre-set or fully customisable pages.
Compact and rugged, the IS35 is waterproof to IPX7 and can be combined with up to ten gauges on a single network, making it easy to build a tidy, consistent instrument layout at the helm. It is a straightforward way to add clear digital data display to any compatible Simrad system.
PRODUCT DETAILS
- 3.5-inch optically bonded display, free from condensation
- Clear viewing day or night
- Connects by NMEA 2000 with automatic data detection
- Pre-set and customisable data pages
- Up to ten gauges on a single network
- Waterproof to IPX7
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Size | 3.5 inch diagonal, 4:3 aspect ratio |
| Type | Transmissive TFT-LCD, white LED backlight |
| Resolution | 320 x 240 pixels |
| Illumination | White (day mode); red, green or blue (night mode) |
Electrical
| Power consumption | 130 mA at 13.5 V |
Connectivity
| Network | NMEA 2000 |
| Network load | LEN 3 |
| Maximum gauges | 10 gauges |
Environment
| Waterproof rating | IPX7 |
| Operating temperature | -15 C to +55 C (+5 F to +131 F) |
| Storage temperature | -25 C to +65 C (-13 F to +149 F) |
Physical
| Weight | 0.28 kg (0.60 lbs) |
| Compass safe distance | 0.3 m (1.0 ft) |
| Colour | Black |
