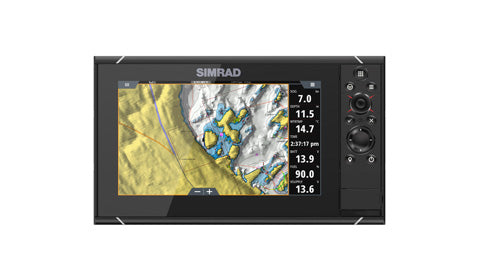

Simrad NSS evo3 9
Manufacturer Part Number:
000-13238-001
Manufacturer Part Number:
000-13238-001
Navigate, take control, and enjoy an unprecedented level of built-in functionality with NSS evo3. SolarMAX™ HD display technology offers exceptional clarity and ultra-wide viewing angles, combined with an all-weather touchscreen and expanded keypad for total control in all conditions. Cruise confidently with ForwardScan sonar, or fish easier with StructureScan® HD imaging and dual-channel CHIRP-enabled Broadband Sounder™ technology. Built-in Wi-Fi enables access to GoFree® online services, and delivers smartphone monitoring and tablet control to extend your display’s reach well beyond the helm. The NSS9 evo3 packs a high-definition 9-inch display into a compact form that’s great for centre consoles and other powerboats.
Home or Marina Delivery
Pick up at Hamble
More Information
NSS evo3 Navigation
In the Box
1 Display unit
2 Sun cover
3 Bezel trim
4 Power cable
5 Self tapping pozi screws, 4Gx1/2” (x4 for 7", x8 for 9"/12", & x12 for 16" units)
6 Dust caps, different sizes for NMEA 2000 (x1), Ethernet (x1 for 7"/9", x2 for 12"/16") and Sonar (x2) connectors
7 Dust cap for HDMI connector (12" and 16" only)
8 Dust cap for Video/NMEA 0183 connector
9 Dust cap for USB (16" only)
10 Document pack
11 Foam gasket (self adhesive)
12 U-bracket
13 Bracket knobs
14 Self tapping pozi screws for bracket, 14G x 1”
NSS evo3 7 Dimensions
Product Width 239mm / 9.4″
Product Height 150mm / 5.9″
Product Depth 90mm / 3.5″
NSS evo3 9 Dimensions
Product Width 287mm / 11.30″
Product Height 166mm / 6.55″
Product Depth 90mm / 3.5″
NSS evo3 12 Dimensions
Product Width 352mm / 13.84″
Product Height 225mm / 8.85″
Product Depth 98mm / 3.82″
NSS evo3 16 Dimensions
Product Width 437mm / 117.19″
Product Height 256mm / 10.08″
Product Depth 98mm / 3.82″
