Simrad R3016 Pulse Compression Halo 4 Radar Kit
Manufacturer Part Number:
000-12199-001
Manufacturer Part Number:
000-12199-001

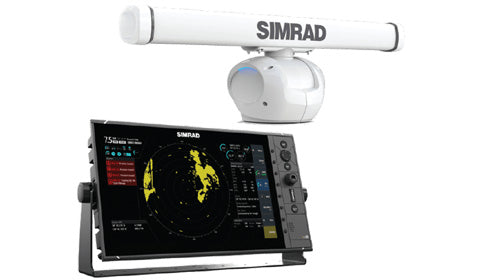

Simrad R3016 HALO™-4 kit is a dedicated 16" widescreen Radar Control Unit and HALO-4 Pulse Compression Radar. Kit includes R3016 radar control unit, Halo pedestal and 4 ft antenna, RI-12 interface, Interconnection cable 20m (66 ft), 1.8 m (6 ft) Ethernet cable.
Home or Marina Delivery
Pick up at Hamble
More Information
Simrad R3016 Pulse Compression Halo 3 Radar Kit
Simrad R3016 Pulse Compression Halo 4 Radar Kit
Simrad R3016 Halo 6 Radar Kit
Simrad R3016 10 kW 4 foot antenna radar kit
Simrad R3016 10 kW 6 foot antenna radar kit
Simrad R3016 25 kW 7 foot antenna radar kit
R2009 9 Dimensions
Product Width 224mm / 8.81″
Product Height 260mm / 10.23″
Product Depth 67mm / 2.63″
R3016 16 Dimensions
Product Width 455mm / 17.91″
Product Height 280mm / 11.02″
Product Depth 67mm / 2.63″
In the Box
1 Control unit
2 Panel mounting gasket
3 Sun cover
4 Bezels
5 Gimbal inserts (R3016 only)
6 Power cable
7 Knobs
8 Fixing screws
9 Documentation pack
10 U-brackets
11 U-bracket straps (one for R2009, two for R3016)
Halo Pedestal In the Box
1 Radar pedestal
2 Interconnection cable 20 m (65 ft) (other lengths available)
3 Lifting strap
4 Blanking plug (used when interconnection cable connected underneath the
pedestal. Blanking plug is fitted underneath the pedestal when shipped)
5 Anti-seize grease
6 Mounting Bolts and washers
a Bolts, hex head, M12 x 35 mm, 316 s/s x 4
b Bolts, hex head , M12 x 50 mm, 316 s/s x4
c Flat washer, M12 x 36 x 3, 316 s/s x4
d Spring washer, M12, 316 s/s x4
e Isolating washer, M12 x 38 x8
7 Drill template
8 This manual
Halo Antenna In the Box
1 Radar antenna 3 ft (3.70 ft Antenna 1127 mm (44.37”))
4 ft (4.70 ft Antenna 1431 mm (56.34”))
6 ft (6.69 ft Antenna 2038 mm (80.24”))
2 Dome nuts, M8, 316 s/s
3 Spring washer, M8, 316 s/s
4 Flat washer, M8 x16x1.2, 316 s/s
Halo RI-12 Interface Module In the Box
1 RI-12 Radar interface module
2 Connector for the pedestal interconnection cable
3 Connector for Aux In (NMEA 0183, remote power and park brake)
4 Mounting hard ware
5 Ethernet adapter. RJ45 male to 5 pin female 150 mm (5.9”)
6 Ethernet cable 1.8 m (6 ft)
7 Micro-C T Joiner
8 Micro-C drop cable 1.8 m (6 ft)
