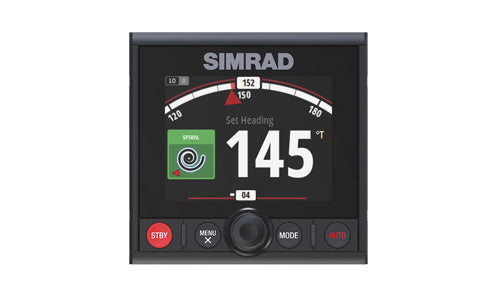

Simrad AP44 Autopilot Controller Display with Rotary Dial
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad AP44 is a dedicated autopilot control head for boats running a Continuum steering system. Its optically bonded 4.1-inch colour display, push-to-enter rotary dial and four-button layout put auto-steering within easy reach, so you can free your hands from the wheel and adjust course in one- or ten-degree steps without taking your attention off the water. Day and night colour modes keep the screen readable from dawn to dusk.
Beyond simply holding a heading, the AP44 gives one-touch access to automated turn patterns, No Drift steering that compensates for wind and tide, and depth contour tracking for following the seabed. Connect a compatible Simrad chartplotter and the controller adds waypoint and route navigation, while certified NMEA 2000 networking ties the head to the autopilot computer, heading sensor and rudder feedback anywhere on board.
Engineered for open-helm use, the AP44 carries an IPx7 waterproof rating and a low-profile glass-helm form factor that flush-mounts neatly alongside Simrad instruments and multifunction displays.
PRODUCT DETAILS
- Dedicated colour autopilot controller for Simrad Continuum steering systems
- Optically bonded 4.1-inch transmissive TFT-LCD display, 320 x 240 resolution
- Push-to-enter rotary dial plus four-button interface for one-handed course adjustment
- One-touch access to automated turn patterns, No Drift steering and depth contour tracking
- Low-profile glass-helm styling with day and night colour modes
- Certified NMEA 2000 connectivity (Micro-C), 4 LEN network load
- IPx7 waterproof rating for open-helm installation
- AP44 display unit with removable bezel
- Micro-C drop cable, 0.6 m (2 ft)
- Micro-C T-connector
- 4 x mounting screws
- Suncover
- Mounting template
- Screw jig
No exploded diagram available for this product.
No compatible transducers listed for this product.
Display
| Size | 4.1" diagonal, 4:3 aspect ratio |
| Type | Transmissive TFT-LCD with white LED backlight |
| Resolution | 320 x 240 pixels |
| Illumination | White for day mode; red, green, blue or white for night mode |
Electrical
| Power consumption (backlight off) | 1.35 W (100 mA @ 13.5 V) |
| Power consumption (backlight max) | 2.16 W (160 mA @ 13.5 V) |
| Network load | 4 LEN |
Connectivity
| NMEA 2000 | Micro-C (CAN) connection |
Environment
| Waterproof rating | IPx7 |
| Humidity | 100% RH |
| Operating temperature | -25 C to +65 C |
| Storage temperature | -40 C to +85 C |
Physical
| Colour | Black |
| Weight | 0.32 kg |
| Dimensions (W x H x D) | 118 x 115 x 36.5 mm |
General
| Warranty | 2 years |
