Garmin
Garmin B744V Long Stem Through Hull Depth Speed and Temperature 8 pin
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

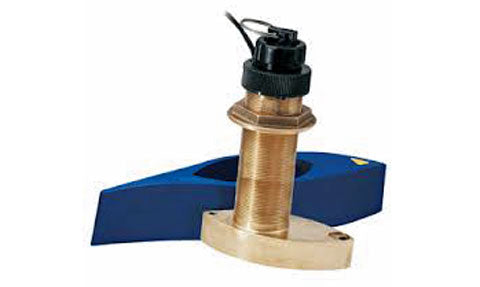

The Garmin B744V Long Stem is an extended-stem version of the Airmar B744V triducer, combining depth, speed and water temperature in a single bronze housing. The longer stem is designed for steep deadrise vessels and thick or cored hulls, where additional length is needed to seat the housing correctly and present the active face cleanly to the water.
Its dual-beam 50/200 kHz element provides broad 50 kHz coverage for fish location and a narrow 200 kHz beam for bottom detail, while the integral paddlewheel reports through-water speed. The transducer accommodates hull deadrise angles from 0 to 24 degrees and terminates in an 8-pin Garmin connector on a 39 ft cable; a 6-pin Garmin sounder requires adapter cable 010-11612-00. Supplied with installation hardware and instructions.
PRODUCT DETAILS
- Extended long-stem bronze thru-hull triducer (Airmar B744V)
- Combines depth, speed and temperature in a single housing
- Long stem suits steep deadrise vessels and thick or cored hulls
- Dual-beam 50/200 kHz operation with 45/12 degree beamwidth
- 600 W power with 800 to 1,200 ft depth capability
- 8-pin Garmin connector on a 39 ft cable; adapter 010-11612-00 for 6-pin sounders
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
General
| Airmar Model | B744VL (B744V long stem) |
| Mounting Type | Thru-hull triducer, extended (long) stem |
| Housing Material | Bronze |
| Functions | Depth, Speed and Temperature |
Sonar
| Operating Frequency | 50 / 200 kHz (dual-beam HD-ID) |
| Power (RMS) | 600 W |
| Beamwidth | 45 degrees (50 kHz) / 12 degrees (200 kHz) |
| Maximum Depth | 800 to 1,200 ft |
Physical
| Supported Deadrise | 0 to 24 degrees |
| Connector | 8-pin |
| Cable Length | 39 ft |
| Stem | Extended long stem for steep deadrise vessels or thick, cored hulls |
Compatibility
| Compatible Sounders | Garmin STRIKER, ECHOMAP CHIRP, GPSMAP xsv series, GSD 24, GSD 25 and GSD 26 sounder modules. 6-pin Garmin sounders require adapter cable 010-11612-00. |
No videos available for this product.
No frequently asked questions for this product.
