Garmin echoMAP CHIRP 95sv GPS with SideVu Preloaded with UK Cartography No Transducer
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

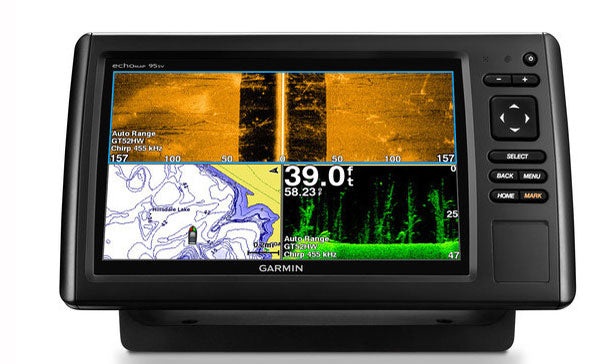

The echoMAP CHIRP 95sv is a 9 inch chartplotter and fishfinder combo with a sunlight-readable touchscreen, preloaded with UK, Ireland and north-west mainland Europe coastal maps. It provides built-in support for Garmin CHIRP traditional sonar plus CHIRP DownVu and CHIRP SideVu scanning sonars, giving an expansive, detailed view of structure and fish below and to the sides of the boat with a compatible transducer, and also supports Panoptix sonar.
An internal 5 Hz GPS updates position and heading five times per second, while Garmin Quickdraw Contours mapping records personalised charts with 30 cm contours as you fish. NMEA 2000 support shares data from engines, sensors, autopilots and other compatible devices, and the unit shares waypoints and routes with other ECHOMAP and STRIKER units. This part number is supplied without a transducer.
PRODUCT DETAILS
- 9 inch sunlight-readable touchscreen display
- Preloaded UK, Ireland and north-west Europe coastal maps
- CHIRP traditional, CHIRP DownVu and CHIRP SideVu sonar support; Panoptix capable
- Internal 5 Hz GPS and Quickdraw Contours mapping
- NMEA 2000 support; shares data with ECHOMAP and STRIKER units
- Supplied without a transducer
No exploded diagram available for this product.
Garmin Panoptix PS21 Forward Sonar Transducer Trolling Motor Mounting Ethernet
Garmin GT41-THP Thru Hull Mount Pair 12 pin
Garmin GT21-TM Transom Mount Transducer 8 pin
Garmin Panoptix PS31 Forward Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Garmin Panoptix PS30 Down Sonar Transducer Transom or Trolling Motor Mounting Ethernet
Garmin GT23M-TM Transom Mount Transducer 8 pin
Garmin GT40-TM Transom Mount Transducer 12pin
Garmin Panoptix PS60 Down Sonar Transducer Thru Hull Mounting with Fairing Block Ethernet
Garmin GT41-TM Transom Mount Transducer 12 pin
Garmin GT50M-TM Transom Mount 12 pin
Garmin 77 200kHz Trolling Motor Mount Transducer with Temperature 8 pin
Garmin Transom Trolling Motor Mount Dual Beam Transducer
Garmin Transom Trolling Motor Mount Dual Beam Transducer 8 pin
No compatible products found.
General
| GPS | Internal 5 Hz GPS |
| Preloaded cartography | UK, Ireland and north-west mainland Europe coastal maps |
| Mapping software | Garmin Quickdraw Contours (1 ft / 30 cm contours) |
| Memory card slot | 1 microSD card slot (32 GB max) |
Display
| Display size | 9 in diagonal (22.9 cm); 19.8 x 11.2 cm |
| Display resolution | WVGA, 800 x 480 pixels |
| Display type | Sunlight-readable colour touchscreen |
Sonar
| Built-in sonar | Garmin CHIRP traditional plus CHIRP DownVu (ClearVu) and CHIRP SideVu scanning sonars (transducer sold separately) |
| CHIRP traditional frequencies | 50 / 77 / 200 kHz |
| CHIRP DownVu / SideVu frequencies | 455 / 800 kHz |
| Transmit power (RMS) | 500 W |
| Maximum depth | 701 m (2,300 ft) at 77 kHz (transducer dependent) |
| Sonar support | Panoptix compatible (transducer sold separately) |
Compatibility
| NMEA 2000 | Yes |
| NMEA 0183 | Yes |
| Data sharing | Shares waypoints and routes with other ECHOMAP and STRIKER units |
Physical
| Dimensions (W x H x D) | 28.8 x 16.3 x 5.1 cm (11.3 x 6.4 x 2.0 in) |
| Weight | 1.0 kg (2.3 lb) |
| Waterproof rating | IPX7 |
| Power input | 9 to 18 Vdc |
| Mount | Quick-release bail mount |
