Icom

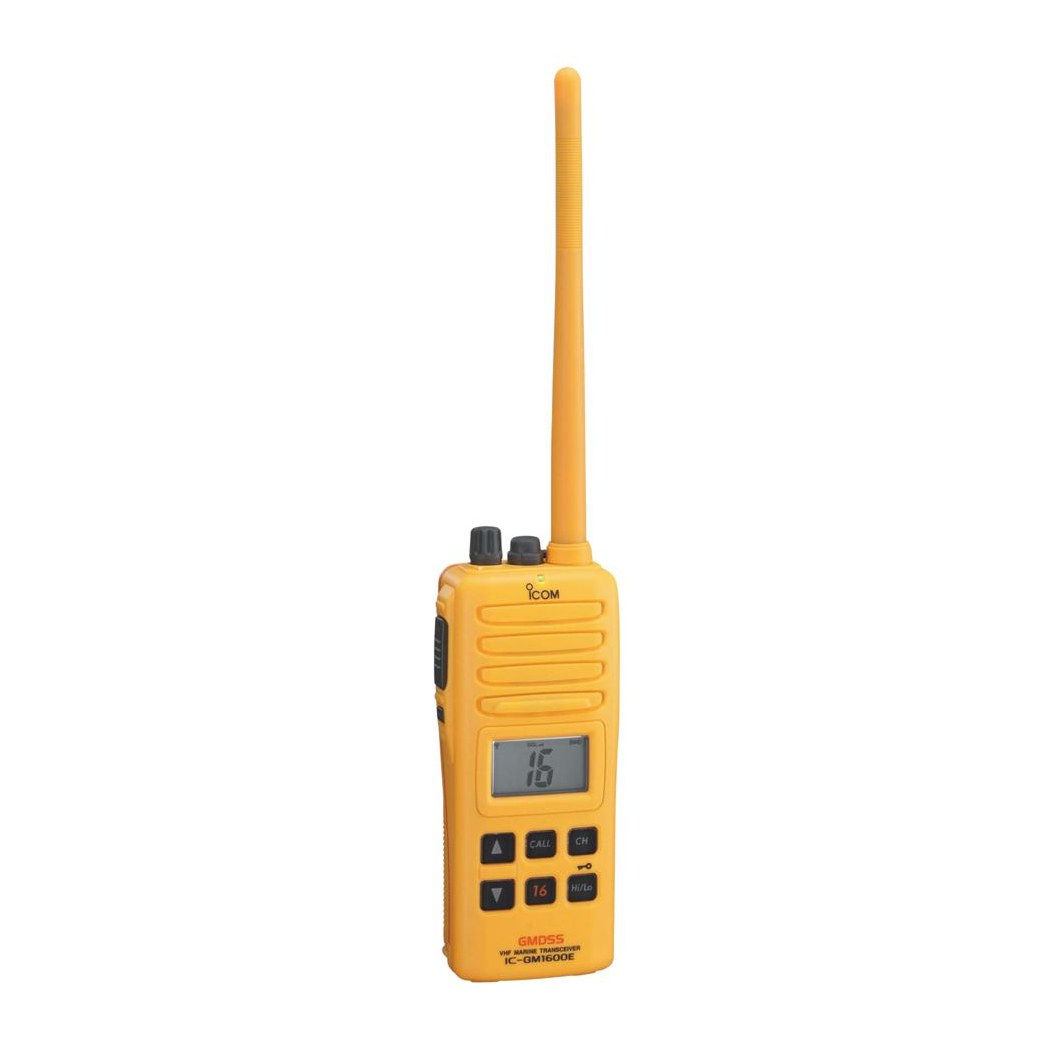

Icom IC-GM1600E GMDSS Survival Craft 2-Way VHF Radio
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Icom IC-GM1600E is a GMDSS survival craft two-way VHF radio engineered to survive and function in the extreme conditions common to marine emergencies. It meets the strict environmental requirements for survival craft radio, including temperature, thermal shock, vibration and drop resistance from 1 m, and carries both the UK Red Ensign MER and European wheel mark MED certifications to satisfy SOLAS carriage requirements.
A high-capacity BP-234 lithium battery pack delivers more than 8 hours of operation even at minus 20 degrees Celsius, while IPX7 waterproof construction with a Speed Water Removal function keeps communications clear in the worst conditions. The highly visible yellow body, large glove-friendly keypad with positive button action and wide viewing angle LCD make the radio easy to find and operate under stress, and rear-panel operating instructions help even an unskilled operator. One-touch access to channel 16 and an optional VOX headset capability round out this essential piece of emergency equipment.
PRODUCT DETAILS
- GMDSS survival craft two-way VHF radio
- Meets UK MER Red Ensign and European MED wheel mark certifications
- Meets temperature, thermal shock, vibration and 1 m drop requirements
- IPX7 waterproof with Speed Water Removal function
- High capacity BP-234 lithium battery, over 8 hours at minus 20 C
- Highly visible yellow coloured body
- Large keypad with positive button action for gloved use
- One touch access to Channel 16 and programmable call channel
- VOX capability with optional headset for hands-free use
- BP-252 Li-Ion battery pack (depending on version)
- BC-173 battery charger (depending on version)
- BC-147 AC adapter (depending on version)
- MB-103Y belt clip
- FA-S61V antenna (fixed)
- Neck strap
No exploded diagram available for this product.
No compatible transducers listed for this product.
Icom BC-01 UK 12V 500mA Switch Mode Charger PSU
Icom BC-162 UK Rapid Charger for Ni-Cd and Li-ion BP-241/224/252 for IC-M33/M35/GM1600E
Icom MB-94 Alligator Belt Clip for BP-232H/232WP
![Icom OPC-2004 VOX Cable for HS-94, 95, 97 [IC-F1000 Series, F3002 Series etc.]](http://hme.sprechen.dev/cdn/shop/files/OPC-2004.jpg?v=1782472896&width=200)
Icom OPC-2004 VOX Cable for HS-94, 95, 97 [IC-F1000 Series, F3002 Series etc.]
![Icom OPC-2004LA VOX Cable for HS-94, 95, 97 [IC-F29 Series, F1000 Series, F3002 Series etc.]](http://hme.sprechen.dev/cdn/shop/files/OPC-2004LA.jpg?v=1782472897&width=200)
Icom OPC-2004LA VOX Cable for HS-94, 95, 97 [IC-F29 Series, F1000 Series, F3002 Series etc.]
Image coming soonIcom SMA Plug to SO-239
HM-167 Waterproof Speaker Microphone
Icom OPC-478UC USB Programming Cable/B Version Compatible up to & including Windows 11
Icom MB-103Y Belt Clip
Icom BP-234 lithium battery pack
Icom MB-96N Belt clip
Icom OPC-1392 Headset Adapter Cable
Icom BC-173 Charger
Icom MB-86 Belt Clip
Icom OPC-515L Cable
Icom FA-S61V Portable survival craft two way radio antenna
Icom OPC-922 Cable
Icom HS-97 Earphone with Throat-mic
Icom BP-252 Lithium-Ion Battery Pack
Icom HS-95 Headset with Boom-mic
Icom SMA Plug to BNC Socket AD-92SMA for IC-R6/M73/M87/GM1600E
CP-23L CIGARETTE LIGHTER CABLE
Icom HS-94 Headset
Icom HS-M73.002 D shaped earpiece with PTT
Icom CIGAR.001 Cigarette Lighter Cable
Icom MB-96F Fixed Leather Belt Hanger
No compatible products found.
General
| Frequency range (TX/RX) | 156.300-156.875 MHz |
| Mode | FM (16K0G3E) |
| Power supply requirement | 7.2 V DC nominal |
| Current drain (TX 2 W) | 1.0 A (approx. at 7.2 V DC) |
| Current drain (TX 1 W) | 0.7 A (approx. at 7.2 V DC) |
| Current drain (RX, AF max.) | 200 mA |
| Operating temperature range | -20 C to +55 C |
| Antenna impedance | 50 ohms (SMA fixed-type) |
| Dimensions (W x H x D) | 65 x 145 x 44 mm (projections not included) |
| Weight (approx.) | 385 g (with BP-234) |
Transmitter
| Output power | 2 W / 1 W (Hi/Low) |
| Max. frequency deviation | +/-5.0 kHz |
| Frequency error | +/-1.5 kHz |
| Spurious emissions | 0.25 microwatt (30 MHz-1 GHz), 1.00 microwatt (1 GHz-2 GHz) |
| Adjacent channel power | 70 dB |
| Audio harmonic distortion | Less than 10% (at 60% deviation) |
Receiver
| Sensitivity (20 dB SINAD) | -2 dB microvolt typ. (emf) |
| Squelch sensitivity (at threshold) | +/-0 dB microvolt typ. (emf) |
| Adjacent channel selectivity | 70 dB |
| Spurious response | 70 dB |
| Intermodulation rejection | 68 dB |
| Audio output power | 0.2 W (at 10% distortion with 8 ohm load) |
Environmental
| Waterproof rating | IPX7 (1 m depth of water for 30 minutes) |
No frequently asked questions for this product.
