Description

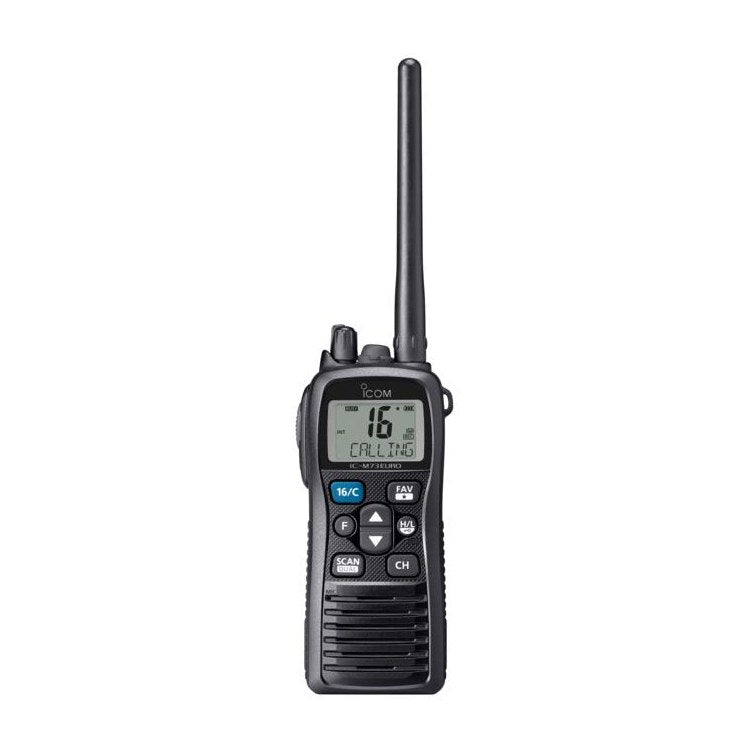

The IC-M73EURO is a professional-grade handheld marine VHF radio that combines Icom's best waterproof protection with high power output and long battery life in a slim, ergonomic body. Tested to IPX8 it survives submersion in 1.5m of water for 30 minutes, so it keeps working in rain, snow and severe weather, making it a dependable choice for both leisure and commercial users.
A 6 watt transmit output delivers extended communication range, while a BTL amplifier drives the internal speaker to a loud 700mW for clear audio in noisy environments. The slim, hourglass body is comfortable to hold and durable for long service life, and a wide viewing-angle, high-intensity LCD keeps characters bright and easy to read. With the optional OPC-1392 adapter cable the radio supports VOX hands-free operation using a range of optional headsets. Additional features include the AquaQuake water-draining function, Dual and Tri-Watch monitoring, a four-level battery indicator, and favourite channel and tag scan functions. A rapid BC-210 charger is supplied.
PRODUCT DETAILS
- 6 W RF output power for extended range
- 700 mW loud audio via BTL amplifier
- IPX8 advanced waterproofing (1.5 m for 30 minutes)
- Slim, hourglass body with wide viewing-angle LCD
- VOX hands-free capability (with optional OPC-1392)
- AquaQuake water-draining function
- Dual/Tri-Watch monitoring of Channel 16 and call channel
- Four-level battery indicator
- Favourite channel and tag scan functions
- Rapid BC-210 charger supplied
- BP-245H battery pack
- BC-210 rapid charger
- BC-123SE AC adapter (not supplied or may differ depending on version)
- CP-25H cigarette lighter cable (not supplied or may differ depending on version)
- FA-S59V or FA-S64V antenna (depending on version)
- MB-103 belt clip
- Hand strap
No exploded diagram available for this product.
No compatible transducers listed for this product.
Icom AD-129 Charge Adapter for BC-197 for IC-M71/M73
Icom BC-157 AC PSU
Image coming soonIcom BP-245H Li-ion Battery Pack 7.2v/2150 (typ) mAh for IC-M71/M73
Image coming soonIcom SC25-PBH-M73-VOX Behind head splash-proof headset for IC-M73 with Vox enabled Not for IC-M91D
Icom MB-96F Fixed Leather Belt Hanger
HM-167 Waterproof Speaker Microphone
Icom OPC-478UC USB Programming Cable/B Version Compatible up to & including Windows 11
Icom MB-96N Belt clip
Icom OPC-1392 Headset Adapter Cable
Icom HM-202 Speaker Microphone
Icom MB-86 Belt Clip
Icom OPC-515L Cable
Icom OPC-656 Cable
Icom OPC-922 Cable
Icom HS-97 Earphone with Throat-mic
Icom BC-06 Charger
![Icom UK6WAY [Fitted with 6 x BC-262 for IC-U20SR]](http://hme.sprechen.dev/cdn/shop/files/UK6WAY.jpg?v=1782472955&width=200)
Icom UK6WAY [Fitted with 6 x BC-262 for IC-U20SR]
Icom HS-95 Headset with Boom-mic
FA-S64V Antenna
Icom BC-210 Rapid Charger
Icom HS-94 Headset
Icom BC-M71 Belt Case
Icom HS-M73.002 D shaped earpiece with PTT
Icom MB-103 Belt Clip
Icom CIGAR.001 Cigarette Lighter Cable
No compatible products found.
General
| Frequency range (TX) | 156.000 to 161.450 MHz |
| Frequency range (RX) | 156.000 to 163.425 MHz |
| Usable channel groups | INT, USA channels (depending on version) |
| Type of emission | 16K0G3E (FM) |
| Current drain (TX 6 W) | 1.5 A |
| Current drain (RX max audio, int/ext SP) | 450 mA / 250 mA |
| Operating temperature range | -15°C to +55°C |
| Antenna impedance | 50 Ω (SMA) |
| Dimensions (W x H x D) | 52.5 x 125 x 30 mm (projections not included) |
| Weight | 320 g (with BP-245H, FA-S64V, MB-103) |
| Battery operating time | Up to 17 hours with BP-245H (typical 5:5:90 duty ratio) |
Transmitter
| Output power (Hi/Mid/Low) | 6 W / 3 W / 1 W |
| Max frequency deviation | ±5.0 kHz |
| Frequency stability | ±1.5 kHz |
| Spurious emissions | 0.25 µW |
| Adjacent channel power | 70 dB |
| Audio harmonic distortion | Less than 10% (at 60% deviation) |
| Residual modulation | 40 dB |
Receiver
| Sensitivity (at 20 dB SINAD) | -4 dBµ emf typ. |
| Squelch sensitivity (threshold) | -5 dBµ emf typ. |
| Adjacent channel selectivity | 70 dB |
| Spurious response | 70 dB |
| Intermodulation | 68 dB |
| Hum and noise | 40 dB |
| Audio output power (internal SP) | 700 mW typ. (8 Ω load, at 1 kHz) |
| Audio output power (external SP) | 200 mW |
Environmental
| Waterproof rating | IPX8 (submersion in 1.5 m of water for 30 minutes) |
| Military specification | Meets MIL-STD-810 G (also equivalent -C, -D, -E and -F) |
