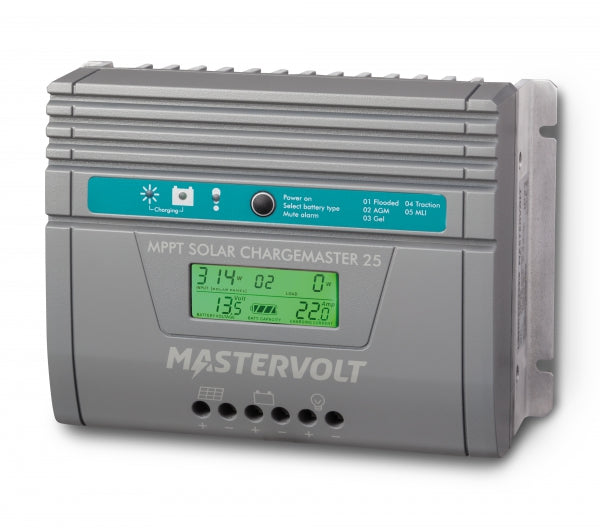

Mastervolt SCM25 MPPT
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The SCM25 MPPT is Mastervolt's smallest Solar ChargeMaster, yet it is just as capable as its larger siblings. Handling 200 to 700 Wp of solar panels with a switchable output and built-in buzzer, it is very well suited to small and medium solar systems on boats and other mobile installations.
Its innovative MPPT (Maximum Power Point Tracking) technology charges batteries up to 30% faster than PWM regulators using the same number of panels. As well as the traditional 36 and 72-cell panels, it works well with cost-effective 60-cell panels, and it automatically detects 12 or 24-volt battery banks.
The regulator suits all battery types, including Mastervolt Lithium Ion, with charge profiles pre-programmed and selectable at the push of a button. A clear backlit display, comprehensive protection, an audible malfunction alarm and a rugged IP23 casing make it easy to use and dependable in humid environments.
PRODUCT DETAILS
- 25A MPPT solar charge regulator with very high efficiency (> 98%)
- Handles 200 to 700 Wp of solar panels
- Automatic 12/24 V battery voltage detection
- Up to 30% faster charging than PWM technology
- Suitable for all battery types, including Mastervolt Lithium Ion
- Suitable for inexpensive 60-cell panels
- Secure switchable output (max. 25 A)
- Battery temperature sensor included for long battery life
- Large, bright backlit display with audible malfunction alarm
- Robust IP23 casing for humid environments
- SCM25 MPPT solar charge regulator
- Battery temperature sensor
- User manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
No compatible products found.
Technical specifications
| Max. charge current at 40 C | 25 A |
| System voltage (battery) | 12/24 V auto select |
| Battery types | AGM, gel, wet, Lithium Ion |
| Battery temperature sensor | Yes |
| Lithium Ion protection | Via Multipurpose Contact Output (product code 77030500) |
| Switchable output (max. current) | 25 A |
| Energy consumption (night) | 5 mA |
| Nominal PV current at 40 C | 18 A |
| PV start voltage (12/24 V) | 15 V / 27 V |
| Nominal PV voltage (12 V) | 15-66 V |
| Nominal PV voltage (24 V) | 30-66 V |
| Max. PV voltage (Tmin) | 75 V |
| Max. PV power (12 V) | 360 Wp |
| Max. PV power (24 V) | 720 Wp |
| Max. efficiency | > 98 % |
| Static MPP efficiency | 99.9 % |
| Technology | MPPT (Max. Power Point Tracker) |
| Temperature range (ambient) | -20 C to 55 C |
| Cable size | Max. 10 mm2 Litz wire |
| Protections | Over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity and HV transients |
| Relative humidity | 95% non-condensing |
General specifications
| Cooling | Passive |
| Display/read-out | Backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting |
| Grounding | (-) terminal |
| Alarms | Buzzer |
| Protection degree | IP23 |
Physical
| Dimensions, hxwxd | 135 x 190 x 75 mm |
| Weight | 1.3 kg |
