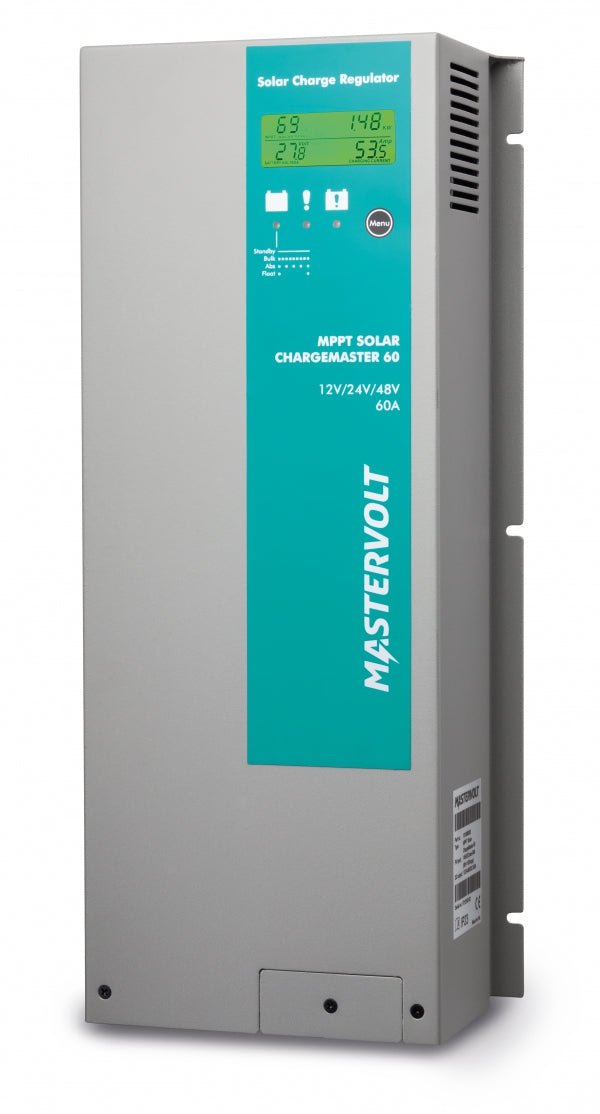

Mastervolt SCM60 MPPT-MB
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The SCM60 MPPT-MB is Mastervolt's largest Solar ChargeMaster, designed for medium-sized and large solar installations. It handles 600 to 3600 Wp of panels, automatically detects 12, 24 or 48-volt battery banks and includes an integrated MasterBus connection, making it well suited to systems that need significant power even in demanding conditions.
Its innovative MPPT (Maximum Power Point Tracking) technology charges batteries up to 30% faster than PWM regulators using the same number of panels. A 145 V maximum input voltage allows several panels to be wired in series, cutting cable length, installation time and power loss. Beyond the traditional 36 and 72-cell panels, the SCM60 is also ideal for cost-effective 60-cell panels.
The regulator suits all battery types, including Mastervolt Lithium Ion, with pre-programmed charge profiles selectable from the display or over MasterBus. Comprehensive protection, quiet operation and a rugged IP23 casing make it safe and dependable in humid environments.
PRODUCT DETAILS
- 60A MPPT solar charge regulator with very high efficiency (> 98%)
- Handles 600 to 3600 Wp of solar panels
- Automatic 12/24/48 V battery voltage detection
- Up to 30% faster charging than PWM technology
- 145 V maximum PV input allows panels to be wired in series
- Suitable for all battery types, including Mastervolt Lithium Ion
- Monitoring, control and lithium protection via MasterBus
- Battery temperature sensor included for long battery life
- Large, bright backlit LCD display and very quiet operation
- Robust IP23 casing for humid environments
- SCM60 MPPT-MB solar charge regulator
- Battery temperature sensor
- User manual
No exploded diagram available for this product.
No compatible transducers listed for this product.
Mastervolt Battery Temperature Sensor (15m Cable)
Mastervolt MasterBus terminator
Mastervolt MasterBus cable 0.2 metre
Mastervolt MasterBus cable 0.5 metre
Mastervolt MasterBus cable 1 metre
Mastervolt MasterBus cable 3 metre
Mastervolt MasterBus cable 6 metre
Mastervolt MasterBus cable 10 metre
Mastervolt EasyView 5
Mastervolt SmartRemote (Retail)
Mastervolt MasterBus USB Interface
Mastervolt MasterBus Modbus Interface
Mastervolt MasterBus NMEA2000 interface
Mastervault MasterShunt 500 CZone
Mastervolt DC Distribution 500
Technical specifications
| Max. charge current at 40 C | 60 A |
| System voltage (battery) | 12/24/48 V auto select |
| Battery types | AGM, gel, wet, Lithium Ion |
| Battery temperature sensor | Yes |
| Lithium Ion protection | Yes, via MasterBus connection |
| Switchable output (max. current) | Via MasterBus |
| Energy consumption (night) | < 1 mA |
| Nominal PV current at 40 C | 50 A |
| PV start voltage (12/24/48 V) | 15 V / 27 V / 51 V |
| Nominal PV voltage (12 V) | 13.2-115 V |
| Nominal PV voltage (24 V) | 26.4-115 V |
| Nominal PV voltage (48 V) | 52.8-115 V |
| Max. PV voltage (Tmin) | 145 V |
| Max. PV power (12 V) | 900 Wp |
| Max. PV power (24 V) | 1800 Wp |
| Max. PV power (48 V) | 3600 Wp |
| Max. efficiency | > 98 % |
| Static MPP efficiency | 99.9 % |
| Technology | MPPT (Max. Power Point Tracker) |
| Communication | MasterBus |
| Temperature range (ambient) | -20 C to 55 C |
| Cable size | Max. 35 mm2 Litz wire |
| Protections | Over temperature, over load, high/low battery voltage, high/low PV voltage, short circuit, reverse polarity and HV transients |
| Relative humidity | 95% non-condensing |
| MasterBus compatible | Yes |
General specifications
| Cooling | Passive |
| Display/read-out | Backlit LCD with PV power, load power, battery voltage, charge current, warnings, battery state of charge, battery setting |
| Grounding | (-) terminal |
| Alarms | Via MasterBus |
| Protection degree | IP23 |
Physical
| Dimensions, hxwxd | 398 x 168 x 104 mm |
| Weight | 5.5 kg |
