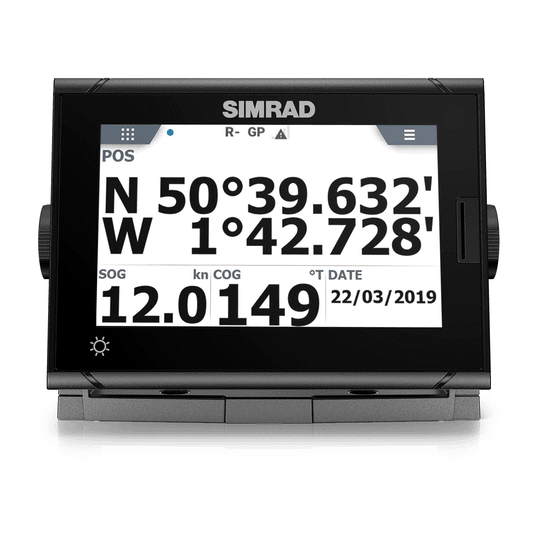

Simrad P3007 GPS Display
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Manufacturer-backed extended cover provided by Navico — add up to 3 extra years.
Extended cover is added to your order and confirmed with your warranty documentation.
Description
The Simrad P3007 is a 7-inch full-touch colour GPS display that distributes accurate position, course, speed, time and navigation data to other bridge systems such as radar, ECDIS and autopilot. It offers type approved position, navigation, heading and trip log pages, along with an auxiliary AIS page, and a familiar touch menu that is easy to operate at a glance.
Combined with an approved GPS antenna or GPS compass, the P3007 becomes a type approved GPS system, serving as both a GPS navigator and a GPS compass in one solution. It is a direct replacement for the MX612, MX610 and GN70, and is retrofit friendly for legacy MX420, MX510 and MX512 systems. When paired with high-precision antennas it can be configured as a DGPS or transmitting heading device (THD).
The P3007 supports a wide range of I/O signal types and connects over NMEA 2000, NMEA 0183, Ethernet (IEC 61162-450) and a pulse speed log input. The system is scalable with MX610JB or MX612JB junction boxes, allowing up to 12 NMEA 0183 serial ports, and is IMO approved for SOLAS vessels.
PRODUCT DETAILS
- 7-inch full-touch colour GPS display, >1200 nits brightness
- Type approved position, navigation, heading and trip log pages
- GPS navigator and GPS compass in one solution
- Direct replacement for MX612, MX610 and GN70
- NMEA 2000, NMEA 0183, Ethernet (IEC 61162-450) and pulse speed log inputs
- Scalable to 12 NMEA 0183 ports with MX610JB / MX612JB junction box, IMO approved
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Display
| Resolution | 800 x 480 |
| Brightness | >1200 nits |
| Touch screen | Full touch screen (multi-touch) |
| Viewing angles | Left/right 70 degrees, top 50 degrees, bottom 60 degrees |
| Nominal viewing distance | 0.85 m (2.79 ft) |
Electrical
| Supply voltage | 12/24 V DC (9.0 - 31.2 V DC min-max) |
| Power consumption | 680 mA / 330 mA at 12 V DC (backlight full/off) |
| Power consumption (24 V) | 380 mA / 200 mA at 24 V DC (backlight full/off) |
| Recommended fuse rating | 3 A (12 V / 24 V) |
Connectivity
| Ethernet | 1x RJ45 100Base-TX, 8P8C connector, IPv4 |
| Lightweight Ethernet protocol | IEEE 802.3 |
| NMEA 2000 | 1x (Micro-C, 1 LEN) |
| IEC 61162-2 (NMEA 0183) ports | 2x (up to 12 with junction box) |
| Data card reader | 1x slot (microSD) |
| Speed log input | Pulse speed log (200 pulses per nautical mile) |
| Analog input | 1x (configurable for backlight control) |
Environment
| Waterproof rating | IPX2 |
| Shock, vibration and humidity | According to IEC 60945 |
Physical
| Compass safe distance | 0.9 m (2.95 ft) |
| Weight (display only) | 1.32 kg (2.91 lbs) |
| Height | 220.0 mm (8.66 in) |
| Width | 174.0 mm (6.85 in) |
| Depth | 61.9 mm (2.44 in) |
