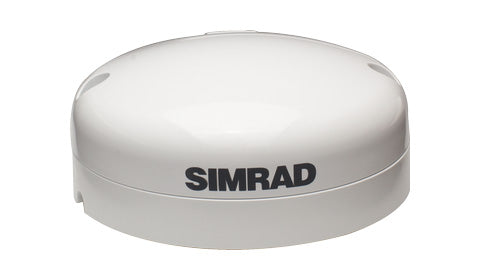

Simrad GS25 GPS Antenna
Description
The Simrad GS25 is a combined GPS antenna and solid-state heading sensor designed for navigators who need rapid, accurate vessel position and heading. Built on the same platform as the Point-1, it delivers position updates of up to 10 Hz with 3 m horizontal accuracy, along with magnetic heading, rate of turn and roll and pitch data, so your chart and radar overlay stay aligned at any speed.
The GS25 connects directly to any compatible Simrad multifunction display or NMEA 2000 network, providing both a position source and a heading source in a single unit. The internal heading sensor is calibrated from a connected display, instrument or autopilot controller, and where more than one heading source is present the system selects the configured compass source automatically.
Fully waterproof to IPX7 and supplied for pole or surface mounting, the GS25 is suited to power and sail vessels alike. Please note this product is not suitable for use with MARPA.
PRODUCT DETAILS
- Combined GPS antenna and heading sensor in one unit
- Position updates of up to 10 Hz with 3 m horizontal accuracy
- Magnetic heading, rate of turn and roll and pitch output for chart and radar overlay
- Connects to any compatible Simrad MFD or NMEA 2000 network
- 32-channel GPS receiver with fast cold start and reacquisition
- Fully waterproof IPX7 housing for pole or surface mounting
No exploded diagram available for this product.
No compatible transducers listed for this product.
No spares or accessories listed for this product.
Simrad NSS 4 - 10" Chartplotter and Fishfinder
Simrad NSS 4 - 12" Chartplotter and Fishfinder
Simrad NSS 4 - 16" Chartplotter and Fishfinder
Simrad NSS evo3 7
Simrad NSS evo3 9
Simrad NSS evo3 12
Simrad NSS evo3 16
Simrad GO12 ROW 12 Inch Display No Transducer
Simrad NSO evo3 Glass Bridge 16 Inch Display Only
Simrad NSO evo3 Glass Bridge 19 Inch Display Only
Simrad NSO EVO3S 16 Inch MFD
Simrad NSO EVO3S 24 Inch MFD
Sensor
| Receiver type | L1, C/A code (1.575 GHz) and L2 C/A code (1.602 GHz) |
| Channels | 32 channels |
| Position update rate | Up to 10 Hz (1, 5, 10) |
| Horizontal accuracy | 3 m (9.8 ft) |
| Heading accuracy | +/- 3 degrees |
| Rate of turn accuracy | +/- 3 degrees |
| Roll/Pitch accuracy at 30 degrees | +/- 1 degree |
| Cold start | 50 sec |
| Start-up time | 3 sec |
| Satellite reacquisition | 5 sec |
Electrical
| Input voltage | 9 V DC - 18 V DC |
| Reverse polarity protection | Yes |
| Power consumption | Less than 2 W |
Connectivity
| Network | NMEA 2000 |
Environment
| Operating temperature | -25 C to +60 C (-13 F to +140 F) |
| Storage temperature | -40 C to +85 C (-40 F to +185 F) |
| Waterproof rating | IPX7 |
| Humidity | 40 C, 93% RH, operating |
Physical
| Diameter | 90 mm (3.54 in) |
| Mounting thread | 1 in x 14 TPI |
