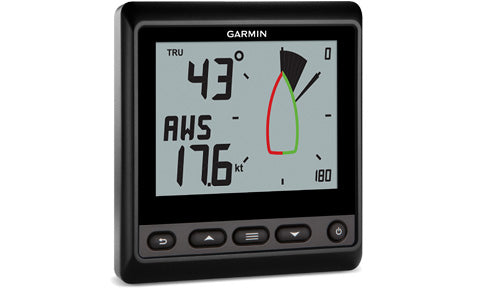

Garmin GNX Wind Marine Instrument LCD 4 inch
£499.99
/
Tax included.
Shipping calculated at checkout.
010-01142-30
The Garmin GNX Wind is a dedicated 4-inch sailing wind instrument with a graphical wind rose. It shows true and apparent wind, supports steer-pilot mode and works with wireless or wired gWind sensors over NMEA 2000.
✓
Collection or delivery in 1-2 weeks
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Garmin GNX Wind is a purpose-built sailing instrument that puts wind data front and centre. Its graphical wind rose can show true and apparent wind angle together, switch to a focused close-hauled view, or display true wind direction, helping you read shifts and trim with confidence. Steer-pilot mode turns the display into a steering guide for holding a chosen wind angle, steering to a waypoint or timing tacks using stored port and starboard headings. The GNX Wind accepts data from a wireless gWind sensor or a wired wind sensor through the NMEA 2000 network, which also supplies its power. Up to four instrument screens can be customised to show the data you want, and wind information can be mirrored on a compatible Garmin wearable through the Boat Data Connect IQ app. The glass-bonded display carries an anti-glare lens and an IPX7 waterproof rating.
PRODUCT DETAILS
- Dedicated 4-inch sailing wind instrument with a graphical wind rose
- Shows true and apparent wind angle together, a close-hauled focus view, or true wind direction
- Steer-pilot mode helps you hold a wind angle, steer to a waypoint and time tacks
- Works with a wireless gWind sensor or a wired wind sensor over NMEA 2000
- Up to four fully customisable instrument screens
- View wind data on a compatible Garmin wearable via the Boat Data Connect IQ app
- Glass-bonded display with anti-glare lens, rated to IPX7
- Low 1.35 W power draw (NMEA 2000 LEN 3)
- GNX Wind marine instrument
- Sun cover
- Flush-mount gasket
- Flush-mount template
- Mounting hardware
- NMEA 2000 drop cable
- Documentation
No exploded diagram available for this product.
Garmin gWind Race Transducer Only
Garmin gWind Transducer Only
Garmin gWind Wireless Transducer Only
Garmin gWind Mast Head Transducer with GND10 Black Box and 25m mast cable
Garmin gWind Race Transducer with Nexus Adapter
Garmin gWind Race Vertical Mast Head Transducer with GND10 Black Box and 25m mast cable
Garmin gWind Transducer with Nexus Adapter
No spares or accessories listed for this product.
No compatible products found.
Display
| Display Type | Dedicated sailing wind display with graphical wind rose |
| Display Size | 4 in (diagonal) |
| Wind Rose Modes | True and apparent wind angle, close-hauled focus, or true wind direction |
| Configurable Screens | Up to 4 customisable instrument screens |
Sensor
| Wind Sensor Input | Wireless gWind sensor or wired wind sensor via NMEA 2000 |
Connectivity
| Network | NMEA 2000 (powered and data via network) |
| Wearable Support | Connects to compatible Garmin wearable (e.g. quatix) via Boat Data Connect IQ app |
| NMEA 2000 LEN | 3 (150 mA at 9 Vdc) |
Physical
| Dimensions (without sun cover, H x W x D) | 110 x 115 x 30 mm (4.33 x 4.53 x 1.18 in) |
| Dimensions (with sun cover, H x W x D) | 115 x 120 x 35.5 mm (4.53 x 4.72 x 1.40 in) |
| Weight (without sun cover) | 247 g (8.71 oz) |
| Weight (with sun cover) | 283 g (9.98 oz) |
| Cutout | 90 mm (3.5 in) hole saw |
| Case Material | Fully-gasketed polycarbonate; glass lens with anti-glare finish |
| Compass-Safe Distance | 209 mm (8.25 in) |
Electrical
| NMEA 2000 Input Voltage | 9 to 16 Vdc |
| Unit Maximum Voltage | 32 Vdc |
| Power Usage | 1.35 W maximum |
Environmental
| Water Rating | IEC 60529 IPX7 (up to 1 m for 30 min) |
| Temperature Range | -15 to 70 C (5 to 158 F) |
What does the GNX Wind display?
It is a dedicated sailing wind instrument with a graphical wind rose. It can show true and apparent wind angle together, a close-hauled focus view, or true wind direction, plus numeric wind and boat-speed fields.
What is steer-pilot mode?
Steer-pilot mode turns the GNX Wind into a steering guide. It can help you hold a set apparent or true wind angle, steer toward a waypoint, or time tacks using stored port and starboard headings.
Does the GNX Wind need a wireless or wired wind sensor?
Either. It works with a wireless gWind sensor or a wired wind sensor connected through the NMEA 2000 network.
Can I view GNX Wind data on a watch?
Yes. You can connect a compatible Garmin wearable, such as a quatix, using the Boat Data Connect IQ app to view wind information.
How is the GNX Wind powered?
It draws both power and data from a NMEA 2000 network. It has a NMEA 2000 LEN of 3 and a maximum draw of 1.35 W.
