Mastervolt

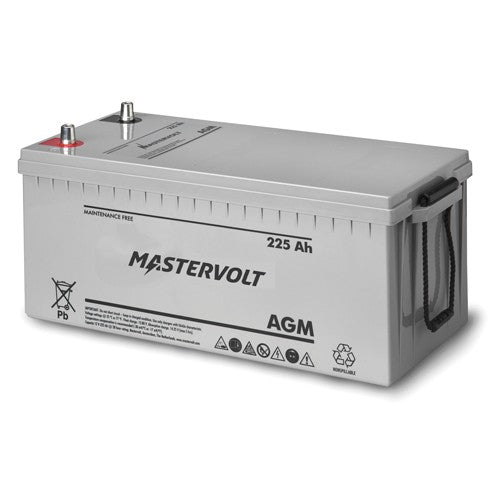

Mastervolt AGM Battery (12V / 225Ah)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt AGM 12/225 (group 8D) is a high-capacity 12 volt, 225Ah absorbed glass mat battery for demanding marine and mobile electrical systems. In an AGM battery the electrolyte is largely absorbed in glass fibre, so the battery is completely maintenance-free and produces no gas under normal use. Its sealed construction allows installation in almost any position and makes it a straightforward upgrade from a conventional flooded lead-acid battery.
The construction gives very fast discharge at high currents, delivering an excellent starter function alongside generous reserve capacity for medium cyclic use. Glass-fibre technology keeps internal resistance low and thicker plates help extend service life. The battery poles can be unscrewed, so the AGM 12/225 works with every standard Mastervolt battery terminal. Each battery carries a two year warranty.
PRODUCT DETAILS
- 12V nominal voltage with 225Ah C20 capacity
- Maintenance-free sealed AGM construction with no gas formation in normal use
- Excellent starter function with high current delivery
- Low internal resistance from glass-fibre technology
- Thicker plates for extended lifespan
- Can be installed in almost any position
- Battery poles unscrew to suit every standard battery terminal
- Suitable for medium cyclic use
- Two year warranty
No compatible transducers listed for this product.
Mastervolt Battery Temperature Sensor (15m Cable)
Mastervolt Type D Battery Terminal (M10 / Positive)
Mastervolt Type D Battery Terminal (M10 / Negative)
Mastervolt Type D Battery Terminal (M12 / Positive)
Mastervolt Type D Battery Terminal (M12 / Negative)
Mastervolt Type D Battery Terminal Cover (Red)
Mastervolt Type D Battery Terminal Cover (Black)
General specifications
| Nominal battery voltage | 12 V |
| Nominal battery capacity C20 | 225 Ah |
| Max. charge current | 63 A |
| Terminals | M8 / A-type |
Physical
| Outside dimensions (l x w x h, incl. handles, without automotive terminal post) | 522 x 240 x 224 mm |
| Weight | 63.5 kg |
Technical specifications
| CCA to DIN | 680 A |
| CCA to SAE | 1080 A |
