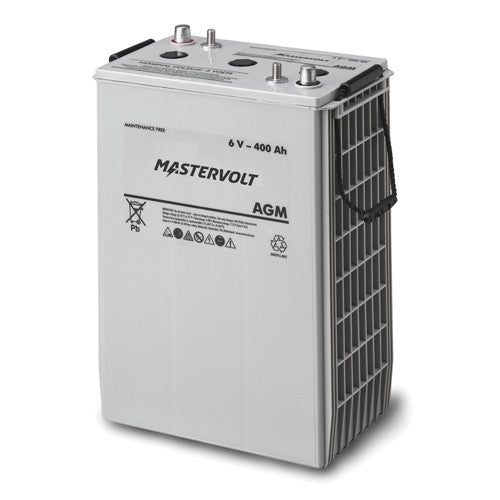

Mastervolt AGM Battery (6V / 400Ah)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt AGM 6/400 is a high-capacity 6 volt, 400Ah absorbed glass mat battery designed for building large battery banks. In an AGM battery the electrolyte is largely absorbed in glass fibre, so the battery is completely maintenance-free and produces no gas under normal use, and it can be installed in almost any position.
Working in 6 volt blocks, the AGM 6/400 makes it easy to configure 12, 24 or 48 volt banks with very high capacity, offering an alternative approach to placement and dimensioning. Each block has a double pole for straightforward installation, and the poles can be unscrewed so the battery works with every standard Mastervolt battery terminal. The AGM 6/400 carries a two year warranty.
PRODUCT DETAILS
- 6V nominal voltage with 400Ah C20 capacity
- Easy configuration of high-capacity 12, 24 or 48 volt battery banks
- Double pole for easy installation
- Maintenance-free sealed AGM construction with no gas formation in normal use
- Offers an alternative solution in placement and dimensioning
- Can be installed in almost any position
- Battery poles unscrew to suit every standard battery terminal
- Two year warranty
No compatible transducers listed for this product.
Mastervolt Battery Temperature Sensor (15m Cable)
Mastervolt Type D Battery Terminal (M10 / Positive)
Mastervolt Type D Battery Terminal (M10 / Negative)
Mastervolt Type D Battery Terminal (M12 / Positive)
Mastervolt Type D Battery Terminal (M12 / Negative)
Mastervolt Type D Battery Terminal Cover (Red)
Mastervolt Type D Battery Terminal Cover (Black)
General specifications
| Nominal battery voltage | 6 V |
| Nominal battery capacity C20 | 400 Ah |
| Max. charge current | 110 A |
| Terminals | A-type + stud M10 |
Physical
| Max. outer dimensions (incl. terminals/grip handles, l x w x h) | 295 x 180 x 428 mm |
| Weight | 53 kg |
Technical specifications
| CCA to DIN | 620 A |
| CCA to SAE | 1100 A |
