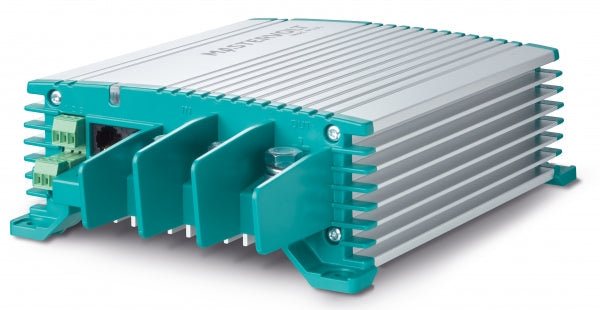

Mastervolt Mac Plus 12/12-50
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mac Plus 12/12-50 is a non-isolated DC-DC charger that maintains a 12 V service battery from a 12 V source at up to 50 A (725 W). It monitors the service battery and compensates for cable voltage drop, using the proven Mastervolt 3-step+ charge algorithm to deliver a quick, safe charge even to completely flat batteries. Engine-run detection ensures the starter battery is never drained.
Ideal for boats, service vans, campers and trucks, it also works with Euro 5/6 smart alternators, supplying constant power even when the alternator is inactive. A fanless aluminium housing keeps the unit silent and well protected (IP23), and it supports flooded, Gel, AGM and Lithium Ion batteries. Several units can be run in parallel for capacities well over 100 A, with MasterBus available for intelligent system monitoring.
This model is no longer part of the current Mastervolt Mac Plus range.
PRODUCT DETAILS
- 12 V input to 12 V output, 50 A / 725 W maximum
- Proven Mastervolt 3-step+ charge algorithm charges flat batteries
- Engine run detection protects the starter battery
- Adjustable current limits to meet Euro 5/6 requirements
- Fanless aluminium housing for silent, robust operation (IP23)
- Suitable for flooded, Gel, AGM and Lithium Ion batteries
- MasterBus compatible for system monitoring
- Parallel operation for charging capacities well over 100 A
No exploded diagram available for this product.
No compatible transducers listed for this product.
General
| Nominal input voltage | 12 V |
| Input voltage range | 10-16 V |
| Max. input current | 50 A |
| Nominal output voltage | 12 V |
| Output voltage | 10-15 V |
| Max. output current | 50 A |
| Output charge current (3-step mode) | 50 A |
| Max. output power | 725 W |
| Nominal output power | 675 W |
| Output voltage stabilisation | 2 % at extremes of temperatures, load and input |
| Output voltage ripple (peak-peak) | max. 1 % |
| Galvanic isolation | No |
| Efficiency | > 95 % (at nom. input voltage, full load); peak 97 % |
| Parallel configuration | Yes |
| Status indicator | Yes, 3-colour LED |
| Alarm contact | Yes, through MasterBus |
| Engine run signal input | Yes (active high/active low) |
| DIP switches | Yes, for basic setup |
Technical
| Battery temperature sensor | Yes, included |
| Battery voltage sense | Yes |
| Charge characteristic | 3-step+ |
| Battery types | flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined |
| No-load consumption | < 2 mA |
| DC consumption | < 5 mA |
| Connections | 3 x M8 terminal for cable diameters of 10-50 mm2; 8-pole screw connection (0.75-1.5 mm2) |
| Temperature range (ambient) | -25 °C to 60 °C; derating > 40 °C |
| Cooling | Natural cooling |
| Protection degree | IP23 |
| Protections | overload, over temperature, DC short circuit, reversed polarity (fuse) |
Physical
| Dimensions (h x w x d) | 255 x 165 x 66 mm |
| Weight | 2 kg |
| Compliance | CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected |
