Mastervolt Mass Battery Charger with 230V Input (24V / 15A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description

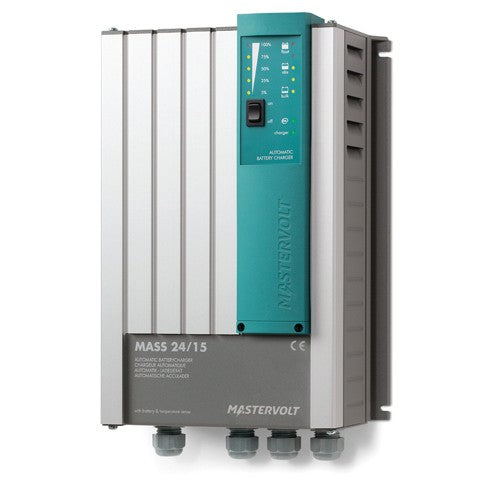

The Mastervolt Mass 24/15-2 is a 24V, 15A battery charger built for the toughest professional, semi-professional and recreational conditions. Housed in a lightweight stainless steel and anodised aluminium casing, with its internal components coated to resist damp and condensation, it is engineered for a long service life even in harsh marine environments. The charger is insensitive to electromagnetic interference from other equipment and delivers a stable, ripple free supply that holds up even when no batteries are connected.
Suitable for every battery type, it charges flat batteries and uses an automatic IUoUo 3-step+ characteristic tuned for Gel, AGM, wet and Lithium Ion banks. A temperature sensor is supplied as standard, and the unit gives full power at ambient temperatures up to 40 degrees C. A second 3A output keeps a starter or auxiliary battery topped up.
The Mass 24/15-2 is fully MasterBus compatible, so it integrates into a wider Mastervolt network over a single cable for central, local or remote monitoring and control. Multiple chargers can be switched in parallel, and the Current Control function prevents fuses from blowing when the input voltage drops.
PRODUCT DETAILS
- Nominal output 24V with a total charge current of 15A at 28.5V
- Second battery output rated at 3A for a starter or auxiliary bank
- Suitable for every battery type and charges flat batteries
- Automatic IUoUo 3-step+ charging for Gel, AGM, wet and Lithium Ion
- Delivered as standard with a temperature sensor
- Lightweight stainless steel and anodised aluminium casing
- Full power at ambient temperatures up to 40 degrees C
- MasterBus compatible for central, local or remote monitoring
- Parallel switching possible using multiple chargers
- Battery charger
- Temperature sensor
No compatible transducers listed for this product.
Mastervolt Battery Temperature Sensor (15m Cable)
Mastervolt MasterBus cable 0.2 metre
Mastervolt MasterBus cable 0.5 metre
Mastervolt MasterBus cable 1 metre
Mastervolt MasterBus cable 3 metre
Mastervolt MasterBus cable 6 metre
Mastervolt MasterBus cable 10 metre
Mastervolt MasterBus terminator
Mastervolt MasterBus USB Interface
Mastervolt MasterBus Modbus Interface
Mastervolt MasterBus NMEA2000 interface
Mastervolt MasterBus Serial Interface
Mastervolt MasterBus Multi Purpose Contact Output
General specifications
| Nominal output voltage | 24 V |
| Total charge current | 15 A at 28.5 V |
| Number of battery outlets | 2 |
| Charge current second output | 3 A |
| Battery bank size | 30-150 Ah |
| Nominal input voltage | 230 V (180-265 V), 50/60 Hz |
| Power supply mode | yes |
| Galvanic isolation | yes |
| Display/read-out | LED display |
| Dimensions, hxwxd | 325 x 220 x 111 mm |
| Weight | 3.3 kg |
| Compliance | CE, ABYC A-31, RRR, RMRS |
Technical specifications
| Charge characteristic | IUoUo, automatic 3-step+ for Gel/AGM/wet/Lithium Ion |
| Charge voltage Bulk | 28.5 V |
| Charge voltage Absorption | 28.5 V |
| Absorption time | 4 hours |
| Charge voltage Float (wet batteries) | 26.5 V |
| Charge voltage Float (Gel/AGM batteries) | 27.6 V |
| Temperature sensor | yes (included) |
| DC voltage compensation | yes |
| Power consumption (DC side) | < 1 mA |
| Full load consumption (230 V AC) | 550 W |
| Current Control function | yes, through MasterBus |
| Power factor control | > 0.95 |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 40 |
| Cooling | vario fan |
| Protection degree | IP23 |
| Protections | over temperature, over load, short circuit, high/low battery voltage |
| MasterBus compatible | yes |
| Charger Status Interface (alarm contact) | yes |
