Mastervolt

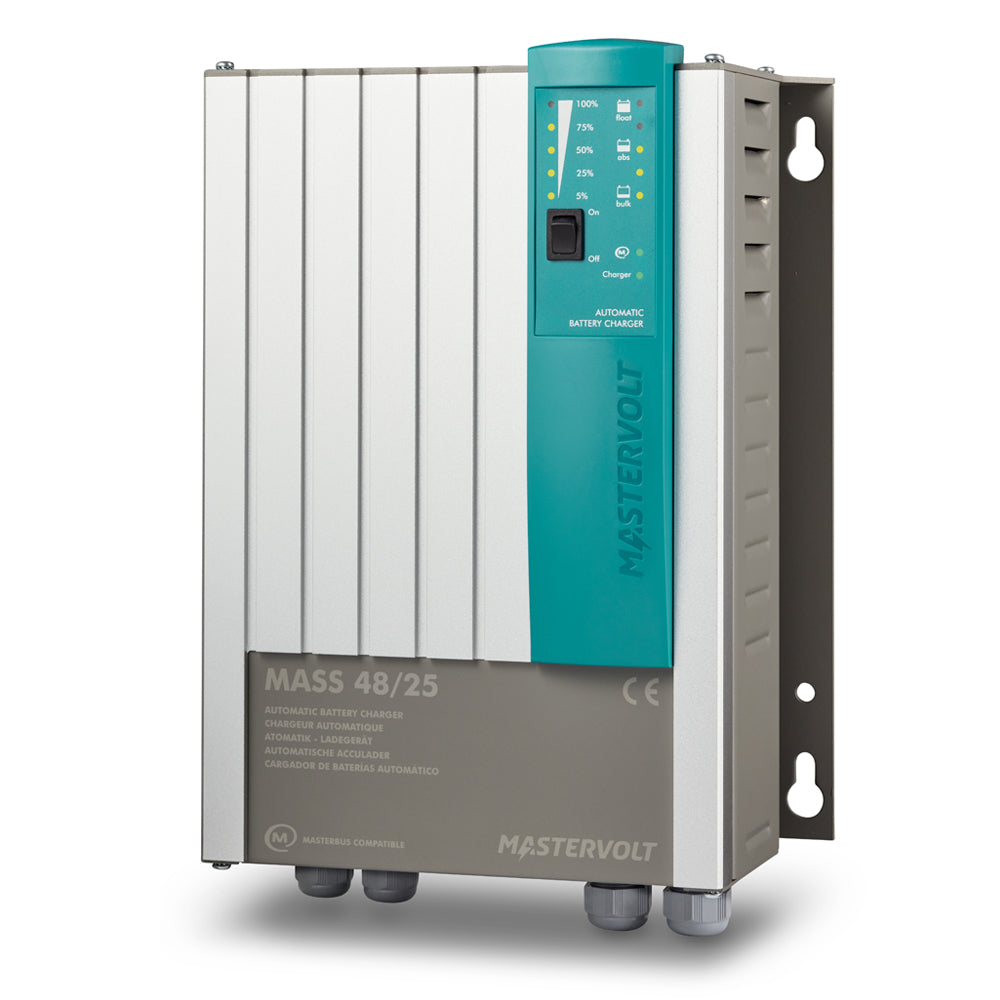

Mastervolt Mass Battery Charger with 230V Input (48V / 25A)
Pickup available at Mercury Yacht Harbour
Usually ready in 2-4 days
Description
The Mastervolt Mass 48/25 is a 48V battery charger that delivers up to 25A from a single-phase 230V AC supply (180 to 265V, 50/60 Hz). Part of the Mass series built for the toughest professional, semi-professional and recreational conditions, it gives reliable round-the-clock output even in extreme environments. It is well suited to 48V banks of 100 to 500 Ah on workboats, larger yachts and off-grid installations.
The charger sits in a lightweight, anodised aluminium casing with coated internal components that resist damp and condensation for a longer service life. An automatic IUoUo three-step+ characteristic charges Gel, AGM, wet and Lithium Ion batteries, while integrated MasterBus connectivity allows central, local or remote monitoring and control over a single cable. The Current Control function protects fuses during voltage dips, and multiple chargers can be switched in parallel for greater capacity.
PRODUCT DETAILS
- 48V nominal output with 25A total charge current at 57V
- Single-phase 230V AC input (180 to 265V, 50/60 Hz)
- Suits 48V battery banks of 100 to 500 Ah, charges all types including Lithium Ion
- IUoUo automatic three-step+ charge characteristic for Gel, AGM, wet and Lithium Ion
- Lightweight anodised aluminium casing with coated internals to resist damp and condensation
- MasterBus compatible for central, local or remote monitoring and control
- Current Control function prevents fuses blowing when the voltage drops
- Parallel switching of multiple chargers and GMDSS compatibility
- Temperature sensor included; compliant with CE, ABYC A-31, RRR and RMRS
- Mass 48/25 battery charger
- Battery temperature sensor
- User manual
No compatible transducers listed for this product.
Mastervolt Battery Temperature Sensor (15m Cable)
Mastervolt MasterBus cable 0.2 metre
Mastervolt MasterBus cable 0.5 metre
Mastervolt MasterBus cable 1 metre
Mastervolt MasterBus cable 3 metre
Mastervolt MasterBus cable 6 metre
Mastervolt MasterBus cable 10 metre
Mastervolt MasterBus terminator
Mastervolt MasterBus USB Interface
Mastervolt MasterBus Modbus Interface
Mastervolt MasterBus NMEA2000 interface
Mastervolt MasterBus Serial Interface
Mastervolt MasterBus Multi Purpose Contact Output
General specifications
| Nominal output voltage | 48 V |
| Total charge current | 25 A at 57 V |
| Number of battery outlets | 1 |
| Battery bank size | 100-500 Ah |
| Nominal input voltage | 230 V (180-265 V), 50/60 Hz |
| Power supply mode | yes |
| Galvanic isolation | yes |
| Display/read-out | LED display |
| Dimensions, hxwxd | 340 x 261 x 130 mm (13.4 x 10.3 x 5.1 inch) |
| Weight | 4.6 kg (10.1 lb) |
| Compliance | CE, ABYC A-31, RRR, RMRS |
Technical specifications
| Charge characteristic | IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion |
| Charge voltage Bulk | 57 V |
| Charge voltage Absorption | 57 V |
| Absorption time | 4 hours |
| Charge voltage Float (wet batteries) | 53 V |
| Charge voltage Float (Gel/AGM batteries) | 55.2 V |
| Temperature sensor | yes (included) |
| DC voltage compensation | yes |
| Power consumption (DC side) | < 1 mA |
| Full load consumption (230 V AC) | 1800 W |
| Current Control function | yes, through MasterBus |
| Power factor control | > 0.95 |
| Temperature range (ambient temp.) | -25 °C to 80 °C, derating > 40 |
| Cooling | vario fan |
| Protection degree | IP23 |
| Protections | over temperature, over load, short circuit, high/low battery voltage |
| MasterBus compatible | yes |
| Charger Status Interface (alarm contact) | yes |
